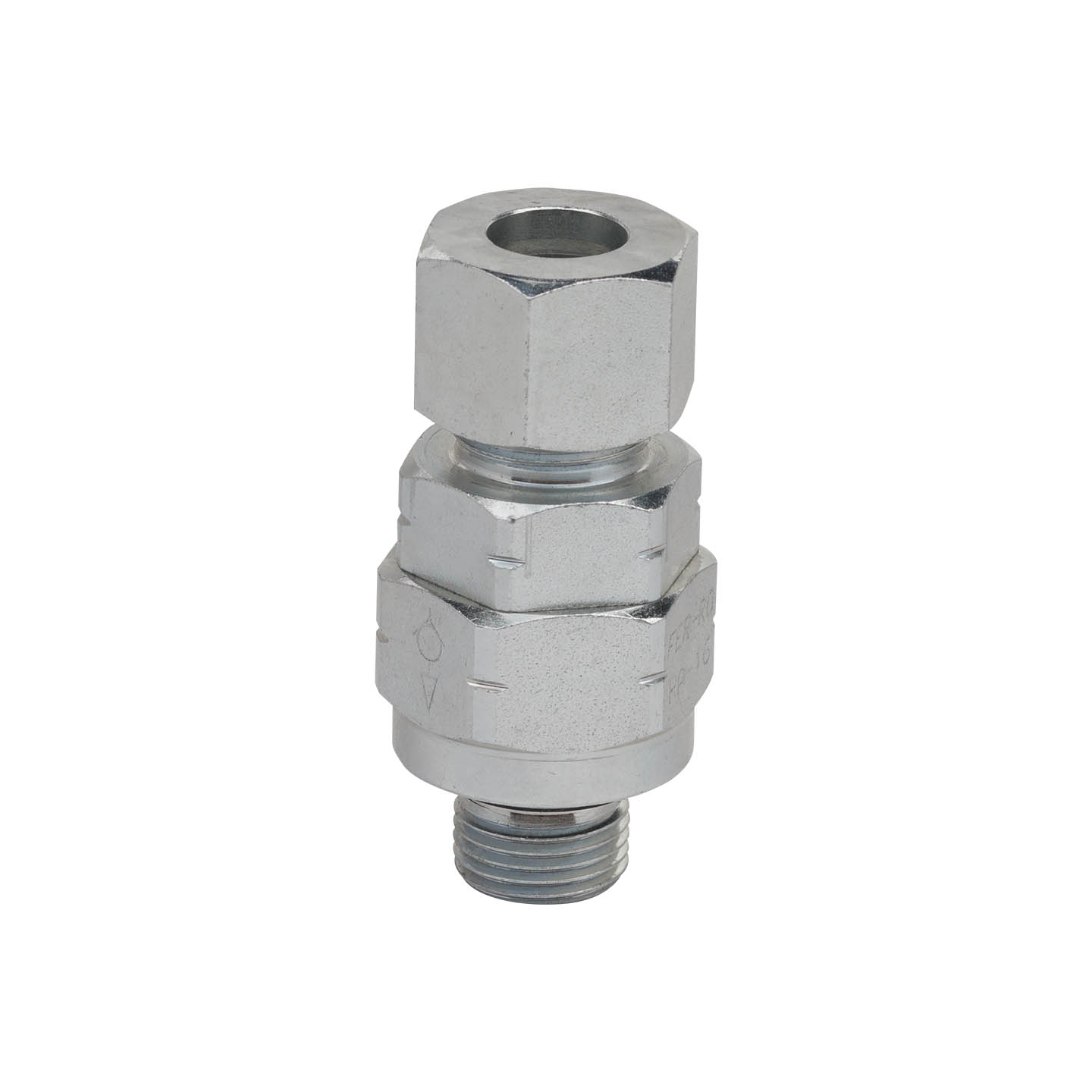

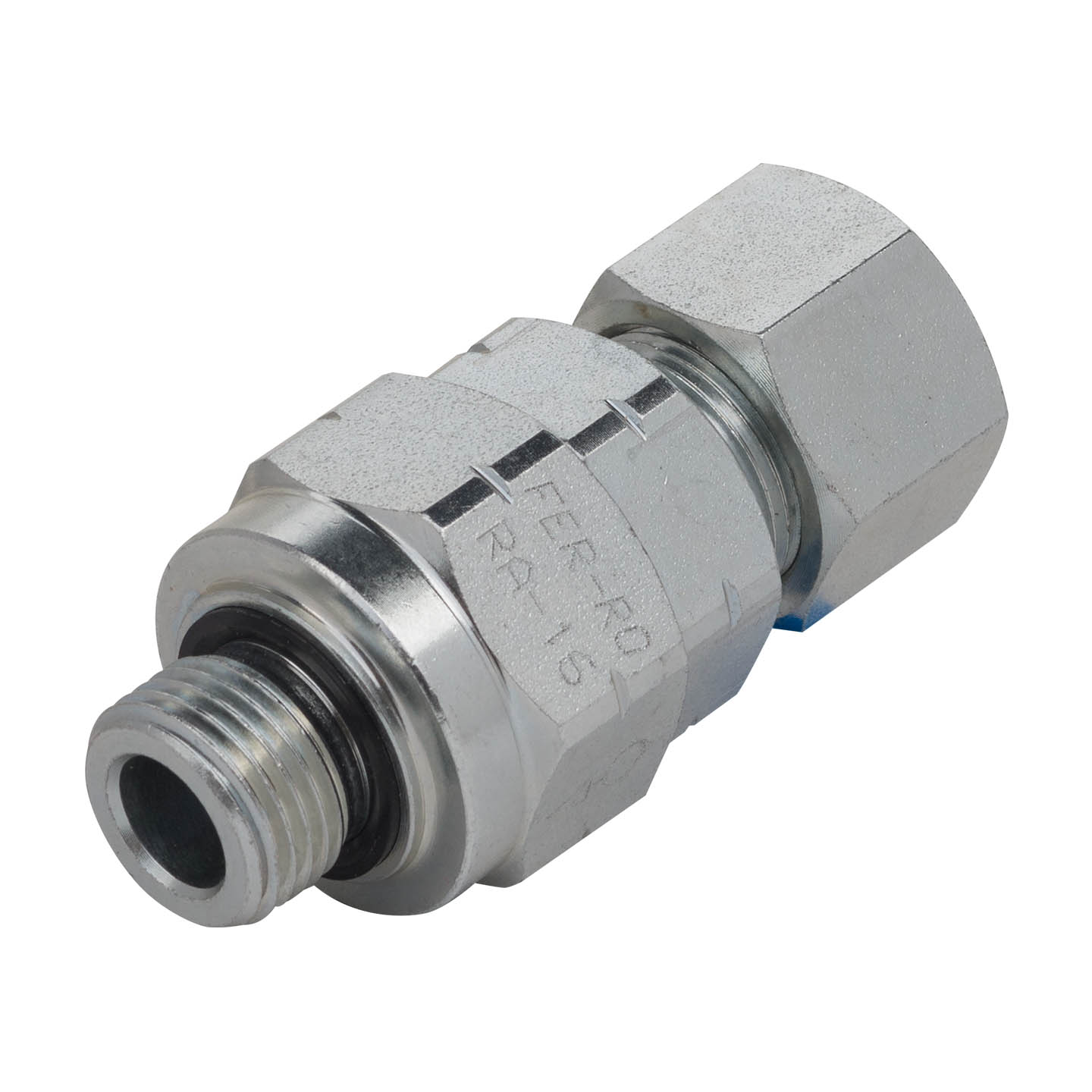

CVPPT SERIES PIPE TYPE CONNECTION CHECK VALVES (WITH POPPET)

CVPPT Series Hydraulic Pipe Type Connection Check Valves provide free flow in one direction while the opposite direction is shut-off. They are also used for by-pass of throttle points, for flow prevention in one direction, for discharging valve and for hold valve. CVPPT Series Pipe Type Connection Check Valves
provides opportunity to connect the valve without a need for quick couplers.
CVPPT Series Hydraulic Pipe Type Connection Check Valves with the help of steel insert, it allows short-term (seconds) opening and closing under high pressure, no leakage and no deformation in the form.

Material  Carbon Steel
Thread Size  BSP-Metric / Metric - Metric
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating Zinc Plating (Cr III Passivation)
Applications Construction, production, agriculture,
  mobile hydraulic, general industries

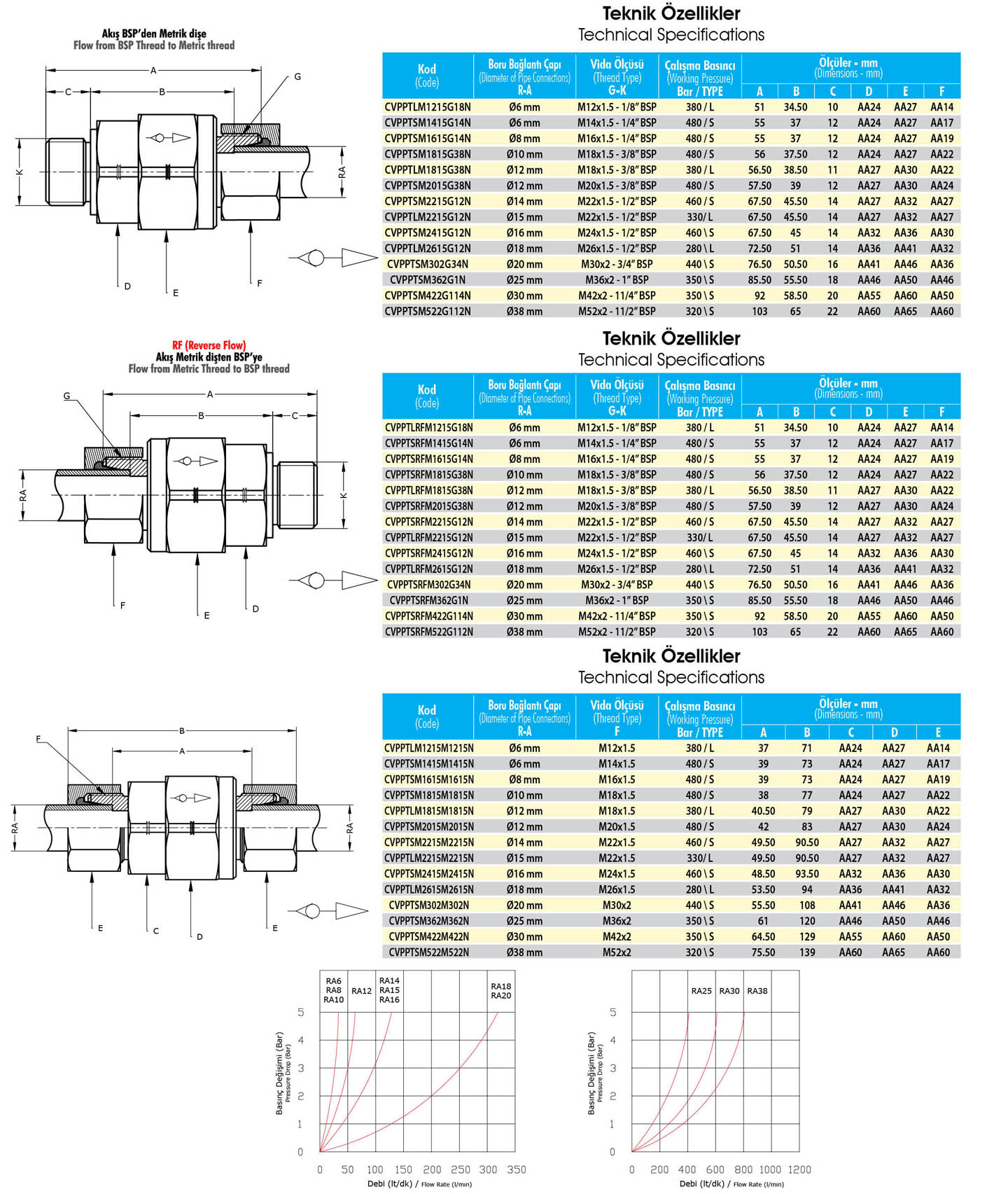

TECHNICAL DATA
PHOTOS
