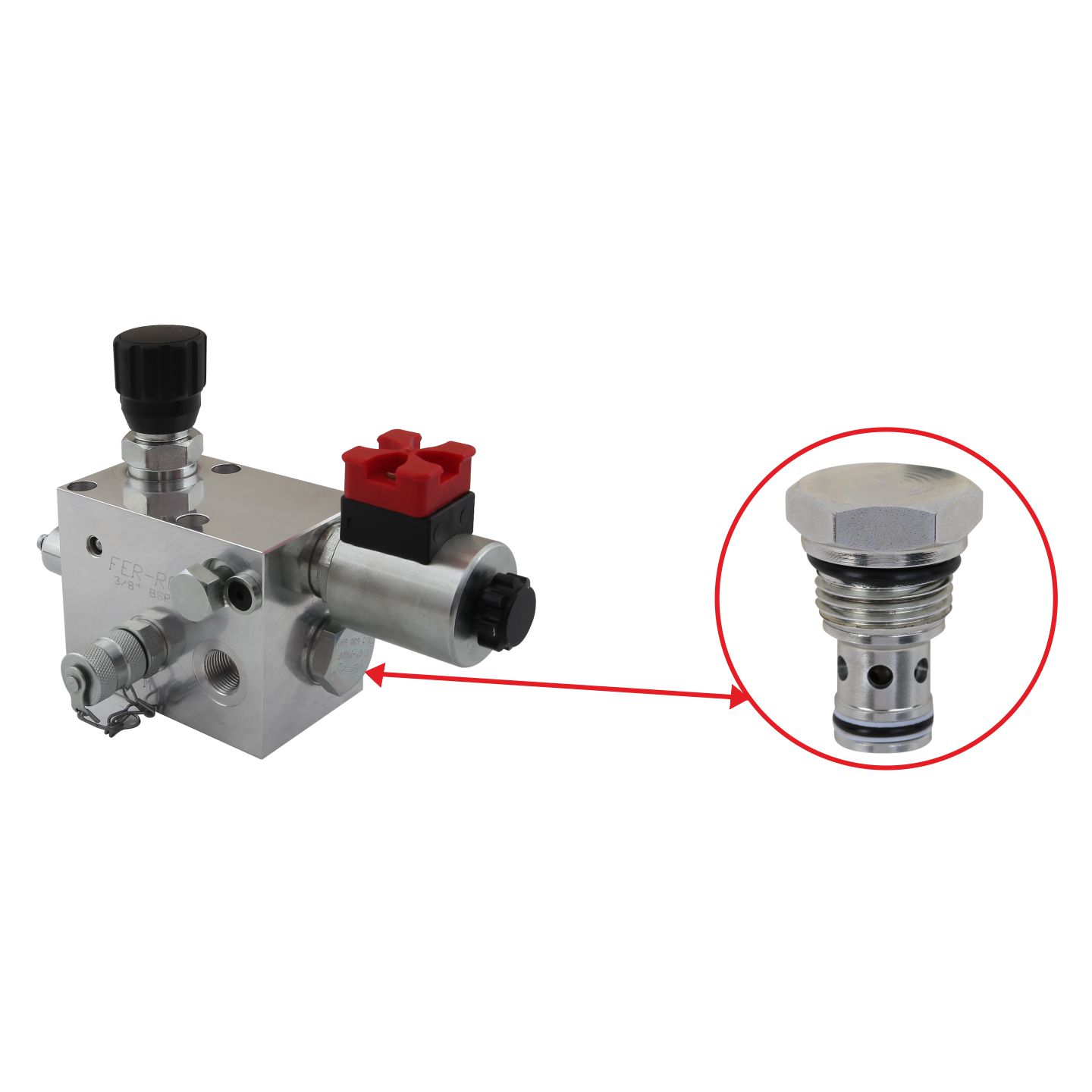

CVCRT SERIES CARTRIDGE TYPE BLOCK CONNECTION CHECK VALVES

CVCRT series is a two-way valve type that allows the hydraulic fluid to flow in one direction (from 1 to 2) along the line. In the bypass of the point, in one direction blocking of the fluid, the tank is used as a discharge valve and as a pre-tension valve in order to produce a certain counter-pressure in the circuits.



Material  Carbon Steel
Thread Size  BSP (Upon Request: NPT, Metric)
Opening Pressure  0,5 Bar
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Upon Request  VITON & High temperature resistant special spring (-30 °C & +225 °C)
  Special spring for optional 6-8 Bar opening pressure
Applications Construction, production, agriculture, mobile hydraulic,
  general industries

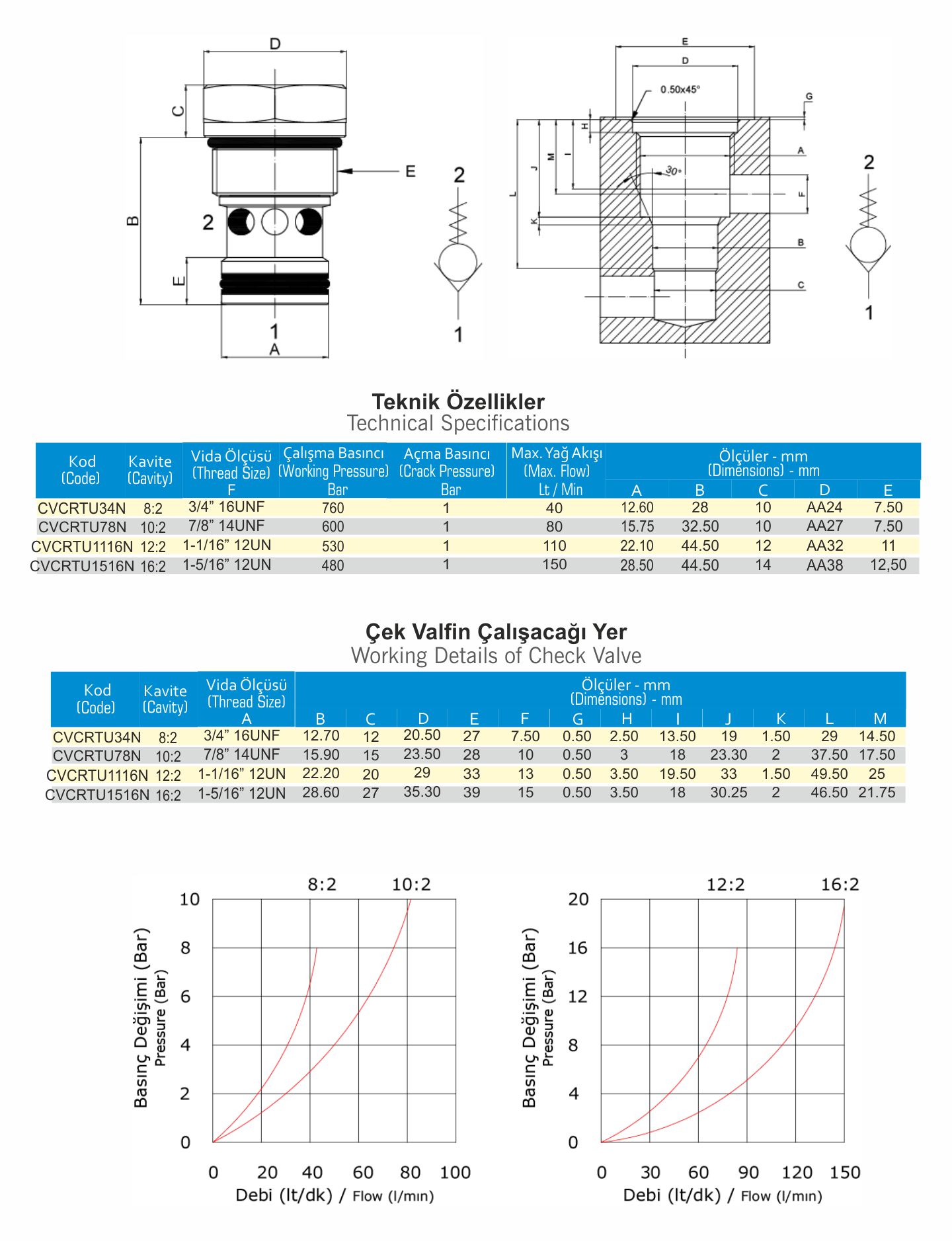

TECHNICAL DATA

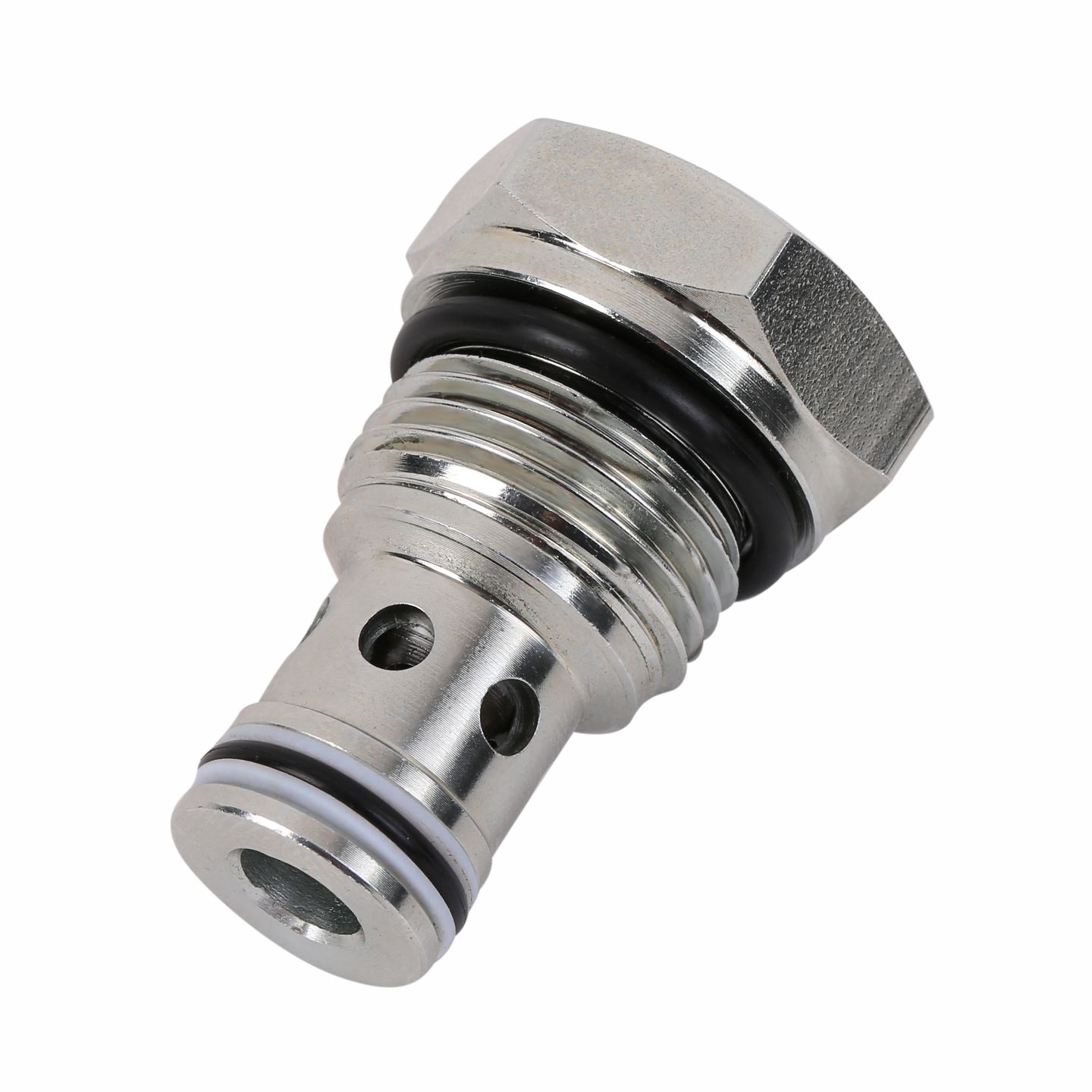

PHOTOS
