CVPHP SERIES HYDRAULIC HIGH PRESSURE POPPET TYPE CHECK VALVES

CVPHP Series Hydraulic High Pressure Poppet Type Check Valves provide free flow in one direction while the opposite direction is shut-off.
They are also used for by-pass of throttle points, for flow prevention in one direction, for
discharging valve and for hold valve. Opening pressure of CVPHP Series Hydraulic High
Pressure Poppet Type Check Valves is 0,5 Bar.
CVPHP Series Hydraulic High Pressure Poppet Type Check Valves with the help of steel insert, it allows short-term (seconds) opening and closing under high pressure, no leakage and no deformation in the form.

Material  Carbon Steel
Thread Size  BSP (Upon Request: NPT, Metric)
Opening Pressure  0,5 Bar
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Applications Special spring for optional 6-8 Bar opening pressure
  Construction, production, agriculture, mobile hydraulic,
  general industries

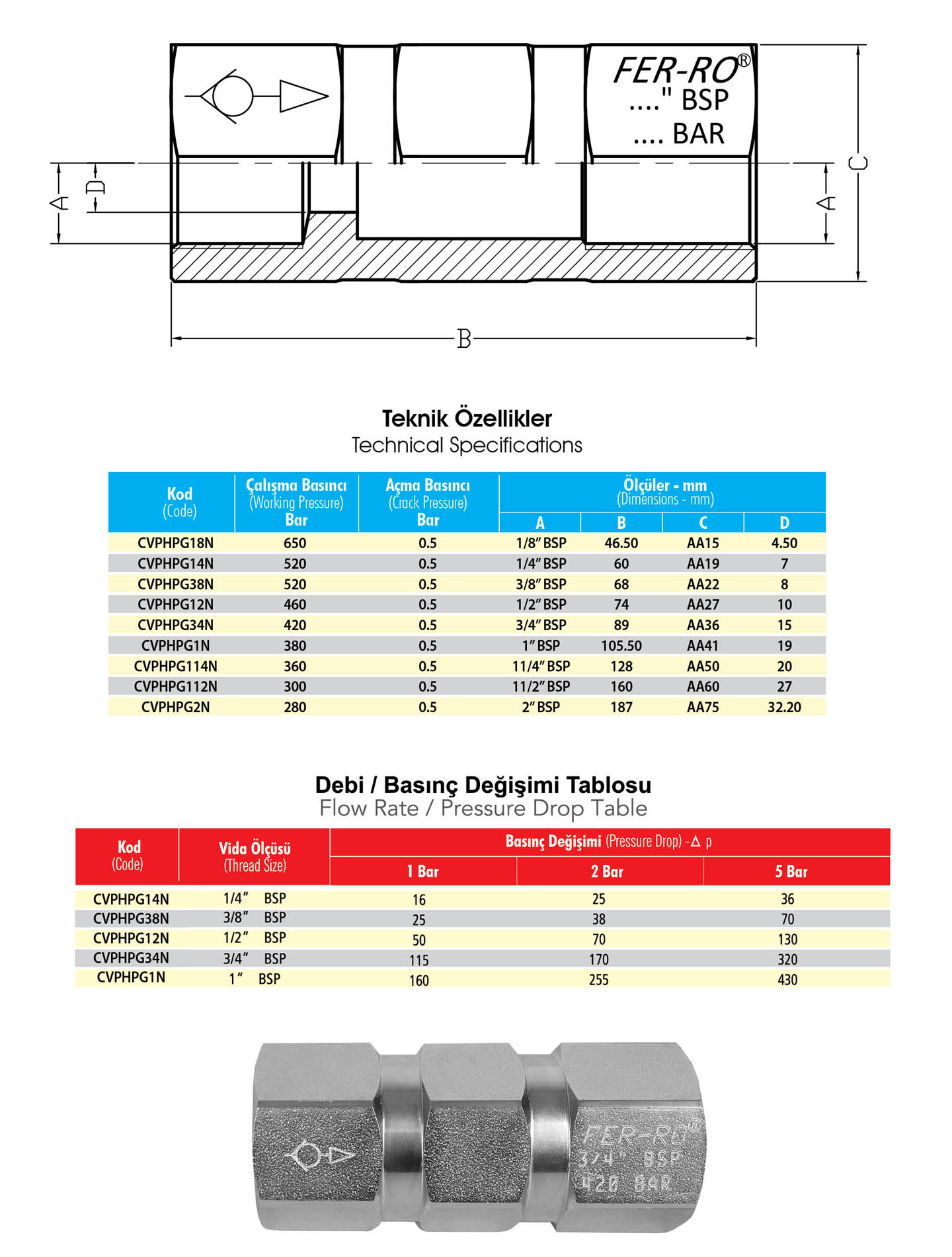

TECHNICAL DATA

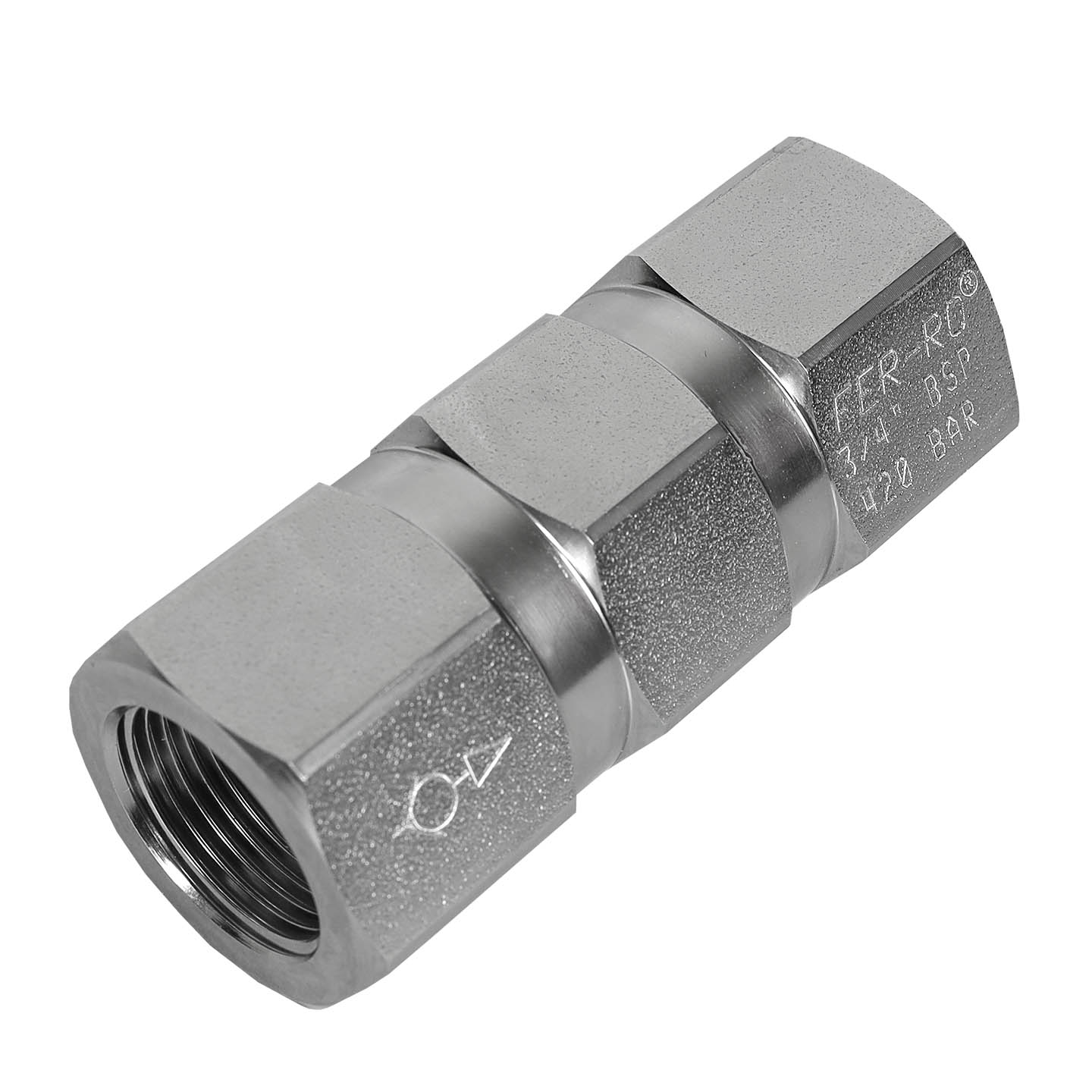

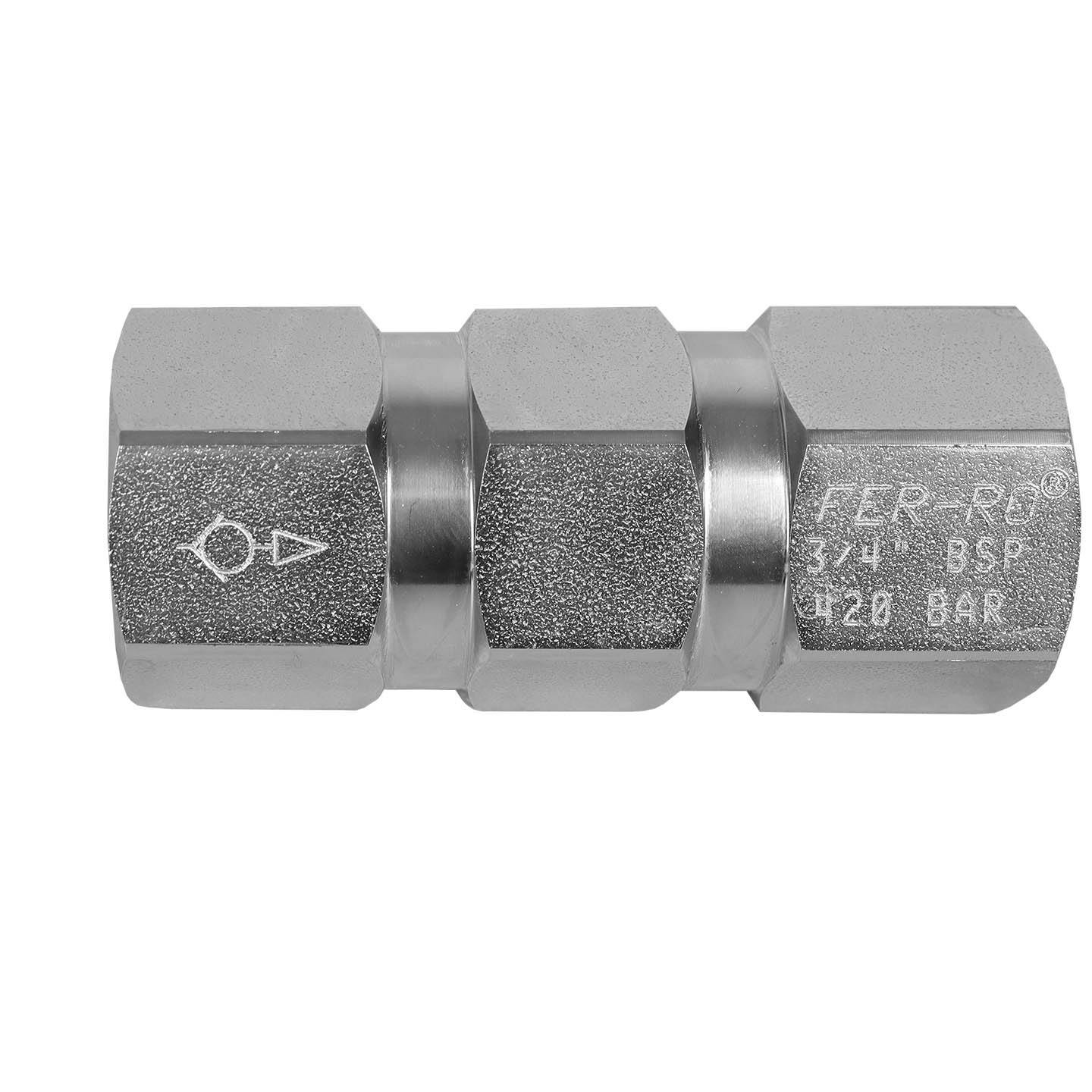

PHOTOS
