CV SERIES HYDRAULIC CHECK

CV Series Hydraulic Check Valves provide free flow in one direction while the opposite direction is shut-off.
They are also used for by-pass of throttle points, for flow prevention in one direction, for discharging
Valve and for hold valve.
Opening pressure of CV Series Hydraulic Check Valves is 0,5 Bar. Upon request, 6-8 Bar opening
Pressure is optional.



Material  Carbon Steel
Thread Size  BSP (Upon Request: NPT, Metric)
Opening Pressure  0,5 Bar (6-8 Bar opening pressure is optional, open request)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Upon Request  VITON & High temperature resistant special spring (-30 °C & +225 °C)
Applications Special spring for optional 6-8 Bar opening pressure
  Construction, production, agriculture, mobile hydraulic,
  general industries

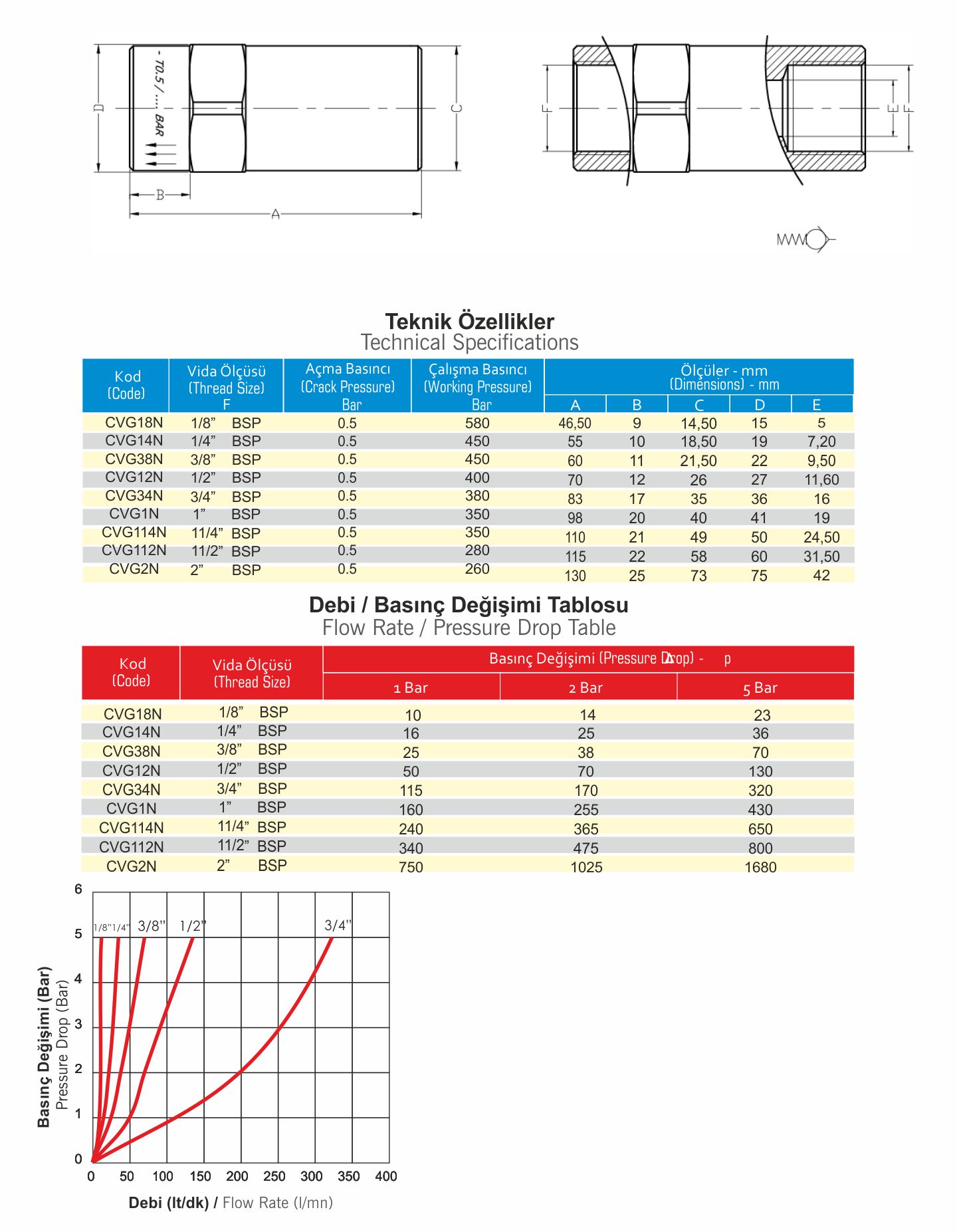

TECHNICAL DATA

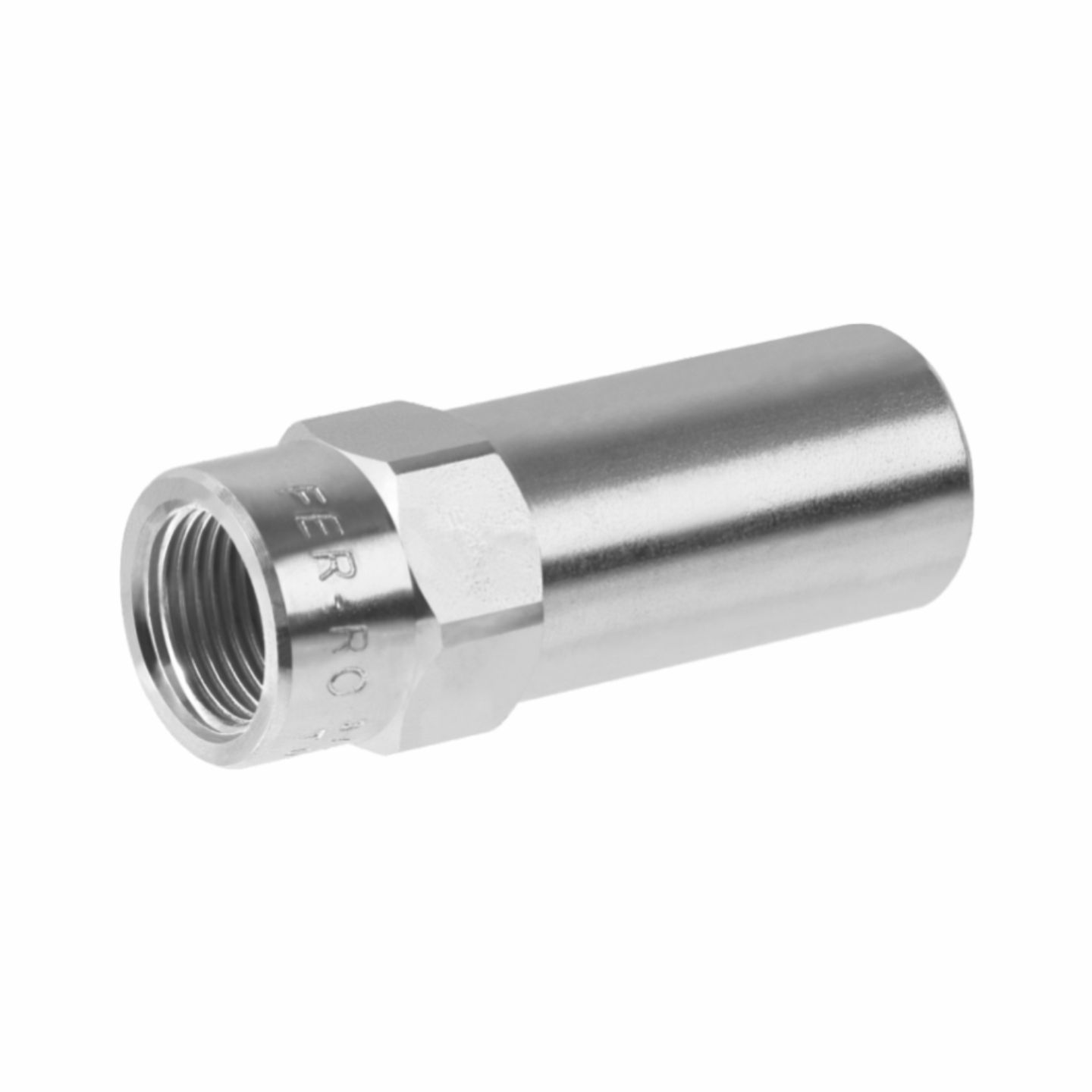

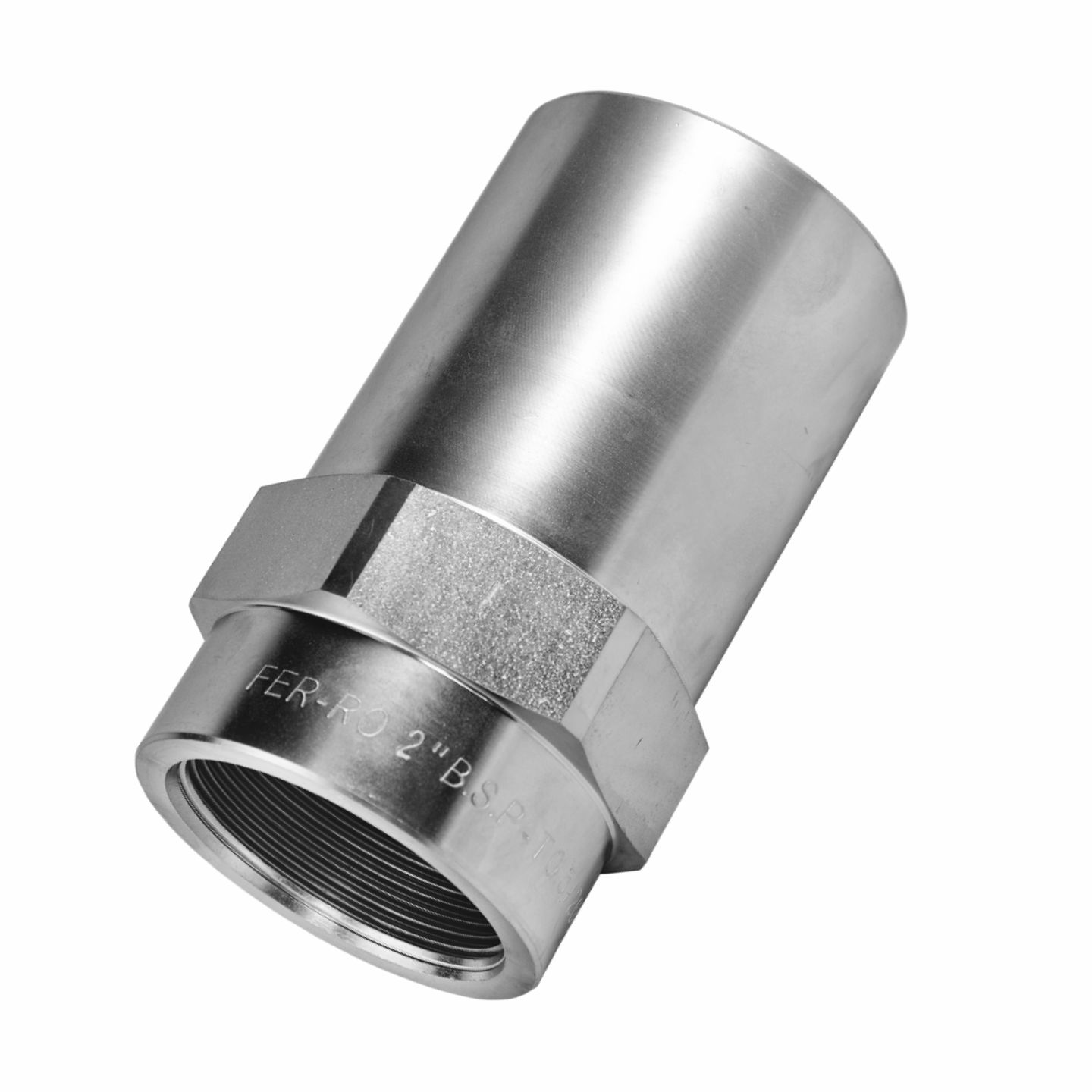

PHOTOS
