CVPT SERIES PIPE TYPE CONNECTION CHECK VALVES

CVPT Series Hydraulic Pipe Type Connection Check Valves provide free flow in one direction while the opposite direction is shut-off.
They are also used for by-pass of throttle points, for flow prevention in one direction, for discharging valve and for hold valve. CVPT Series Pipe Type Connection Check Valves provides opportunity to connect the valve withou a need for quick couplers.



Material  Carbon Steel
Thread Size  BSP-Metric / Metric - Metric
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating Zinc Plating (Cr III Passivation)
Applications Construction, production, agriculture,
  mobile hydraulic, general industries

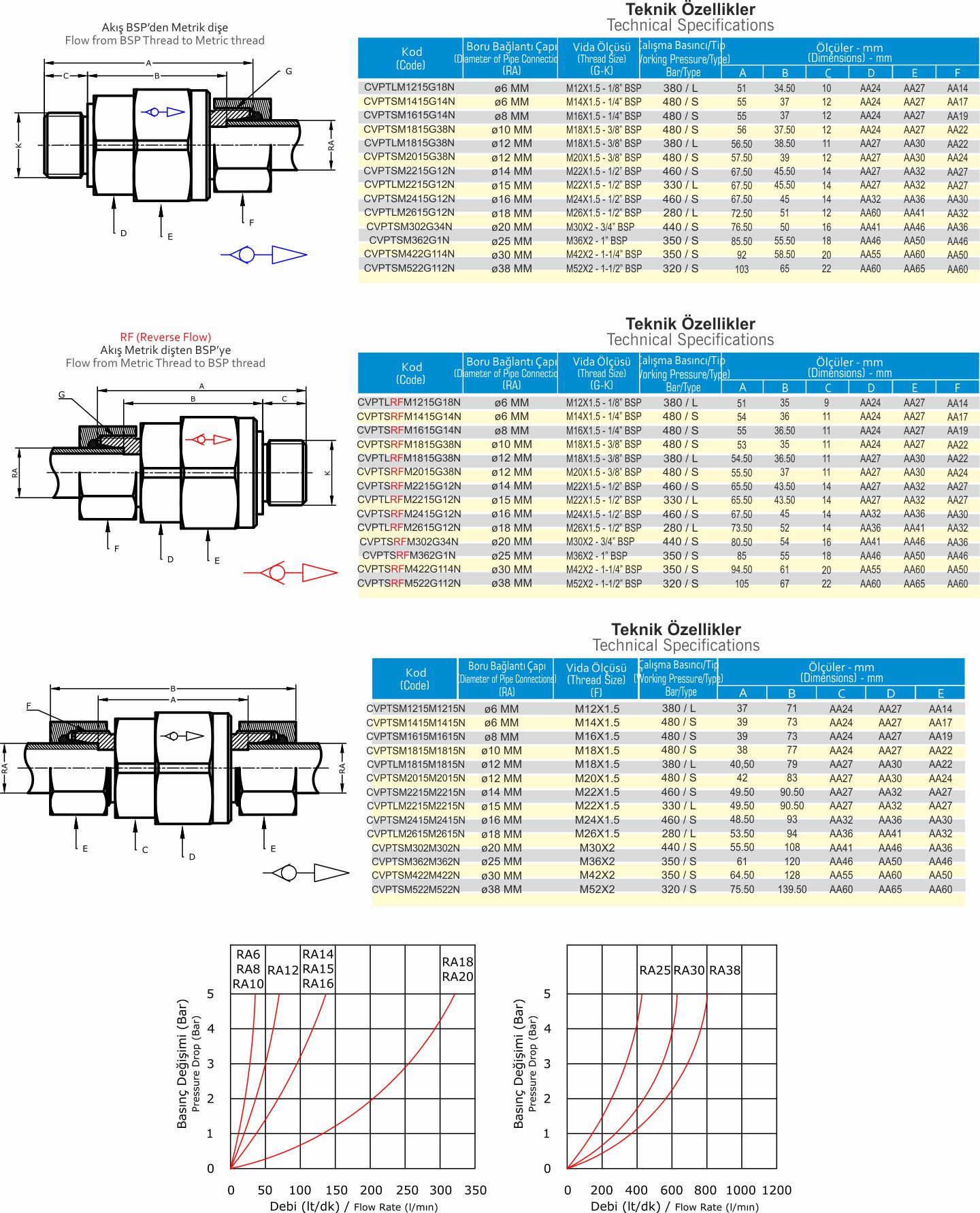

TECHNICAL DATA

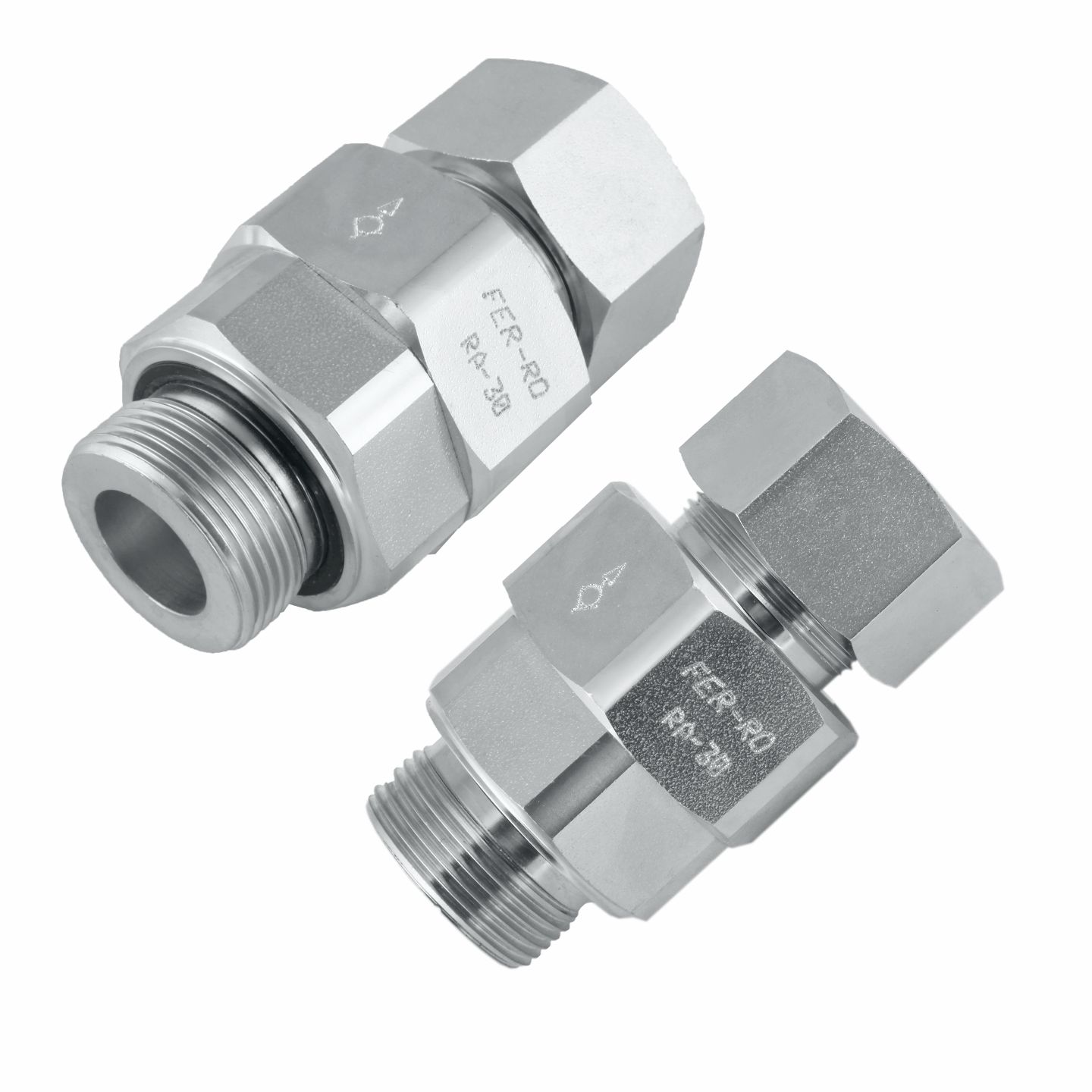

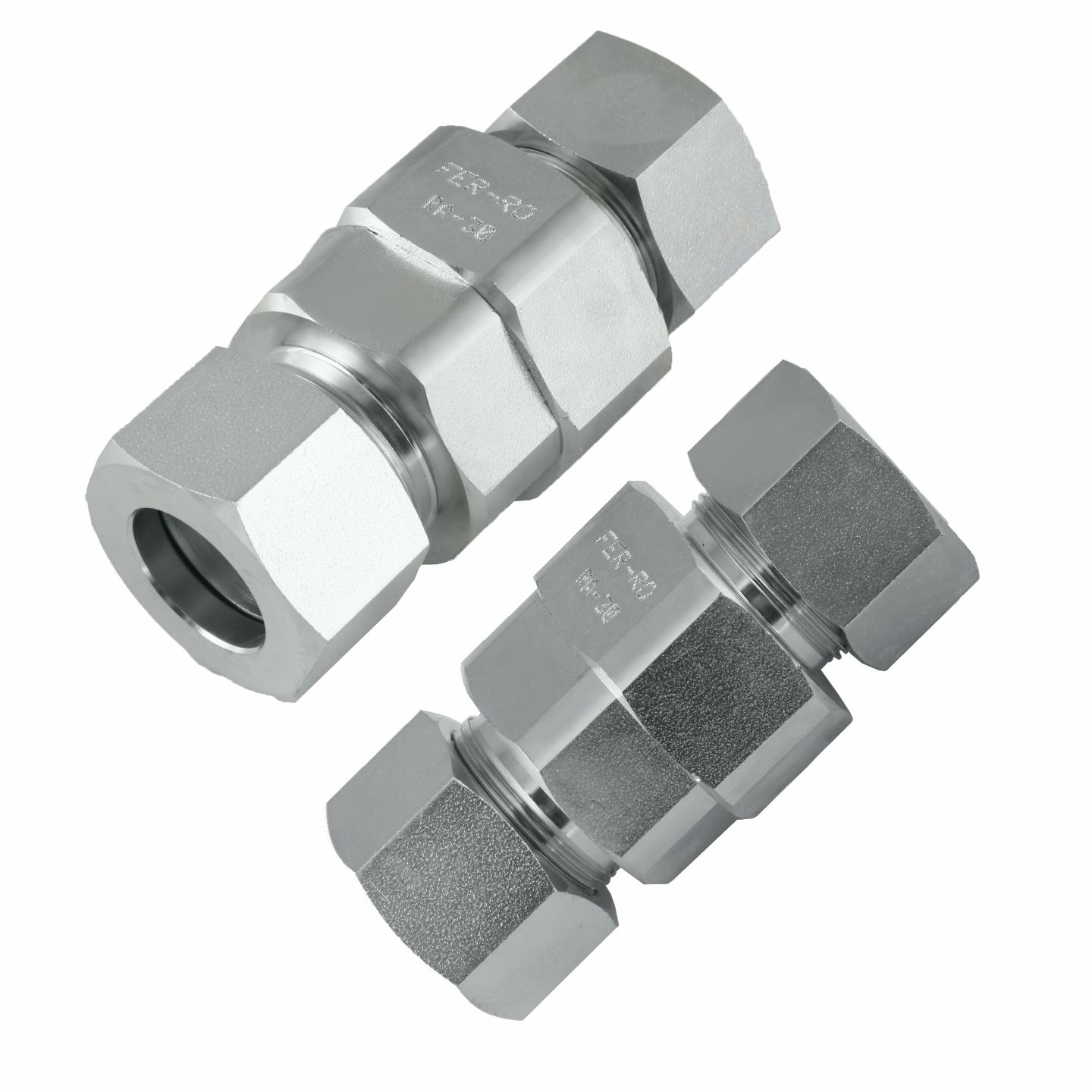

PHOTOS
