CVP SERIES HYDRAULIC POPPET TYPE CHECK VALVES

CVP Series Hydraulic Check Valves provide free flow in one direction while the opposite direction is shut-off.
They are also used for by-pass of throttle points, for flow prevention in one direction,
For discharging valve and for hold valve.
For CVP Series Check Valves, one end is male thread, while other end is female thread.
Opening pressure of CVP Series Hydraulic Check Valves is 0,5 Bar. Upon request, 6-8
Bar opening pressure is optional.



Material  Carbon Steel
Thread Size  BSP (Upon Request: NPT, Metric)
Opening Pressure  0,5 Bar (6-8 Bar opening pressure is optional, open request)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating Zinc Plating (Cr III Passivation)
Heat Treatment  Internal parts
Upon Request VITON & High temperature resistant special spring (-30 °C &+225 °C)
Applications Special spring for optional 6-8 Bar opening pressure
  Construction, production, agriculture, mobile hydraulic,
  general industries

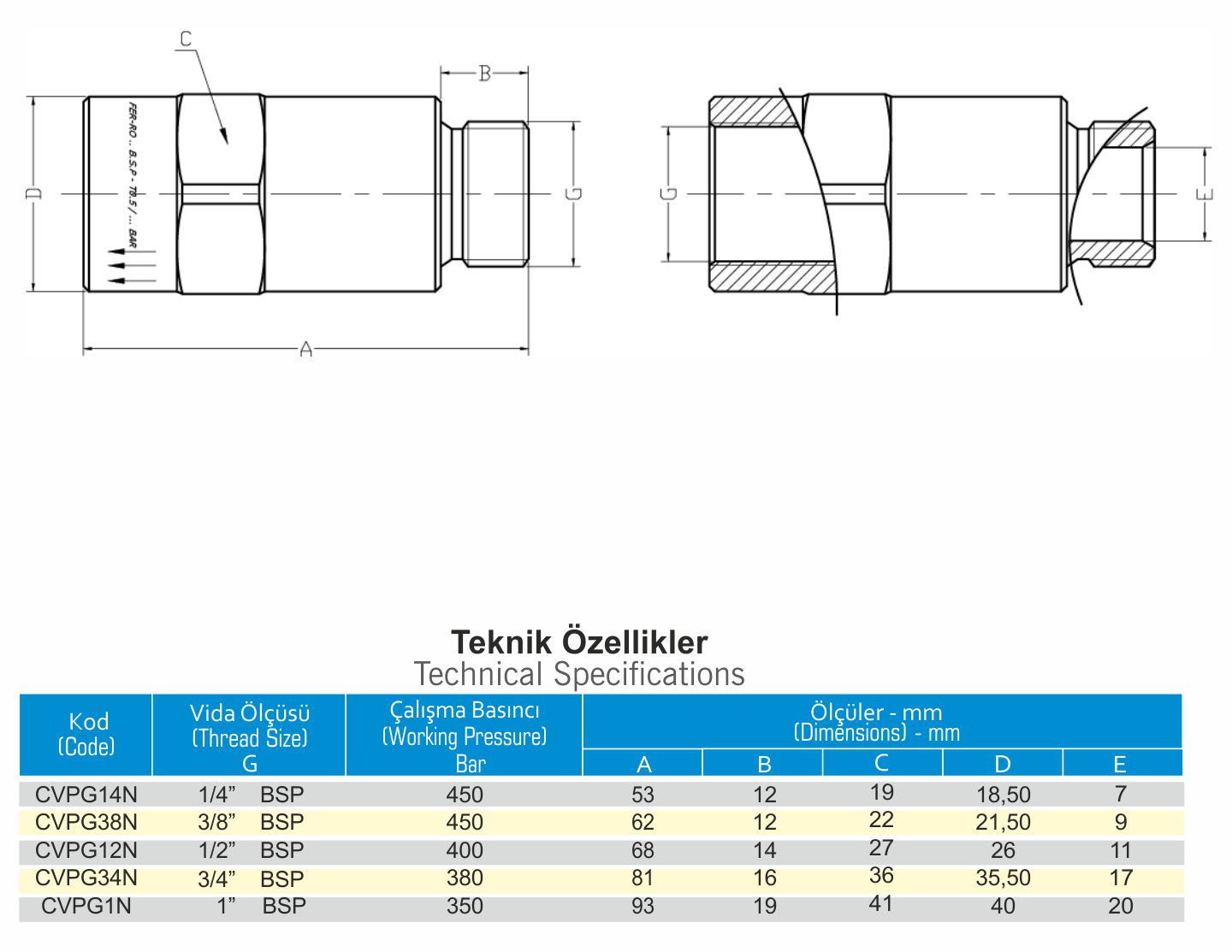

TECHNICAL DATA

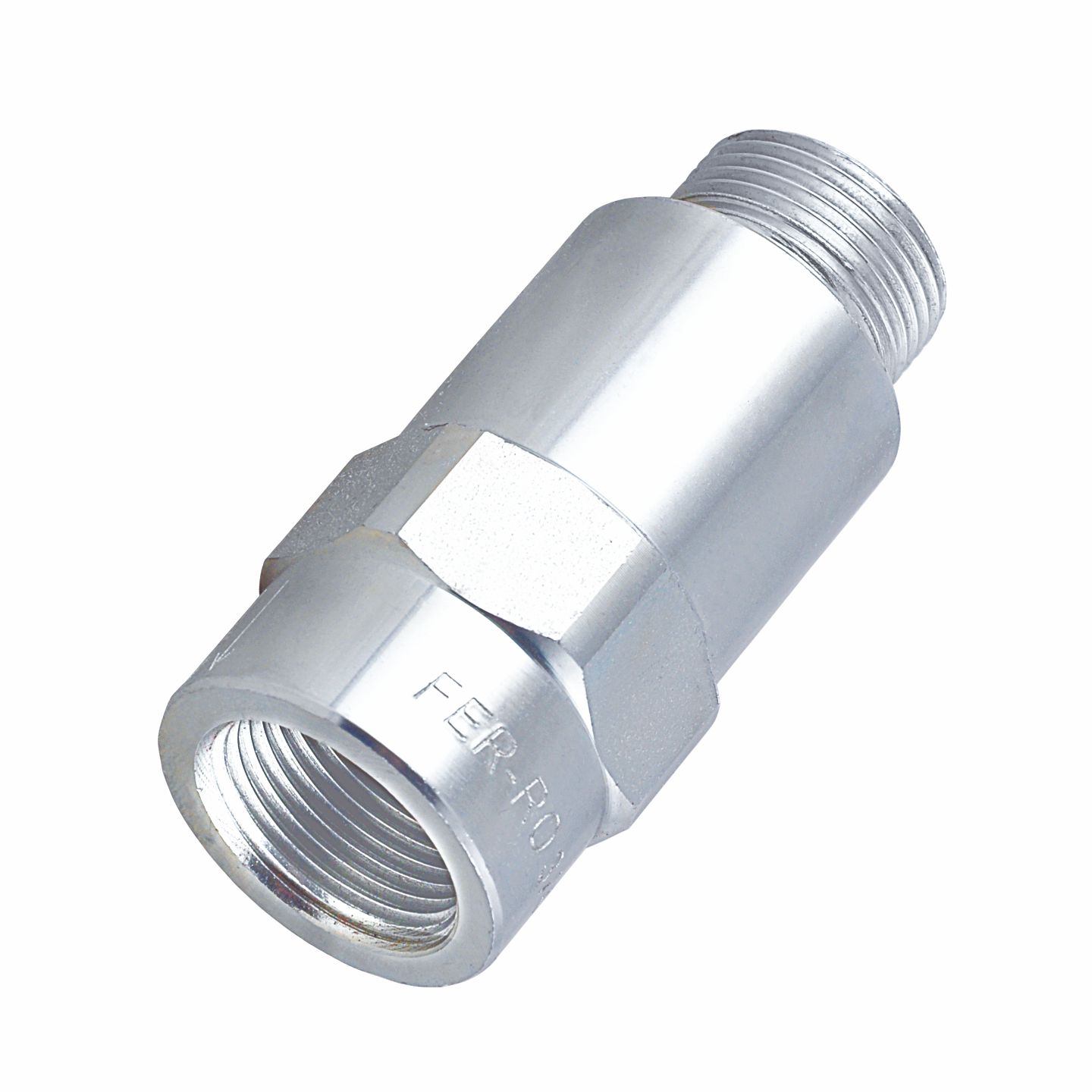

PHOTOS
