CVUHP SERIES HYDRAULIC ULTRA HIGH PRESSURE INLINE TYPE CHECK VALVES (HIGH HEAT RESISTANT)

CVUHP Series Hydraulic Ultra High Pressure Inline Type Check Valves provide free flow in one direction while the opposite direction is shut-off.
They are also used for by-pass of throttle points, for flow prevention in one direction, for discharging valve and for hold valve.
Opening pressure of CVUHP Series Hydraulic Ultra High Pressure Inline Type Check Valves is 0,5 Bar.



Material  Carbon Steel
Thread Size  BSP (Upon Request: NPT, Metric)
Opening Pressure  0,5 Bar
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Upon Request  VITON & High temperature resistant special spring (-30 °C & +225 °C)
Applications Construction, production, agriculture, mobile hydraulic,
  general industries

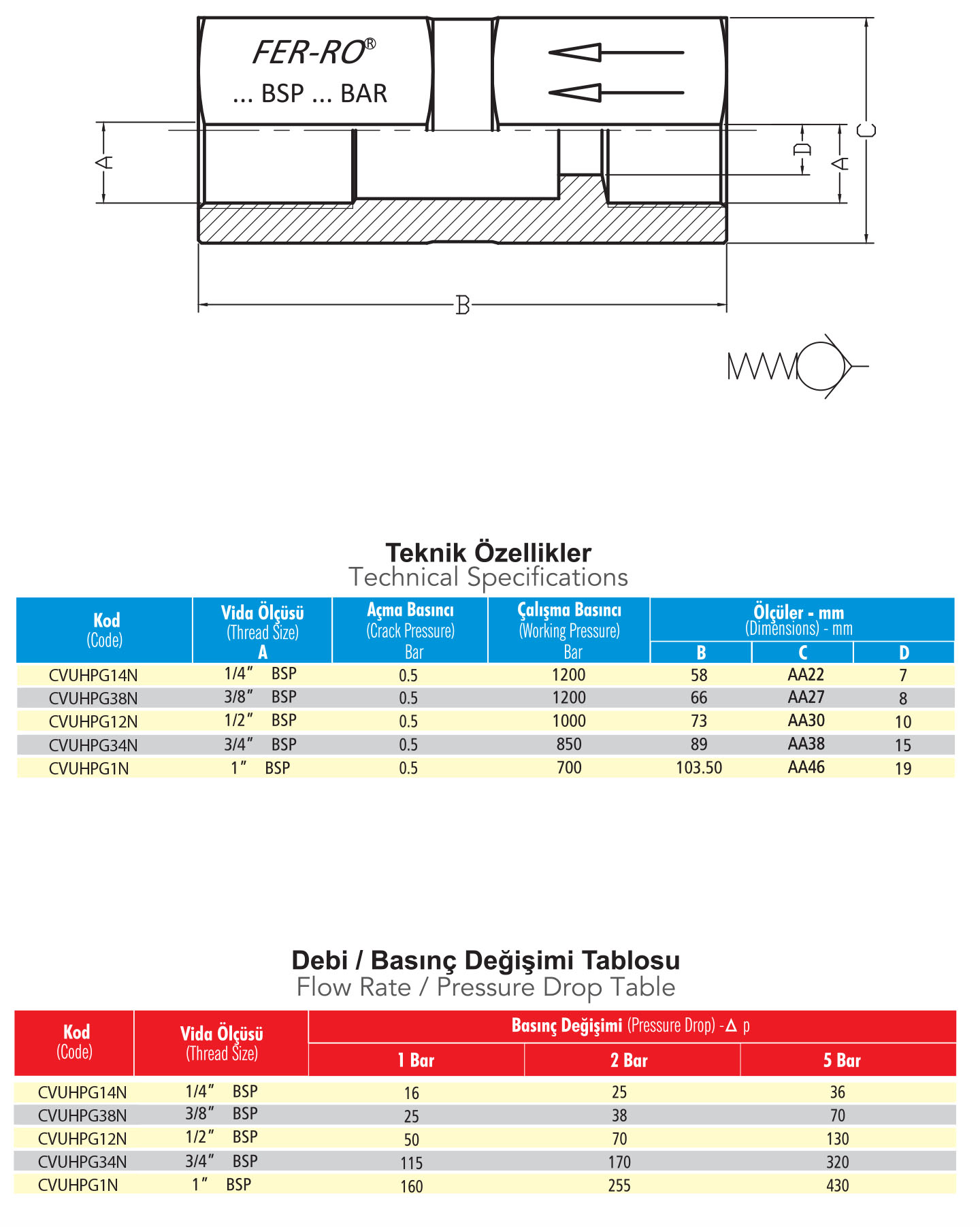

TECHNICAL DATA

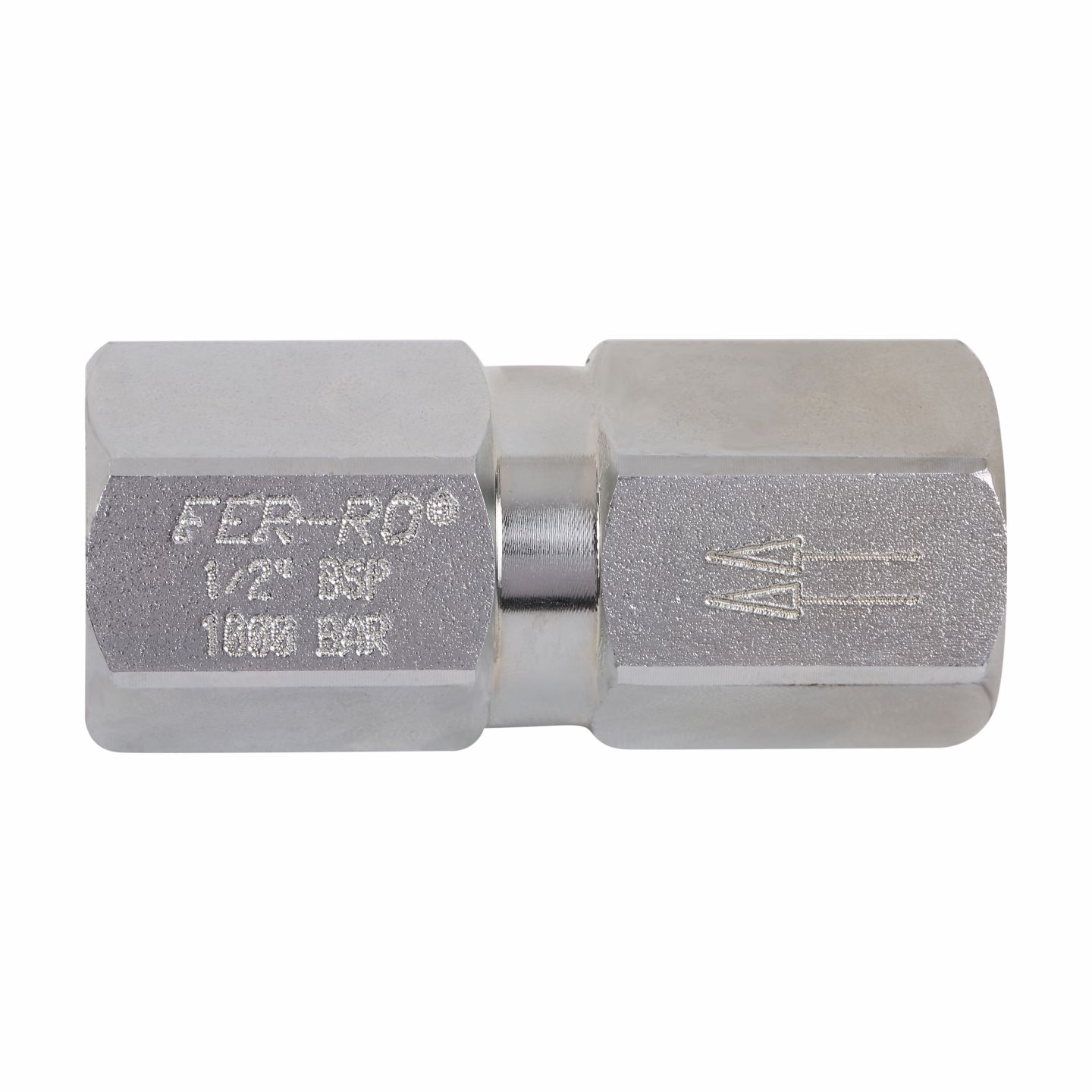

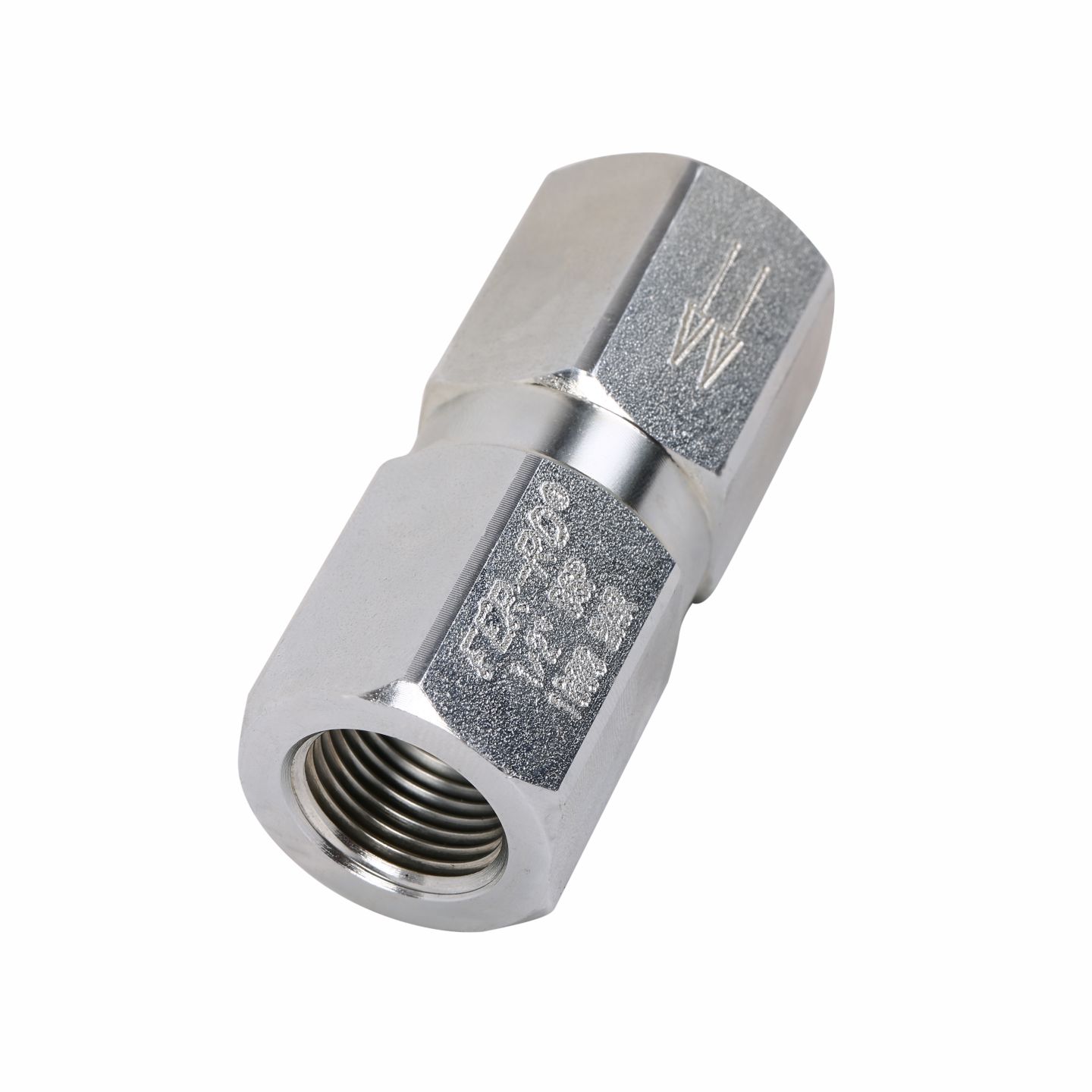

PHOTOS
