CVSS SERIES AISI 316-L STAINLESS STEEL CHECK VALVES

CVSS Series Check Valves are completely made of AISI 316-L stainless steel row material have an excellent
Resistance to all kind of chemical and corrosion.
CVSS Series Check Valves are also used for by-pass of throttle points, for flow prevention in one direction, for
discharging valve and for hold valve.
Opening pressure of CVSS Series Hydraulic Check Valves is 0,5 Bar. Upon request, 6-8 Bar opening
Pressure is optional.



Material  AISI 316-L stainless steel
Thread Size  BSP (Upon Request: NPT, Metric)
Opening Pressure  0,5 Bar (6-8 Bar opening pressure is optional, open request)
Sealing  VITON
Working Temperature -30 °C and +225 °C
Upon Request  EPDM ( For steam application)
  Special spring for optional 6-8 Bar opening pressure
Applications Marine, food, pharmacy, medical, chemical, irrigation, paper, paint,
  textile, gas and aviation

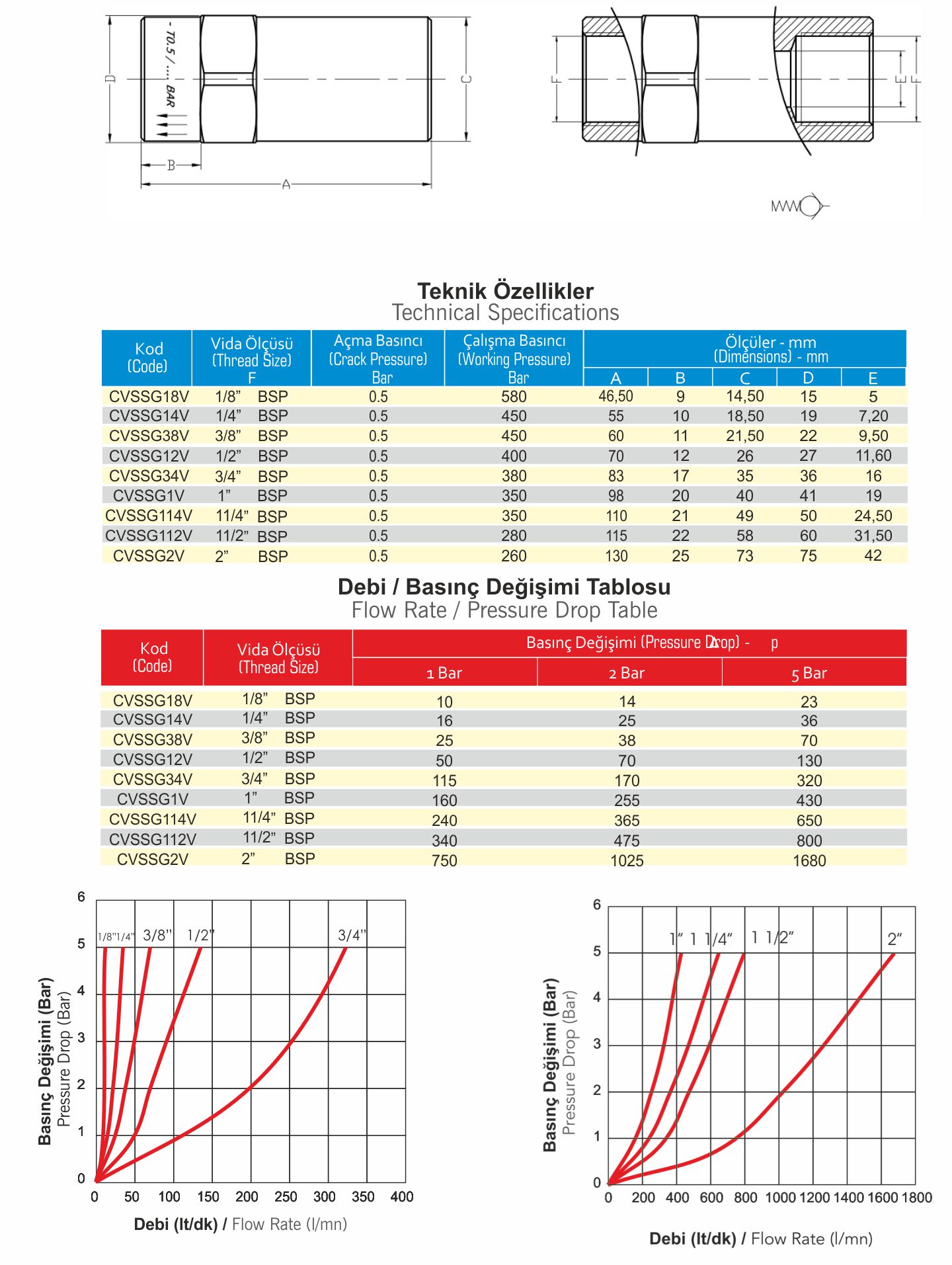

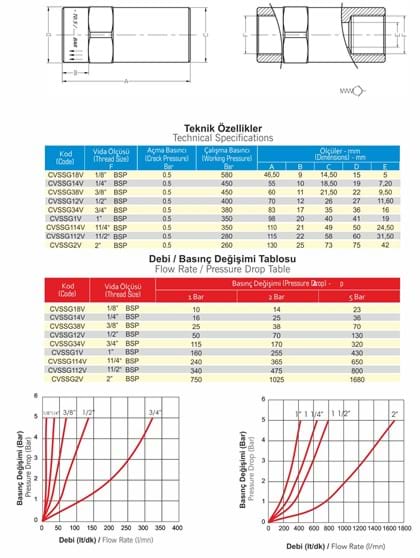

TECHNICAL DATA

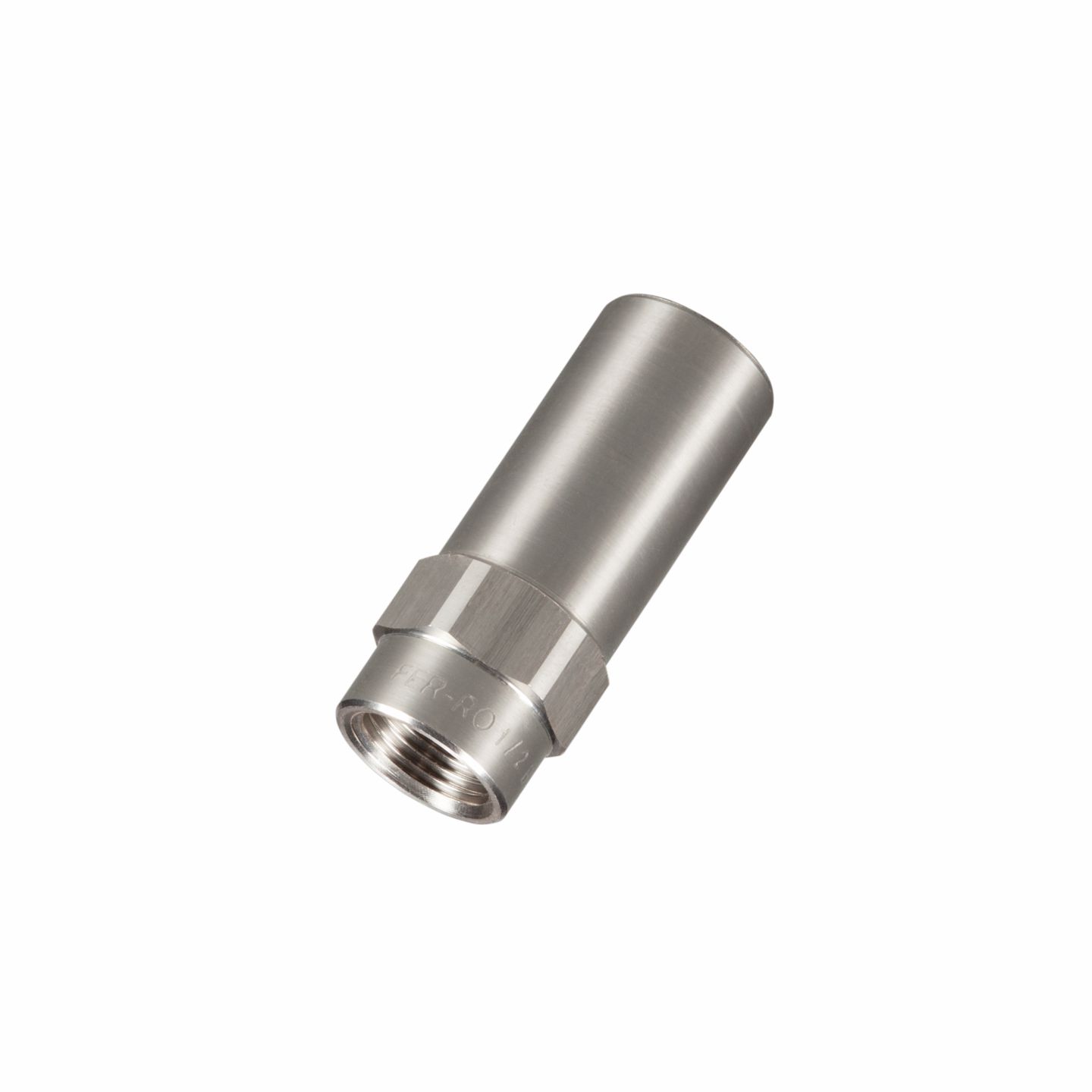

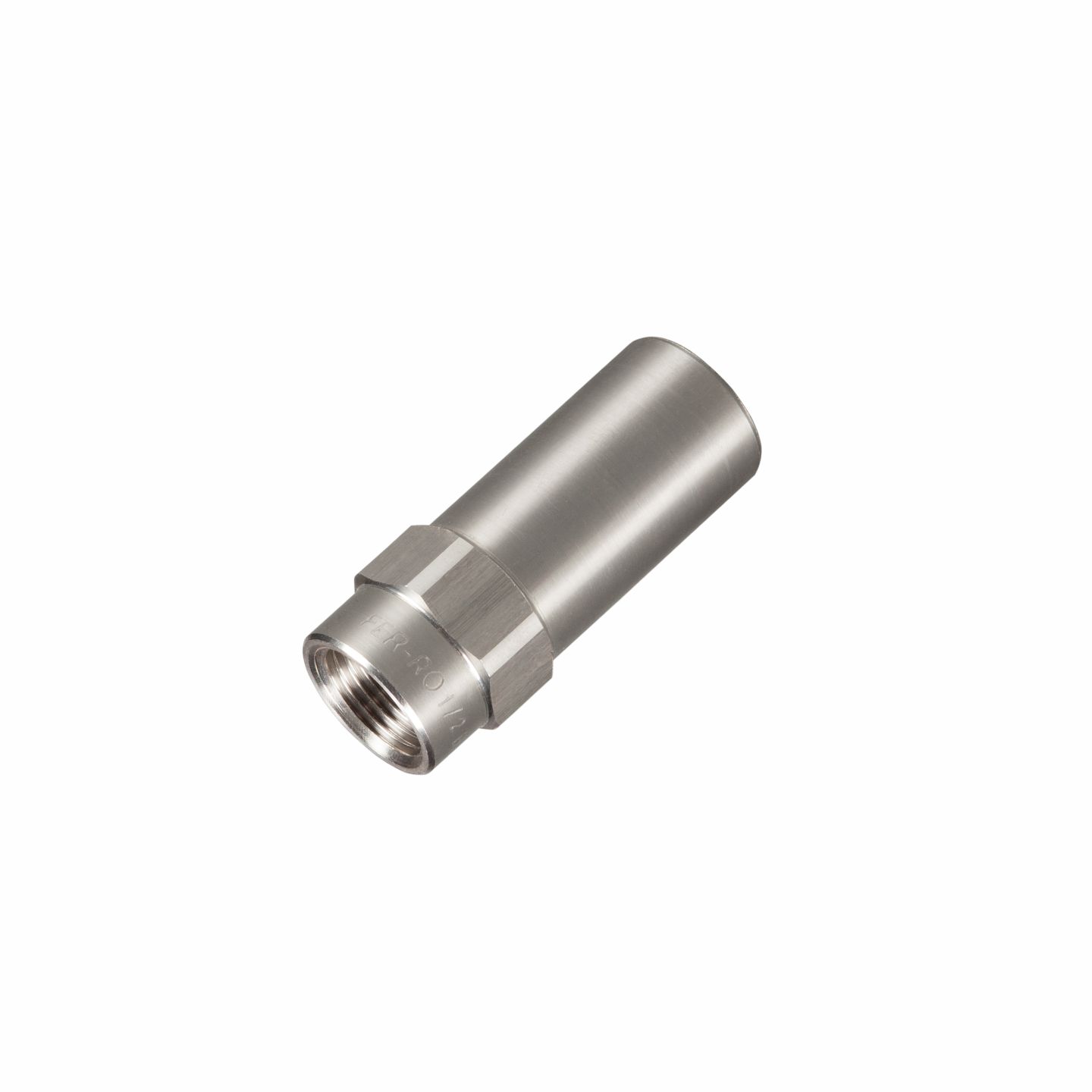

PHOTOS
