BV2PNA SERIES DOUBLE ACTING PNEUMATIC ACTUATOR HYDRAULIC 2-WAY BALL VALVES (WATER & AIR AND SOME SPECIAL CHEMICAL FLUIDS)

BV2PNA Series Double acting Pneumatic Actuator Hydraulic 2-Way Ball Valves are used to either shut-off or open of flow passage and their easy operation provides unrestricted flow. Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation. BV2PNA Series Double acting Pneumatic Actuator Hydraulic 2-Way Ball Valves can be locked in the open or closed position through locking washer on the circle pin. Internal ball is hard chrome coated steel and delrin (POM) seated. Ball Valves are suitable for LPG, CNG and other gas applications, as well as hydraulic and other industrial fluids. BV2PNA Series Double acting Pneumatic Actuator Hydraulic 2-Way Ball Valves provides the movement with pneumatic actuator instead of handle motion

Body Material Carbon steel
Ball Material  Hard chrome coated brass.
Thread Size BSP (Upon Request NPT - Metric)
Ball Seats Special sealing equipments
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Upon Request VITON (-30 °C - +225 °C)
Applications For air and water lines and some special chemical fluid pass applications,

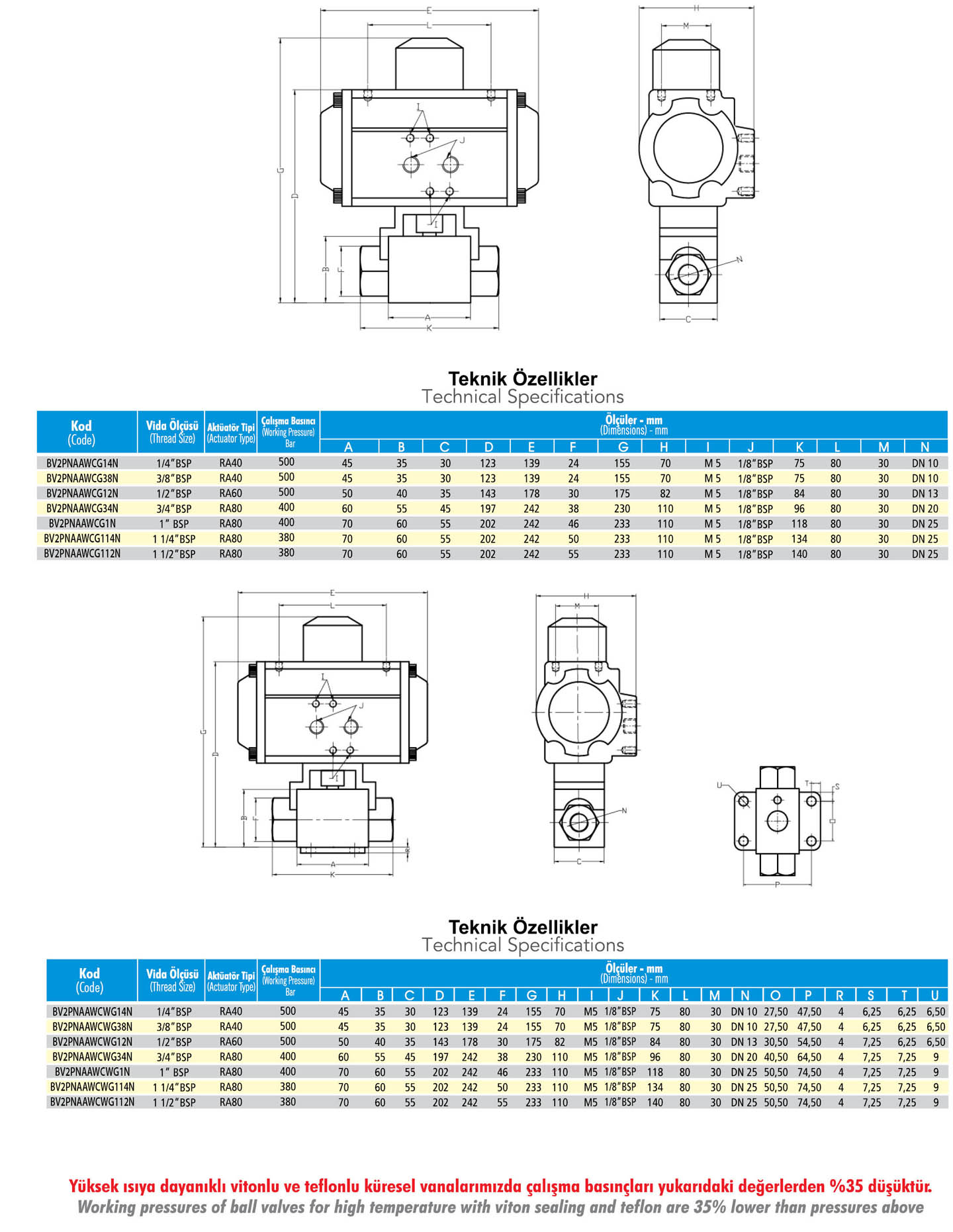

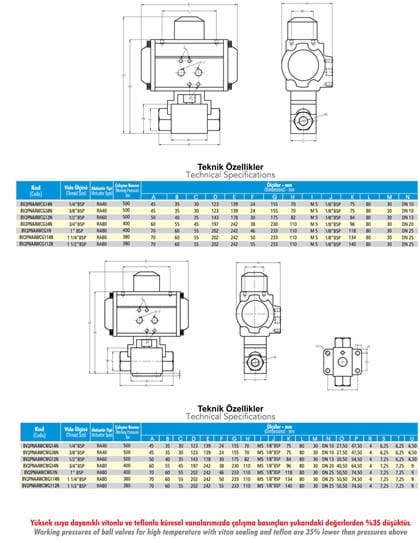

TECHNICAL DATA

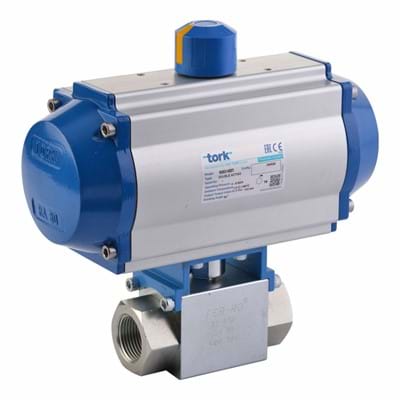

PHOTOS
