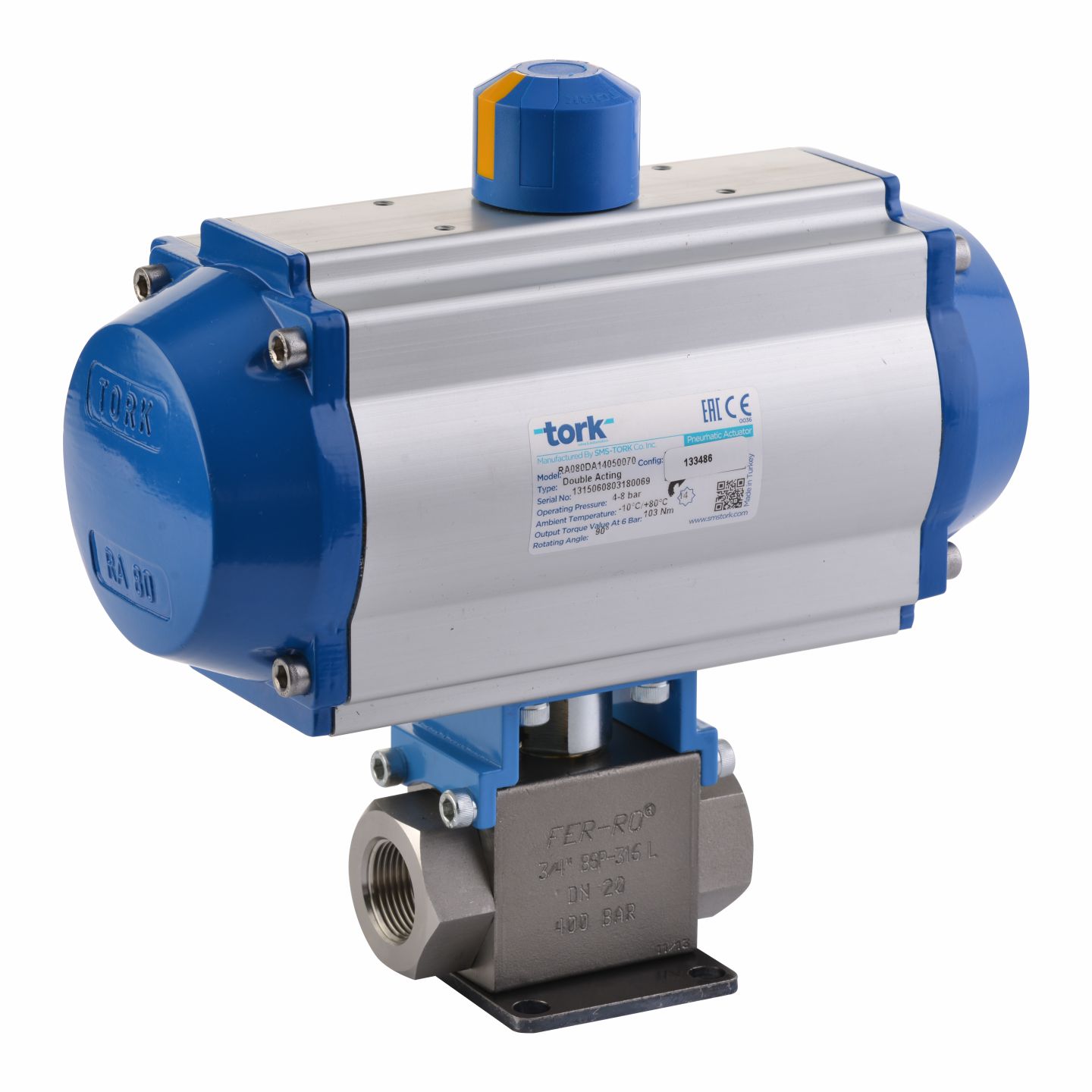

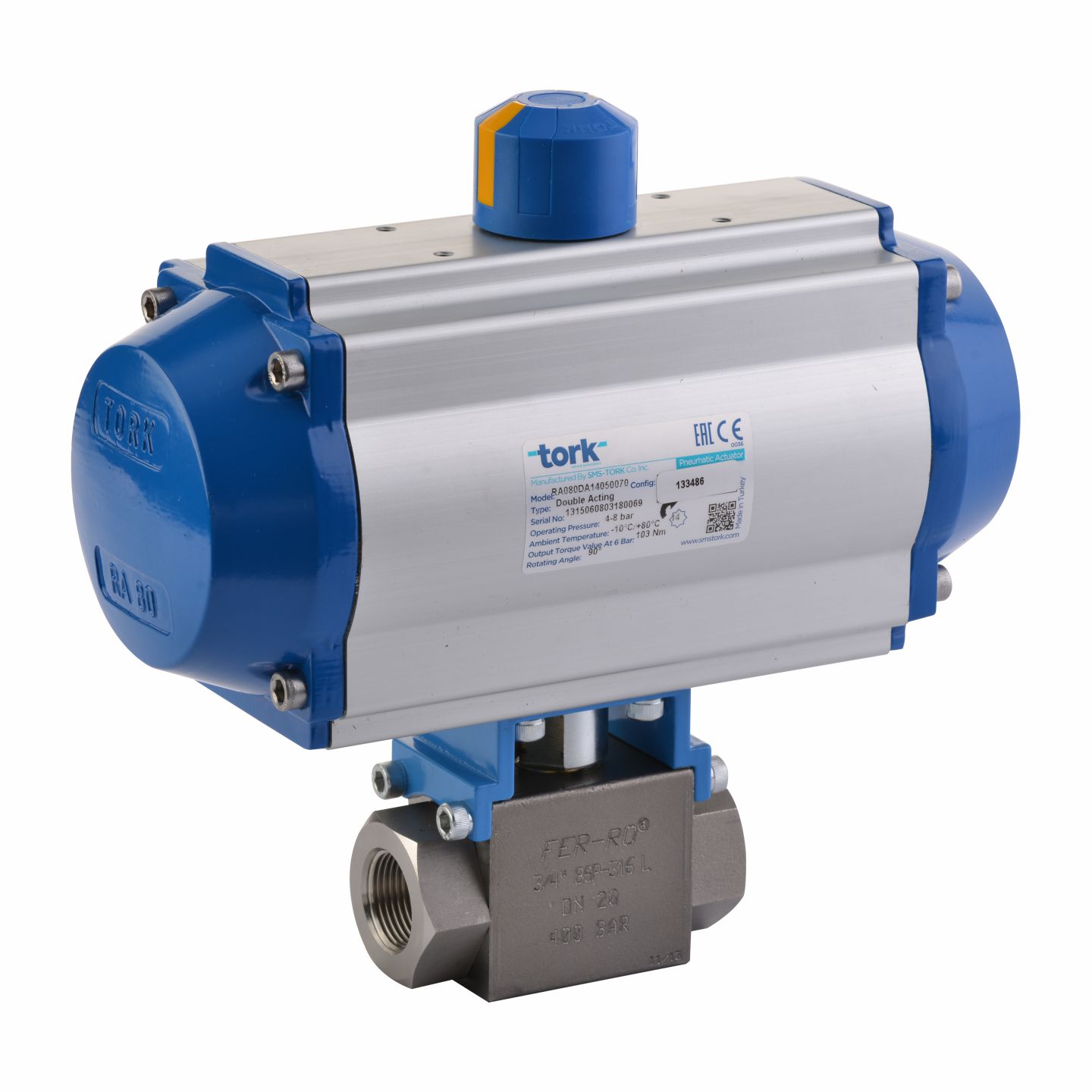

BV2PNA Series Double acting Pneumatic Actuator Hydraulic 2-Way Stainless Steel Ball Valves (Special for water and chemical fluid flow) are used to either shut-off or open of flow passage and their easy operation provides unrestricted flow. Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation.
BV2PNA Series Double acting Pneumatic Actuator Hydraulic 2-Way Stainless Steel Ball Valves (Special for water and chemical fluid flow) can be locked in the open or closed position through locking washer on the circle pin. Internal ball is hard chrome coated steel and delrin (POM) seated. Ball Valves are suitable for LPG, CNG and other gas applications, as well as hydraulic and other industrial fluids. BV2PNA Series Double acting Pneumatic Actuator Hydraulic 2-Way Stainless Steel Ball Valves provides the movement with pneumatic actuator instead of handle motion

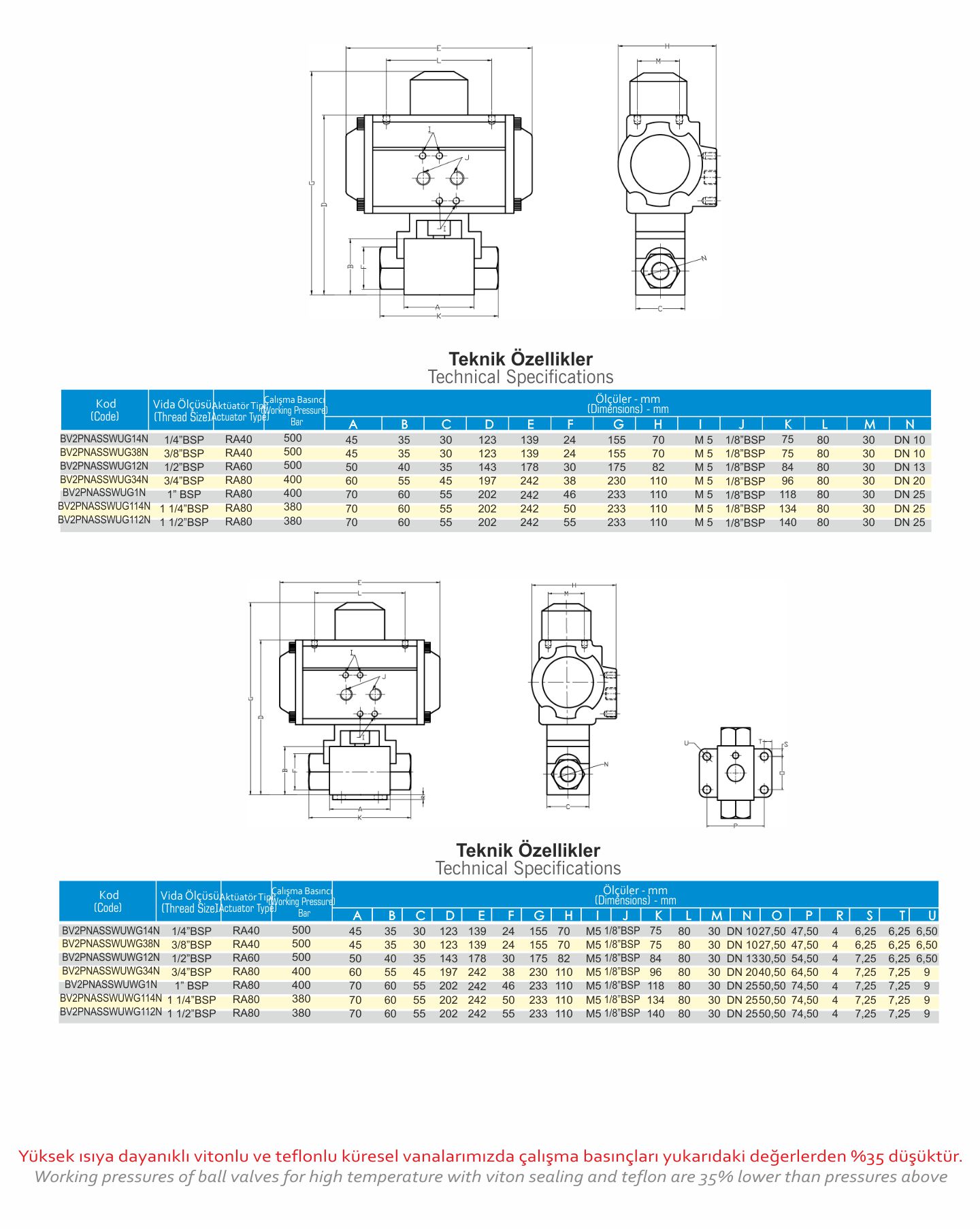

Body Material | AISI 316-L Stainless Steel |
Ball Material | AISI 316-L Stainless Steel |
Thread Size | BSP, NPT |
Ball Seats | Delrin (POM) |
Sealing | Nitrile O-ring (NBR) |
Working Temperature | -30 °C and +110 °C |
Plating | Zinc Plating (Cr III Passivation) |
Upon Request | VITON |
Applications | Excavators, plastic injection mould machines, |
chemical processing plants, cranes, tankers, | |
dump trucks and general hydraulic applications |
