BV2SS Series 2-Way AISI 316-L Stainless Steel Ball Valves are completely made of AISI 316-L stainless steel row material have an excellent resistance to all kind of chemical and corrosion.
BV2SS Series Ball Valves can be locked in the open or closed position through locking washer on the circle pin.
| Body Material | AISI 316-L stainless steel |
| Ball Material | AISI 316-L stainless steel |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Ball Seats | Delrin (POM) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +225 °C |
| Upon Request | VITON (With teflon seating) |
| EPDM ( For steam application) | |
| Applications | Marine, food, pharmacy, medical, chemical, irrigation, |
| paper, paint, textile, gas and aviation |

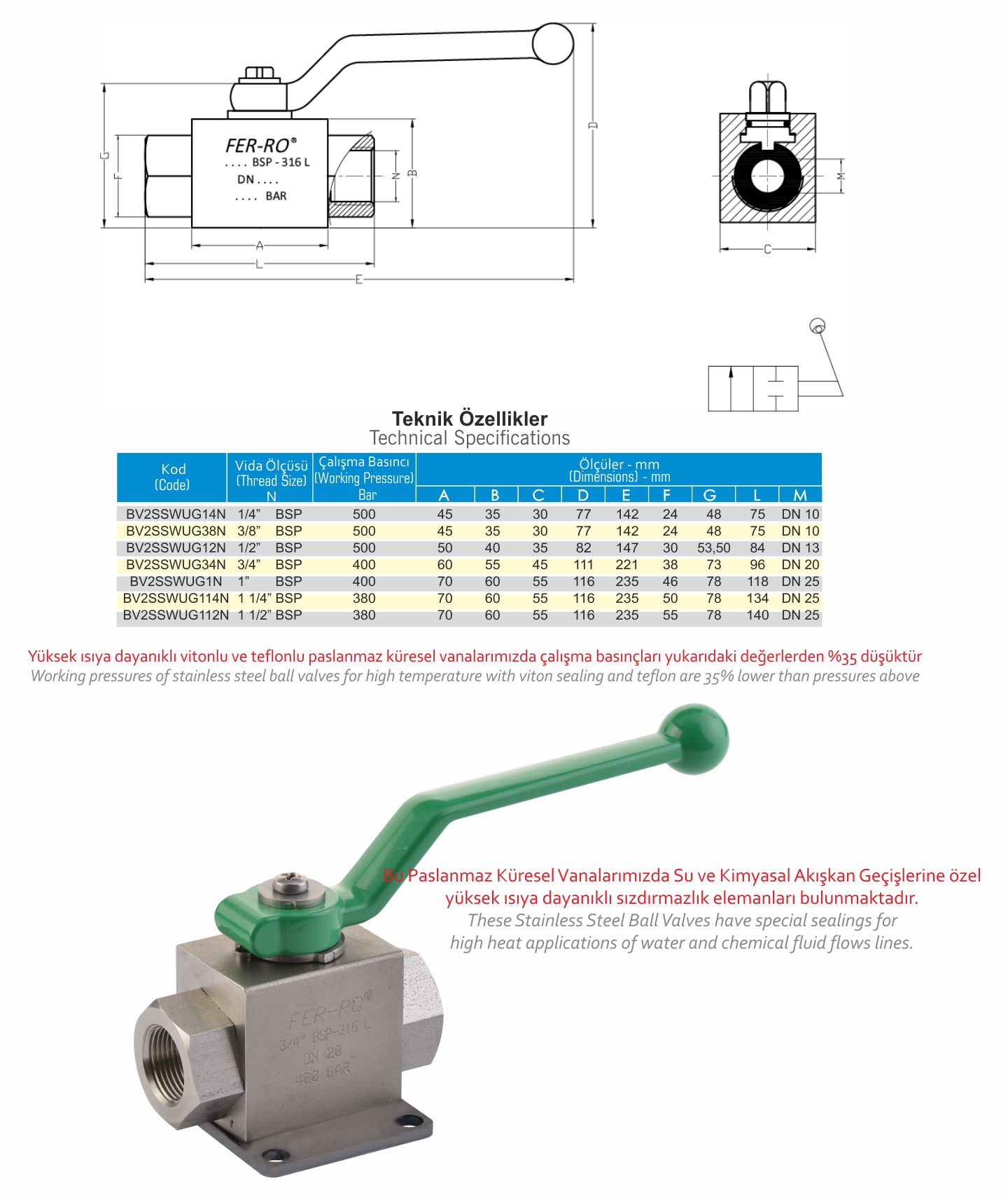

TECHNICAL DATA

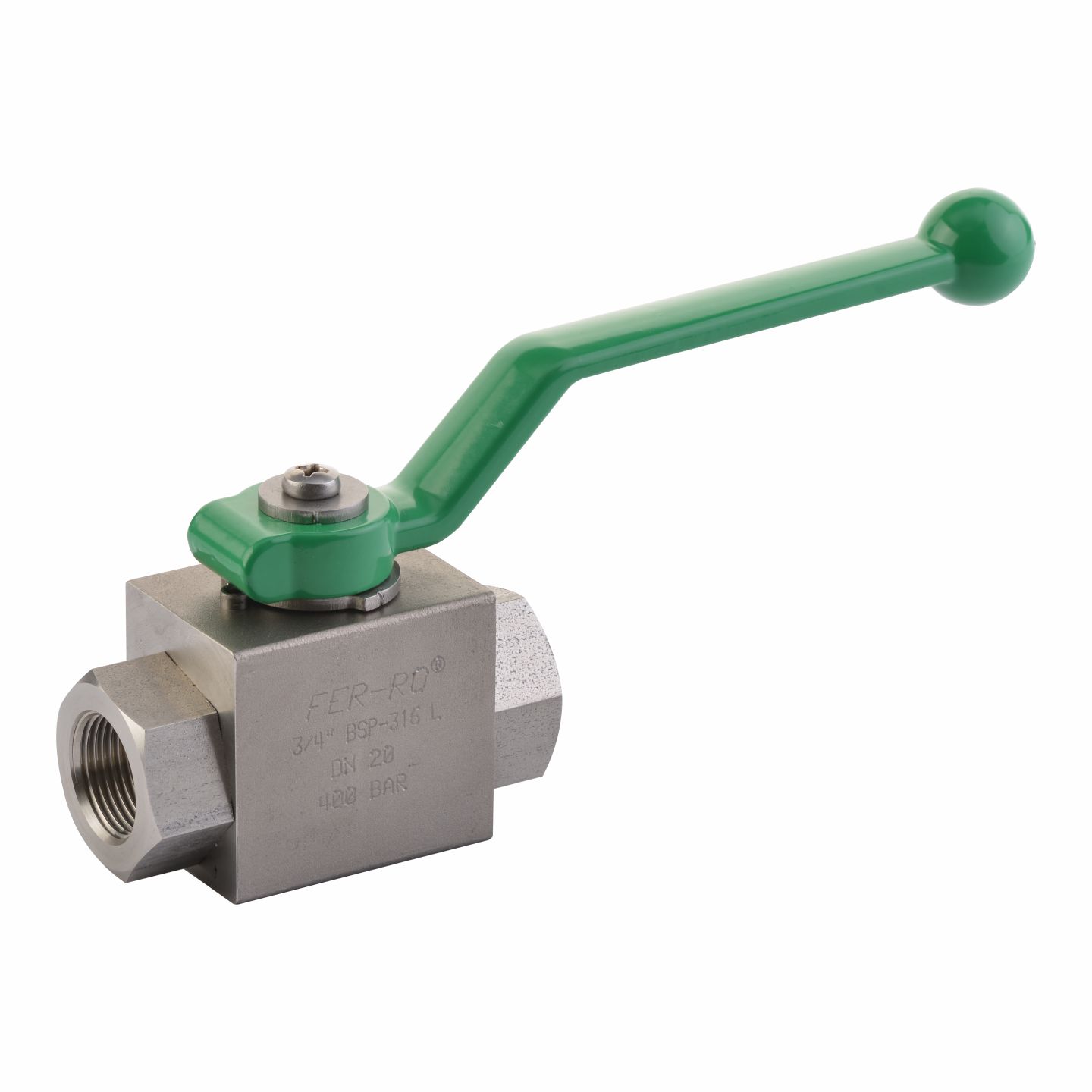

PHOTOS
