BV2HD Series Hydraulic 2 Way Ball Valves’ great resistance to pressure peaks prevent damage from high velocity fluid and hydraulic shocks, allow applications involving high pressure impulses for hammers & breakers.
| Body Material | High grade forged steel |
| Ball Material | Hard chrome coated carbon steel. |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Ball Seats | Delrin (POM) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Upon Request | VITON |
| Applications | Brakers & Hammers, Drilling Machines, Cranes, Excavators |

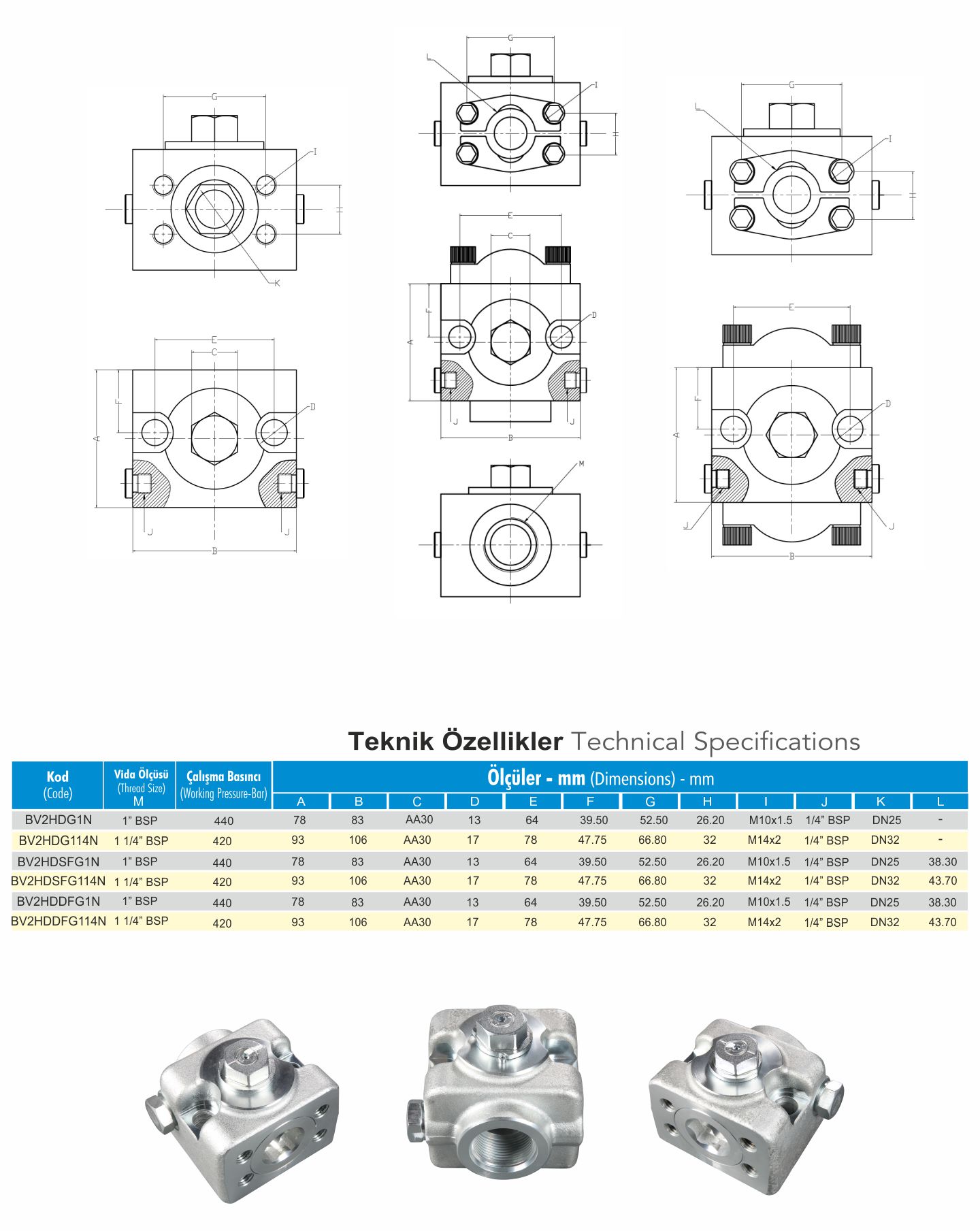

TECHNICAL DATA

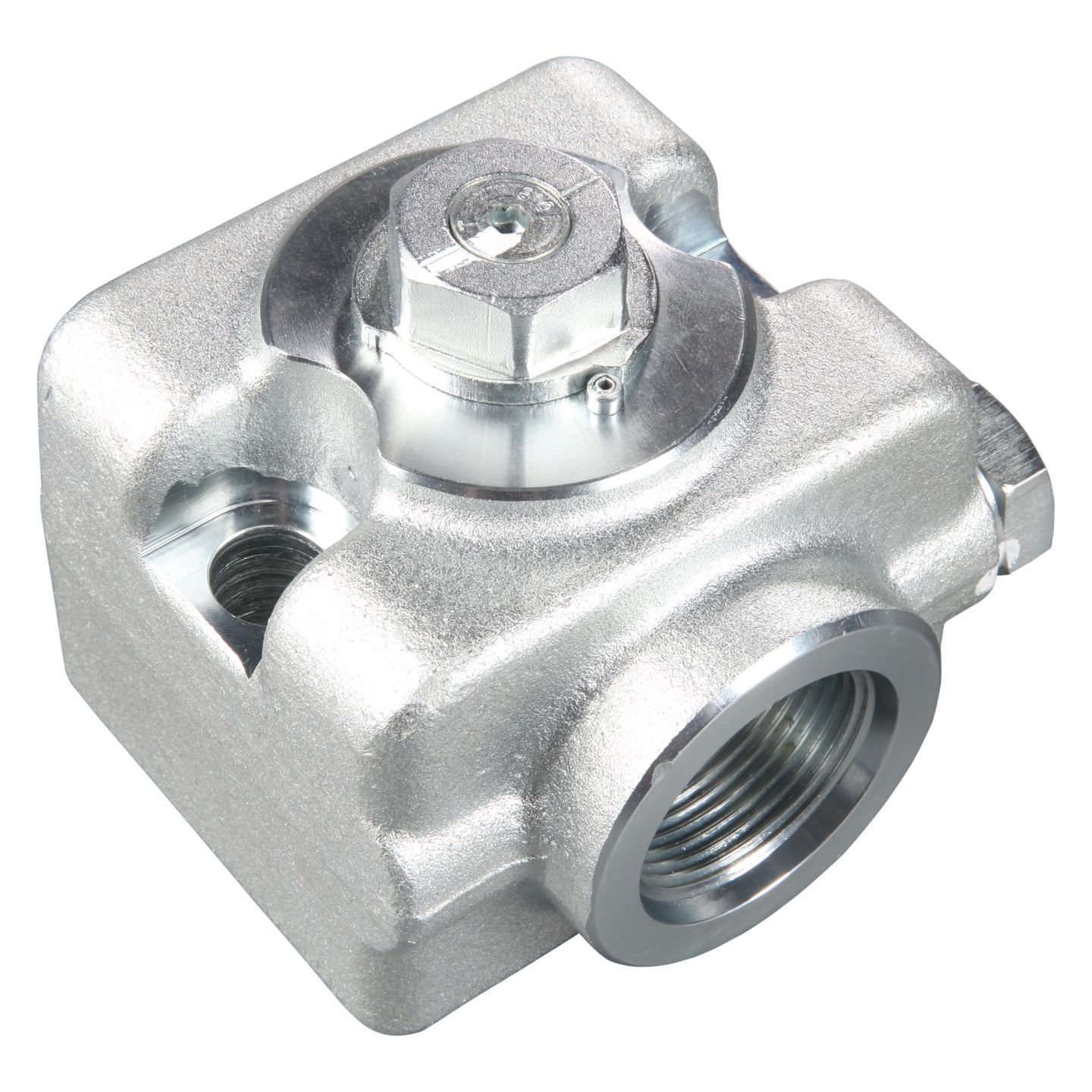

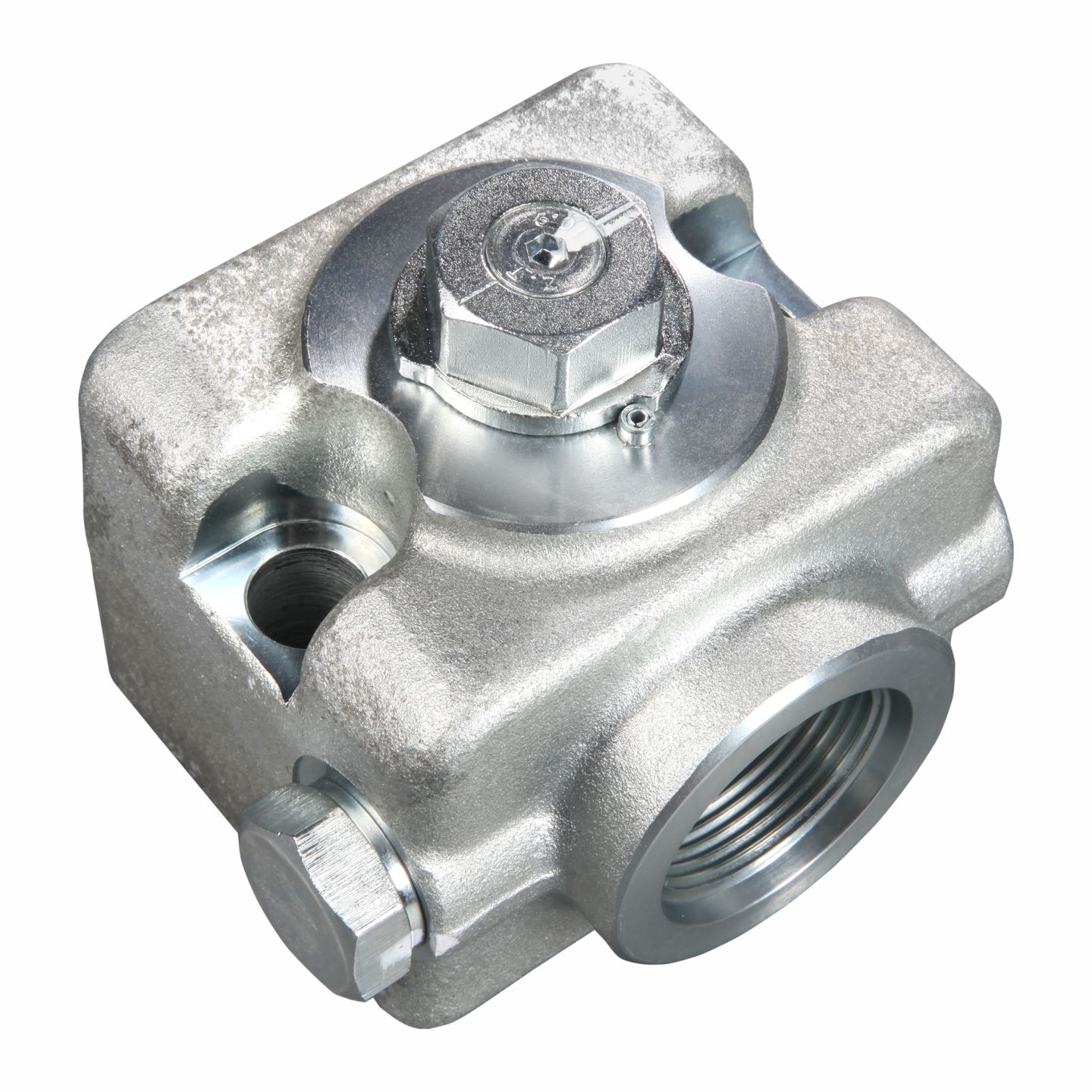

PHOTOS
