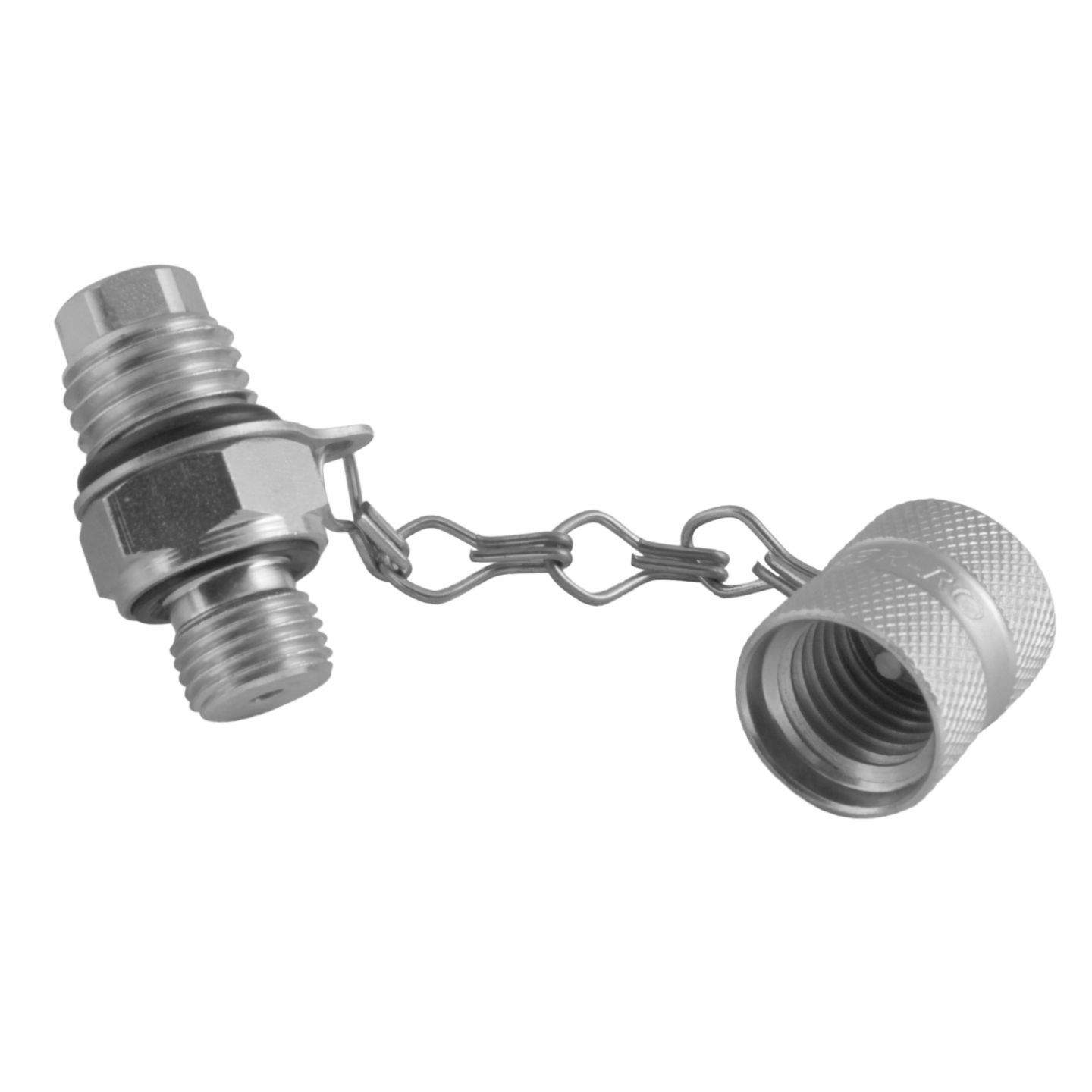

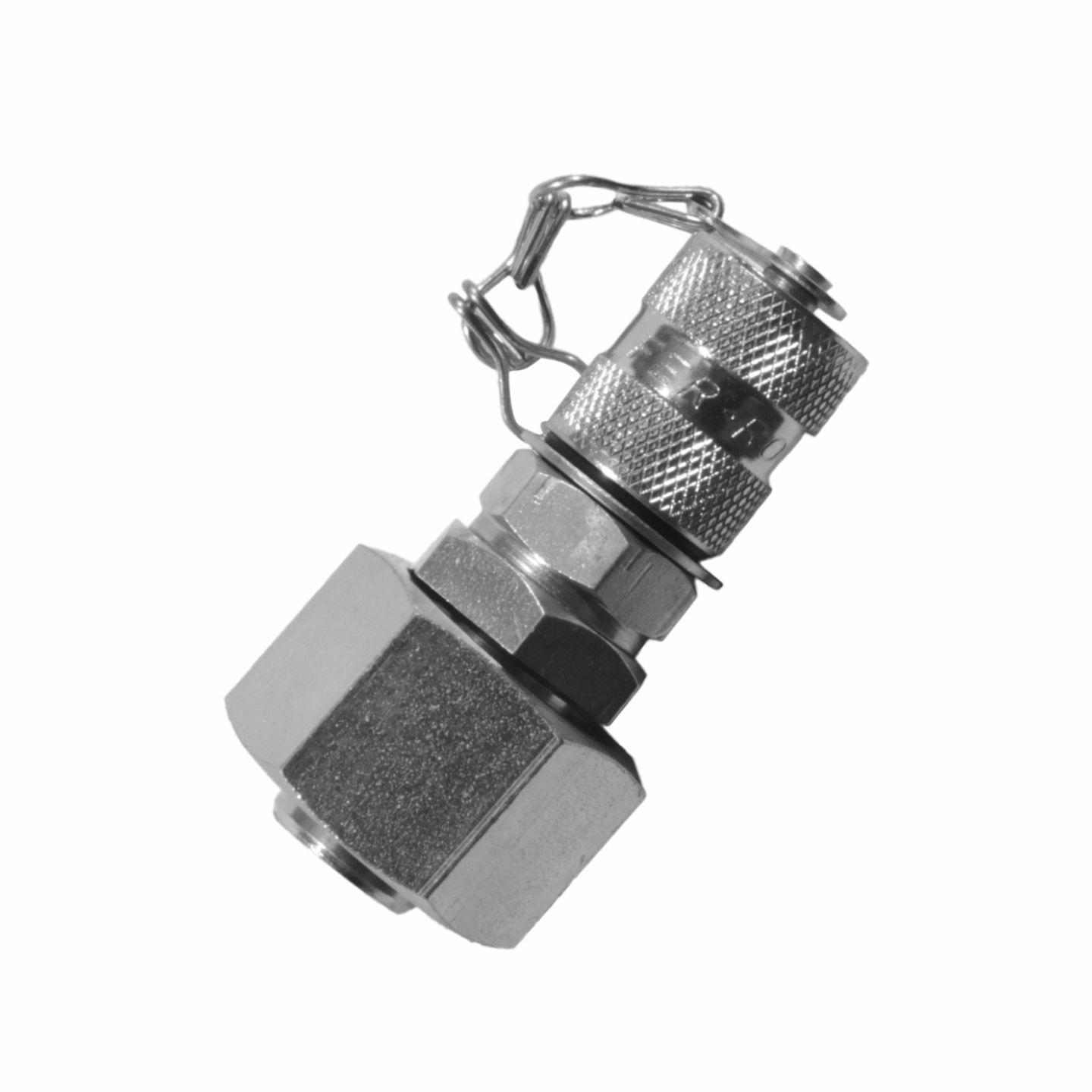

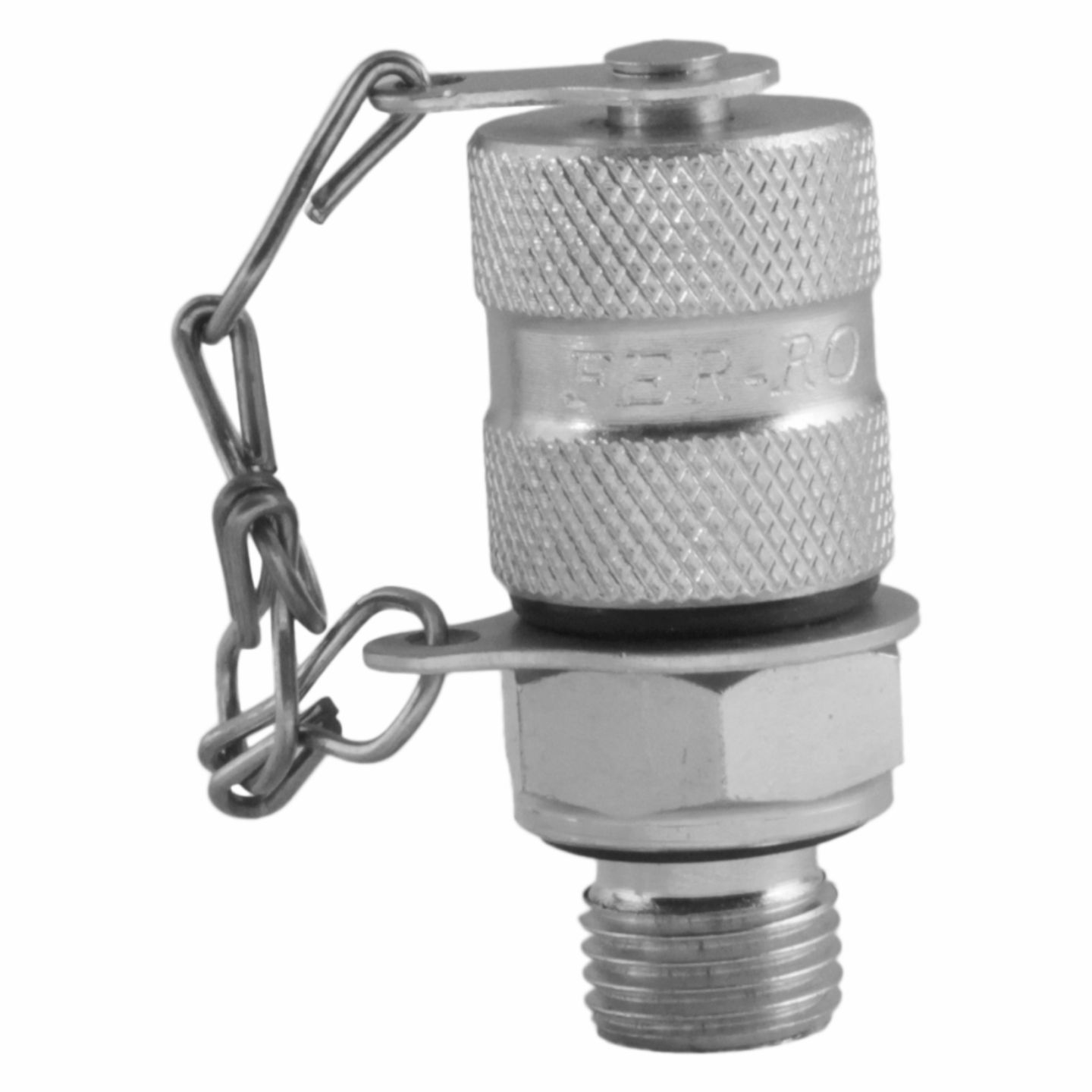

The built-in check valve provides direct contact with the fluid, when TCSS Series Hydraulic Stainless Steel Test Couplings are connected. The screw-in design allows test couplings to be connected even when the system is in operation and under high pressure. Internal threaded metal dust cap protects the Test Coupling from contamination and damage. TCSS Series Hydraulic Stainless Steel Test Couplings have an excellent resistance to corrosion with AISI-316 L Stainless Steel body.
| Shut-off System | Poppet Valve |
| Material | AISI 316 - L Stainless Steel |
| Thread Size | BSP, UNF & Metric |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | 30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Connection Under Pressure | Not Allowed |
| Disconnection Under Pressure | Not Allowed |
| Applications | Pressure control & testing, lubrication |

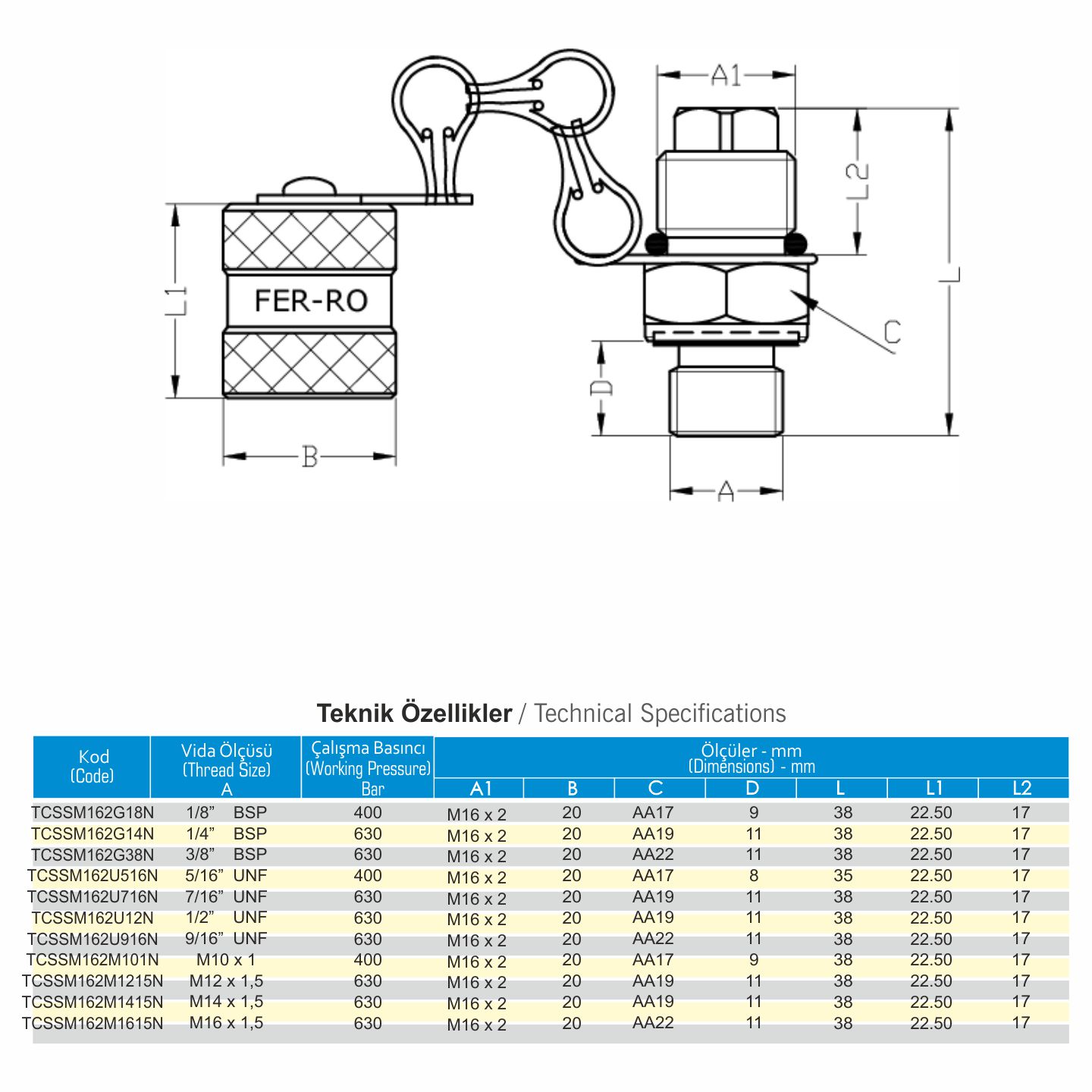

TECHNICAL DATA
PHOTOS
