LPG SERIES LPG BREAKAWAY COUPLINGS

LPG Series Breakaway Couplings provide breakaway protection for LPG transfer operations. If the vehicle drives away with the nozzle connected, LPG Breakaway Coupling allows seperation and provides efficieny and safety for accidents.
In the event of pull-away, an excessive tension causes the coupling to seperate automatically, closing both two internal back pressure poppet checks.
Push type, push-pull type and nitrile rubber covered sleeve options are available.
Male nipples of LPG Series are hardened by heat treatment.



Shut-off System  Poppet Valve
Material  Carbon Steel
Thread Size 3/4" NPT
Sealing  Nitrile O-ring (NBR)
Working Temperature  -30 °C and +110 °C
Plating   Zinc Plating (Cr III Passivation)
Heat Treatment  Male nipple
Connection System  Pulling back the sleeve
Disconnection System  Pulling back the sleeve
Connection Under Pressure  Not Allowed
Disconnection Under Pressure  Not Allowed
Applications  LPG fuelling stations

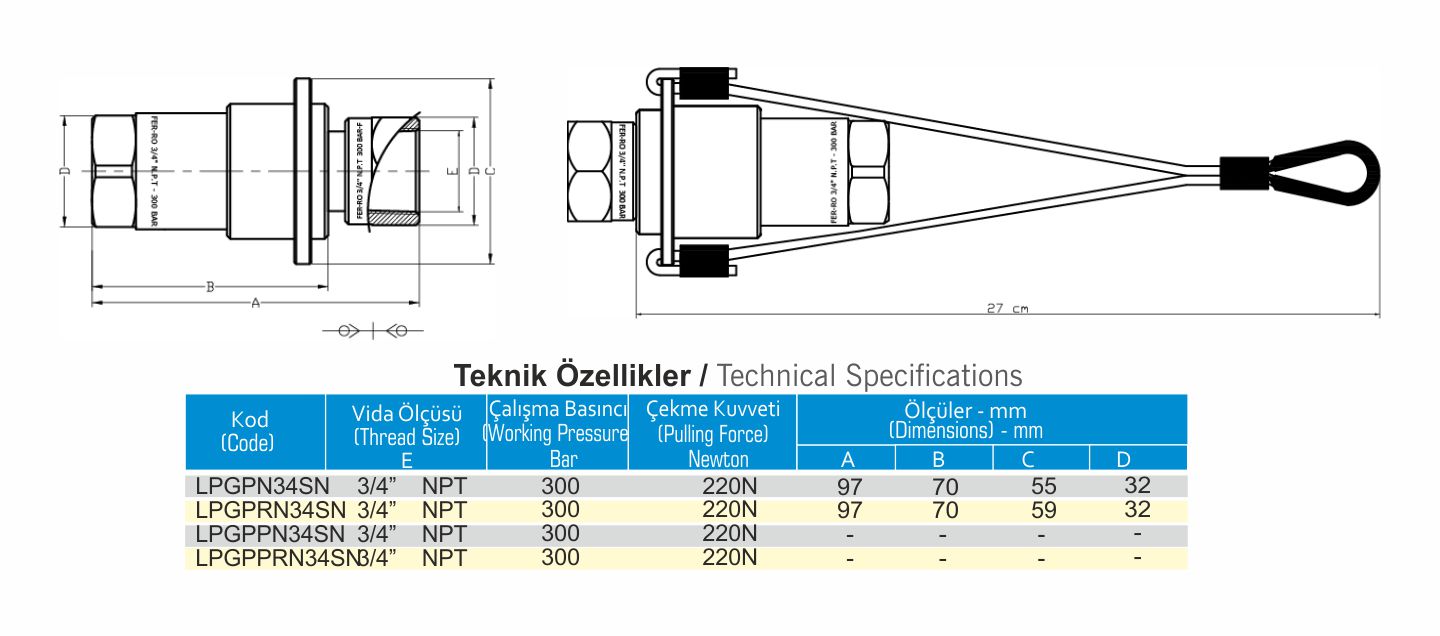

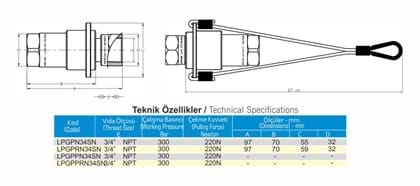

TECHNICAL DATA

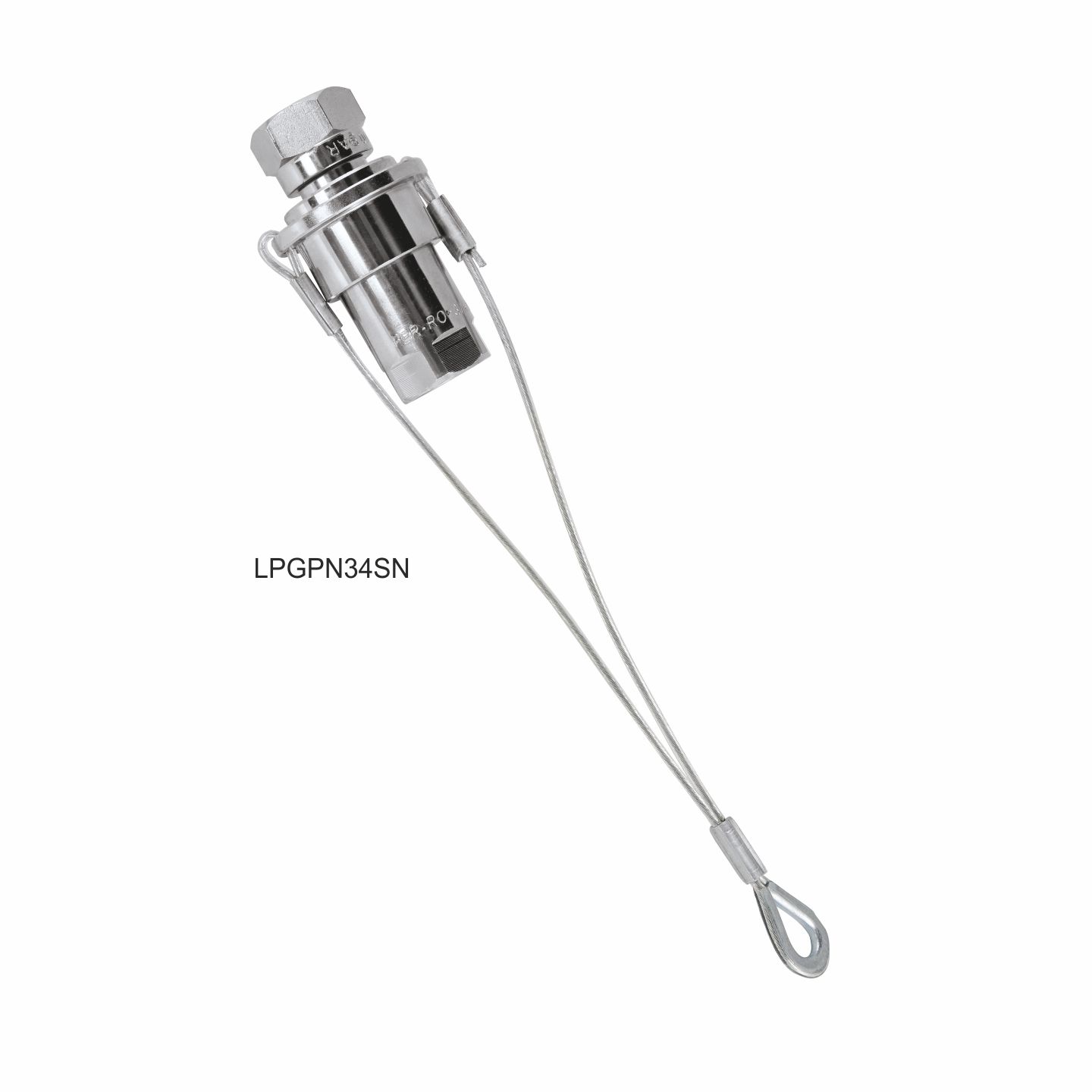

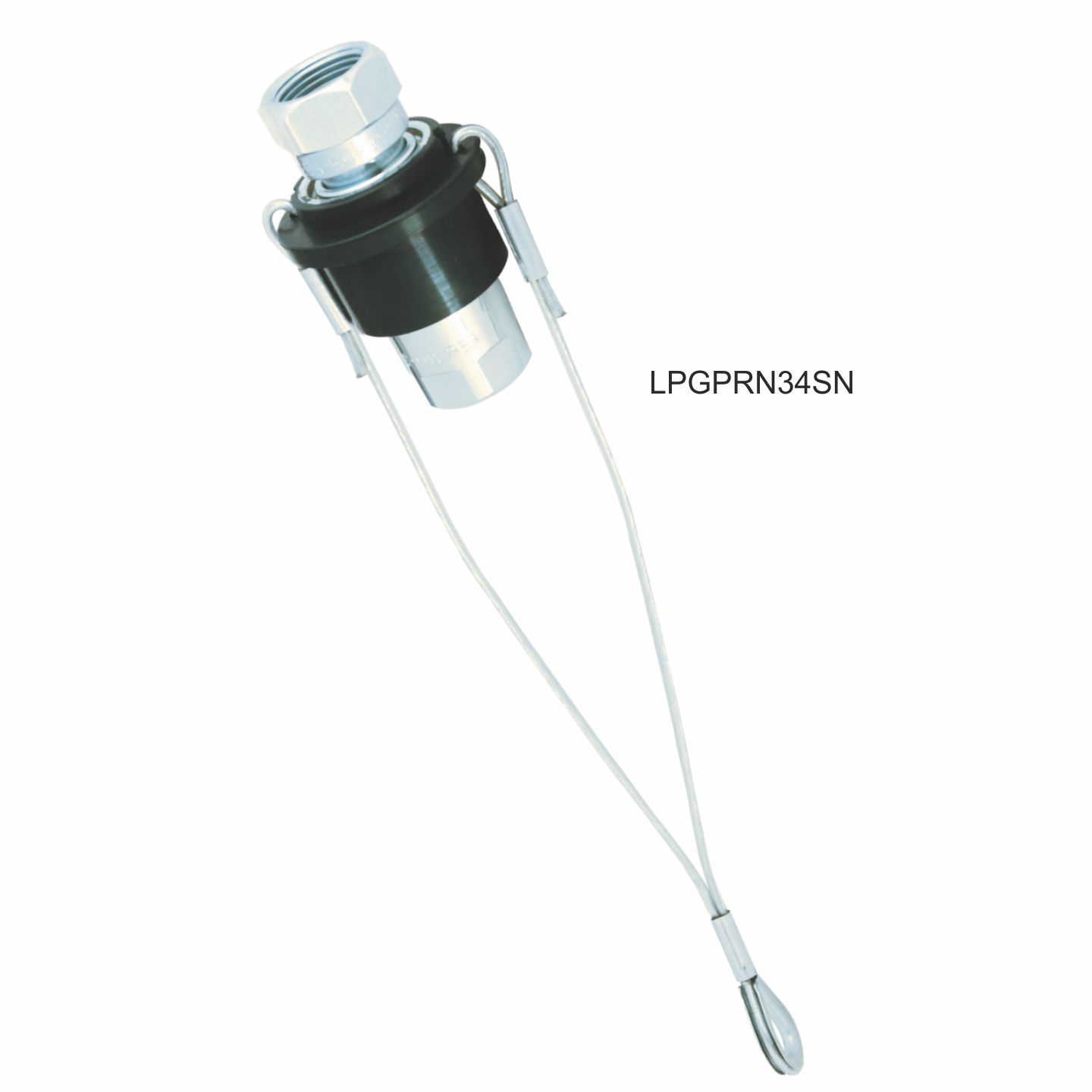

PHOTOS
