SJBB SERIES HYDRAULIC BALL BEARING BASED SWIVEL JOINTS

SJBB Series Hydraulic Ball Bearing Based Swivel Joints are mounted between the end of a moving hose and a fixed component to prevent hose's damaging by compensating its torsion and twisting.
SJBB Series Hydraulic Ball Bearing Based Swivel Joints are not suitable for fast and permanent rotations. They are suitable for slow rotations and high pressure applications.
With the assistance of base roller, they are suitable for more comfortable and slow turns under high pressure.



Material  Carbon Steel
Thread Size BSP (Upon Request: NPT, Metric)
Sealing  Nitrile O-ring (NBR)
Working Temperature  -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Heat Treatment Body
Upon Reguest  VITON & High temperature resistant special spring (-30 °C & +225 °C)
Applications  Construction, production, mobile hydraulic, general industries

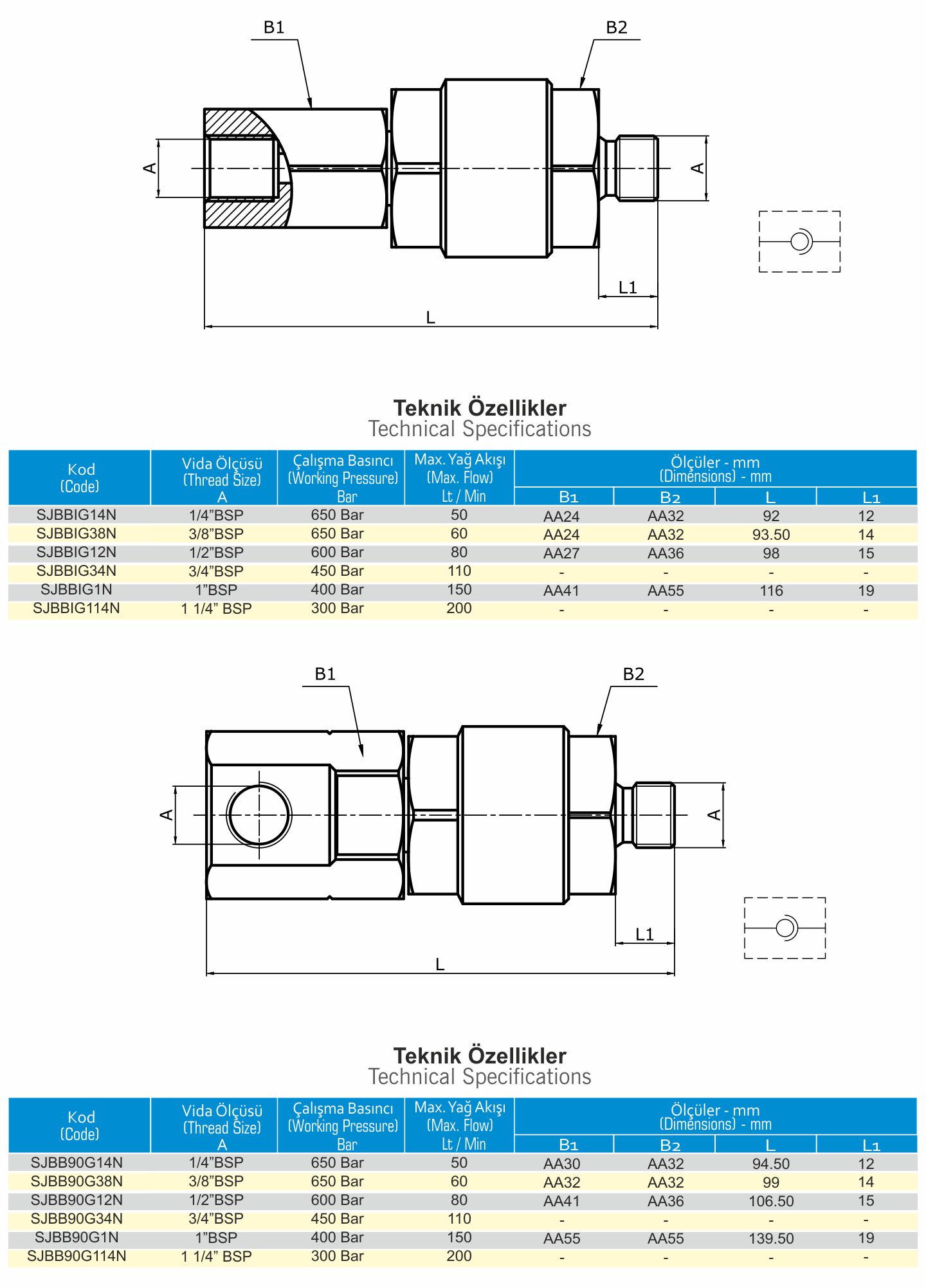

TECHNICAL DATA

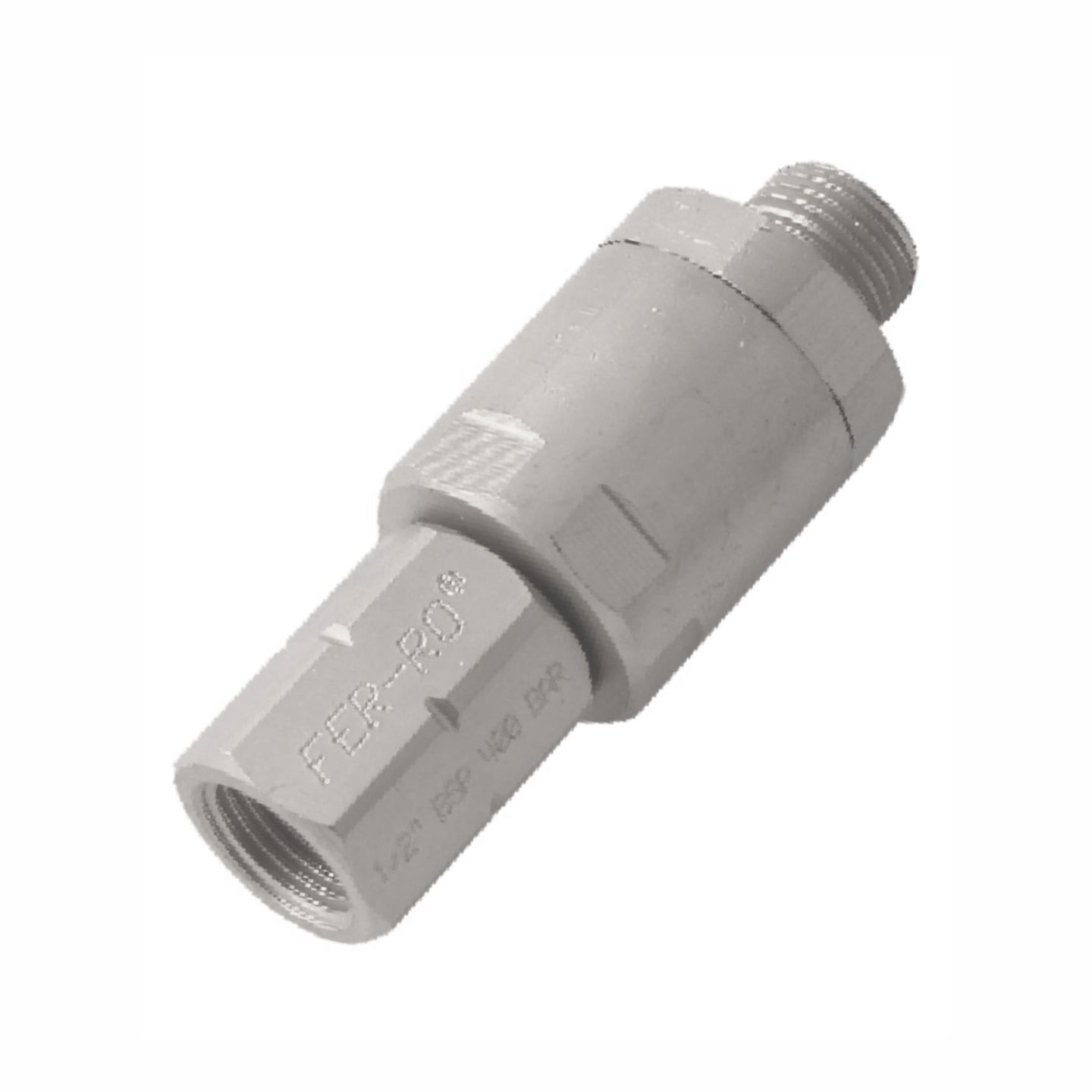

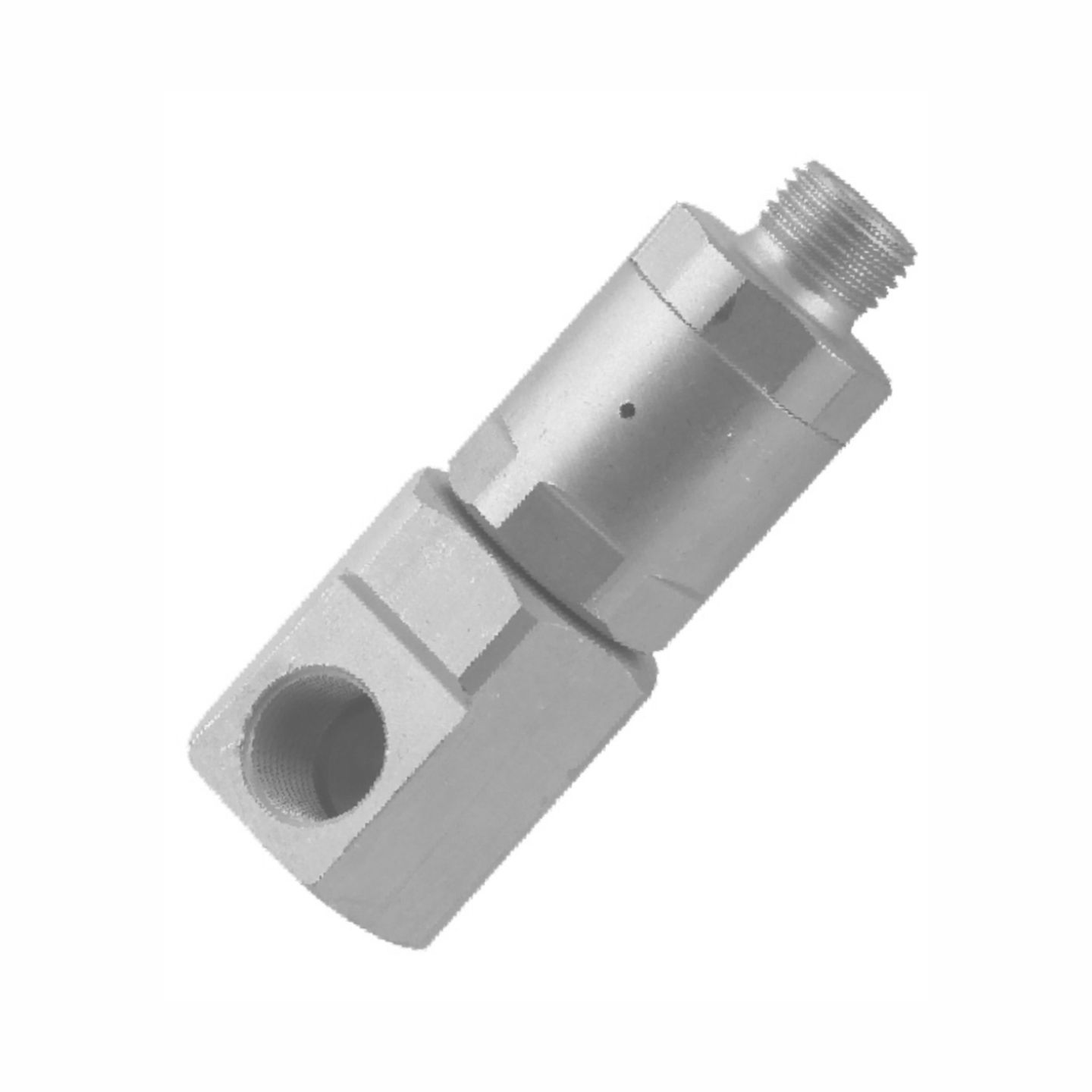

PHOTOS
