FLD series Flow Divider and Connective valves allow a hydraulic circuit to operate at the same speeds by sending the same fluid from the same pump to two separate cylinders or motors. They are designed as A – B – C Series to slow down or speed up the speeds of cylinders or motors.
| Material | Aluminium |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Heat Treatment | Internal parts |
| Applications | General Hydraulic Applications |

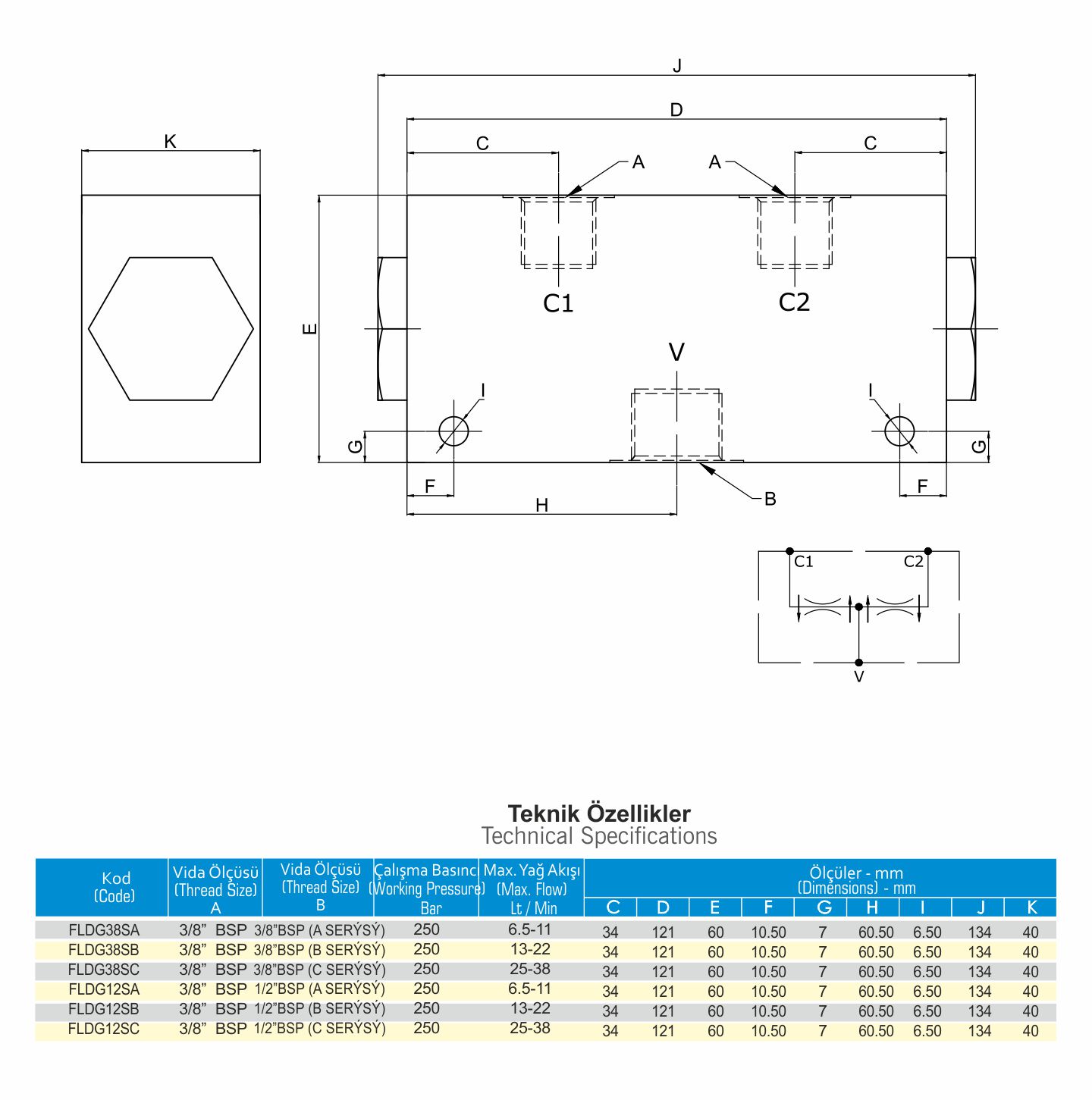

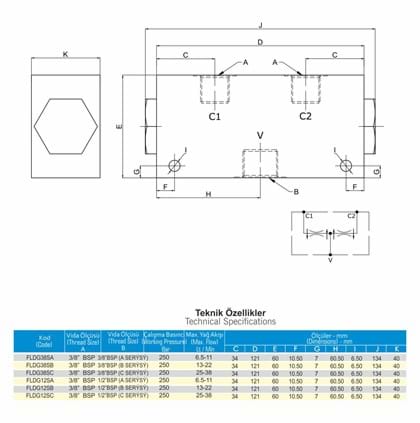

TECHNICAL DATA

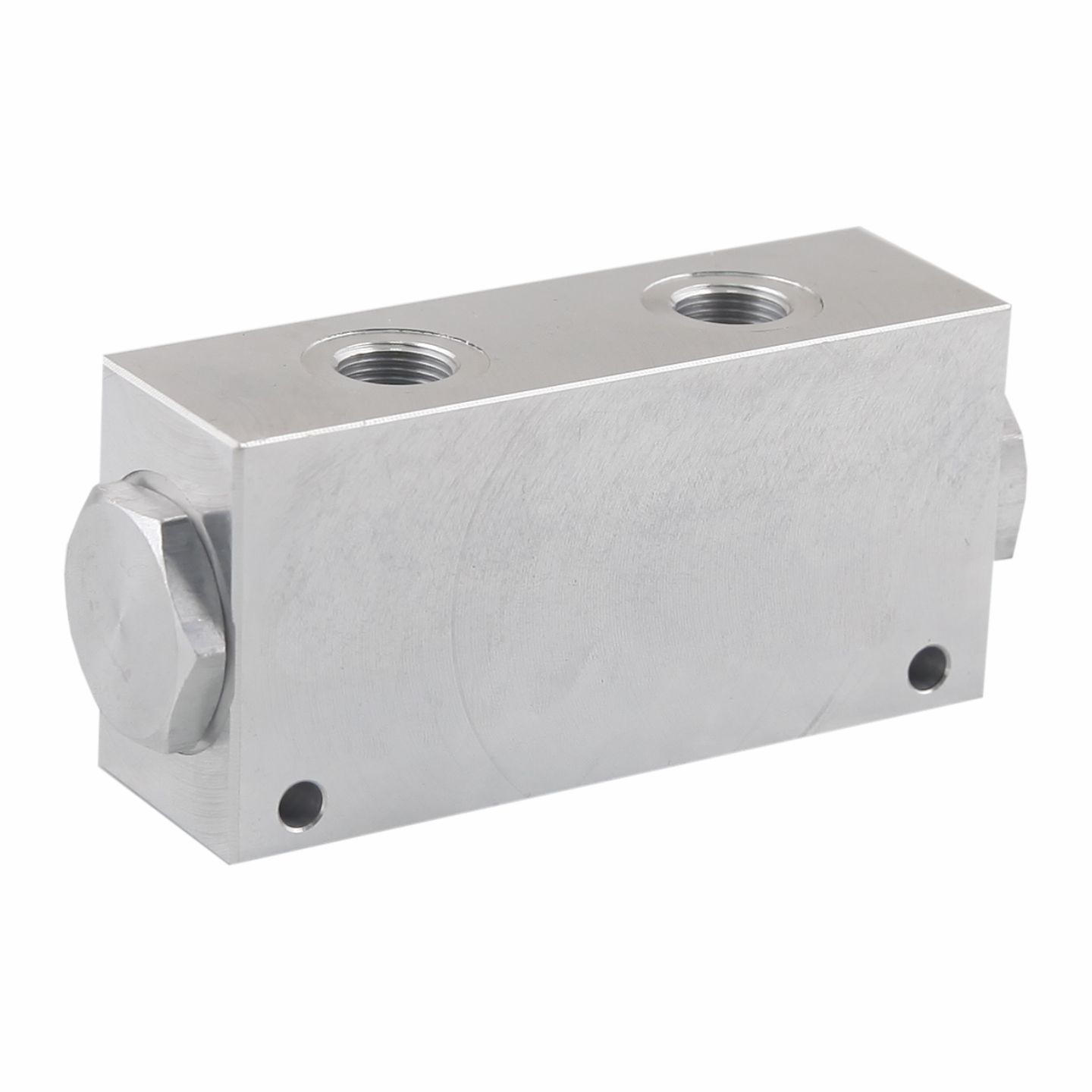

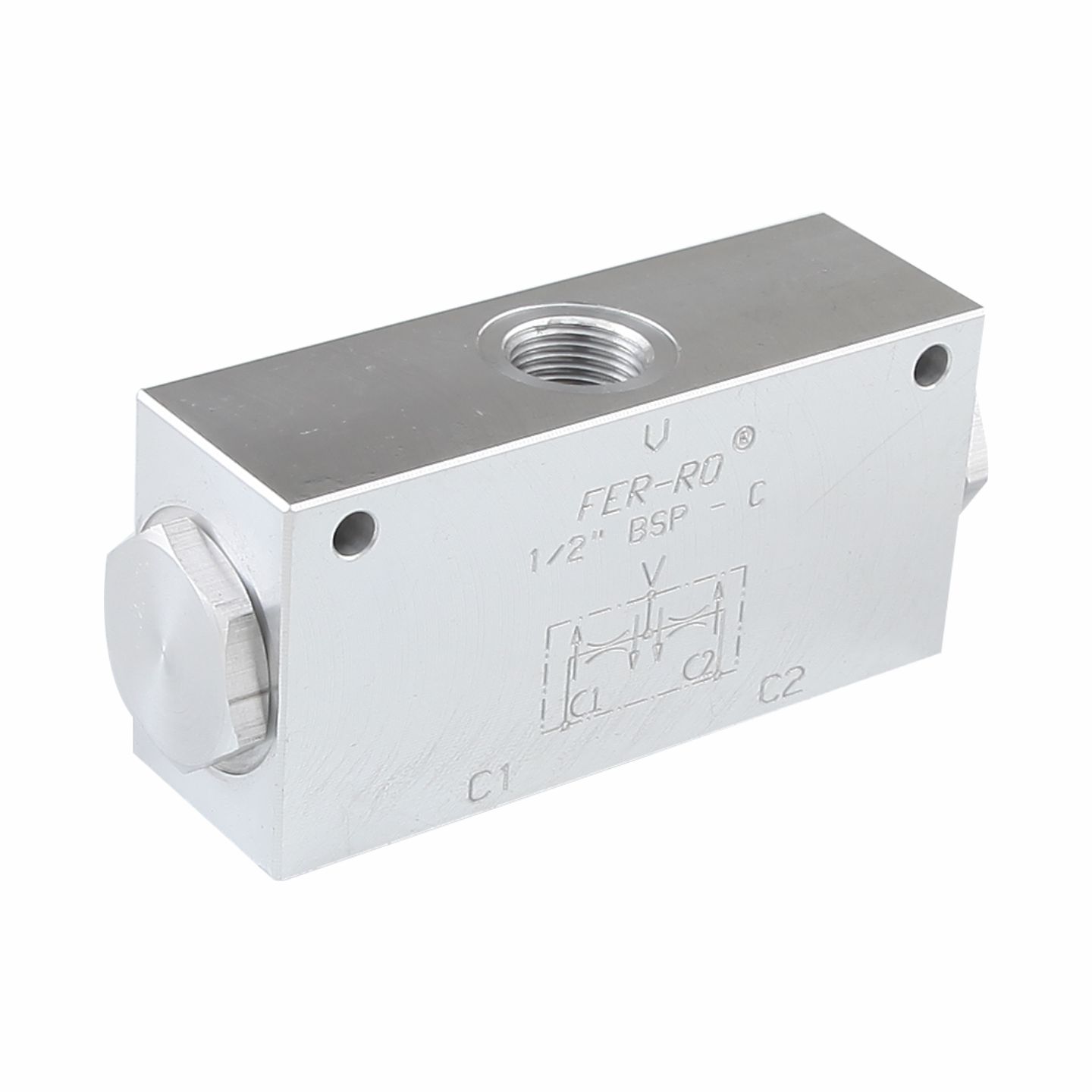

PHOTOS
