PRCRT Series Hydraulic Pilot Operated Pressure Relief Cartridge Valves act as a part of the control systems in hydraulic systems. When the system gets over loaded, the Pressure Relief Valve opens and flow comes from the pump is leaded directly into the hydraulic reservoir.
The pressure in the hydraulic system remains on the value determined by the spring on the Pressure Relief Cartridge Valve.PRCRT Series Hydraulic Pilot Operated Pressure Relief Cartridge Valves are used to limit the pressure inside of the hydraulic circuits.
| Material | Aluminium |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Heat Treatment | Internal parts |
| Applications | General Hydraulic Applications |

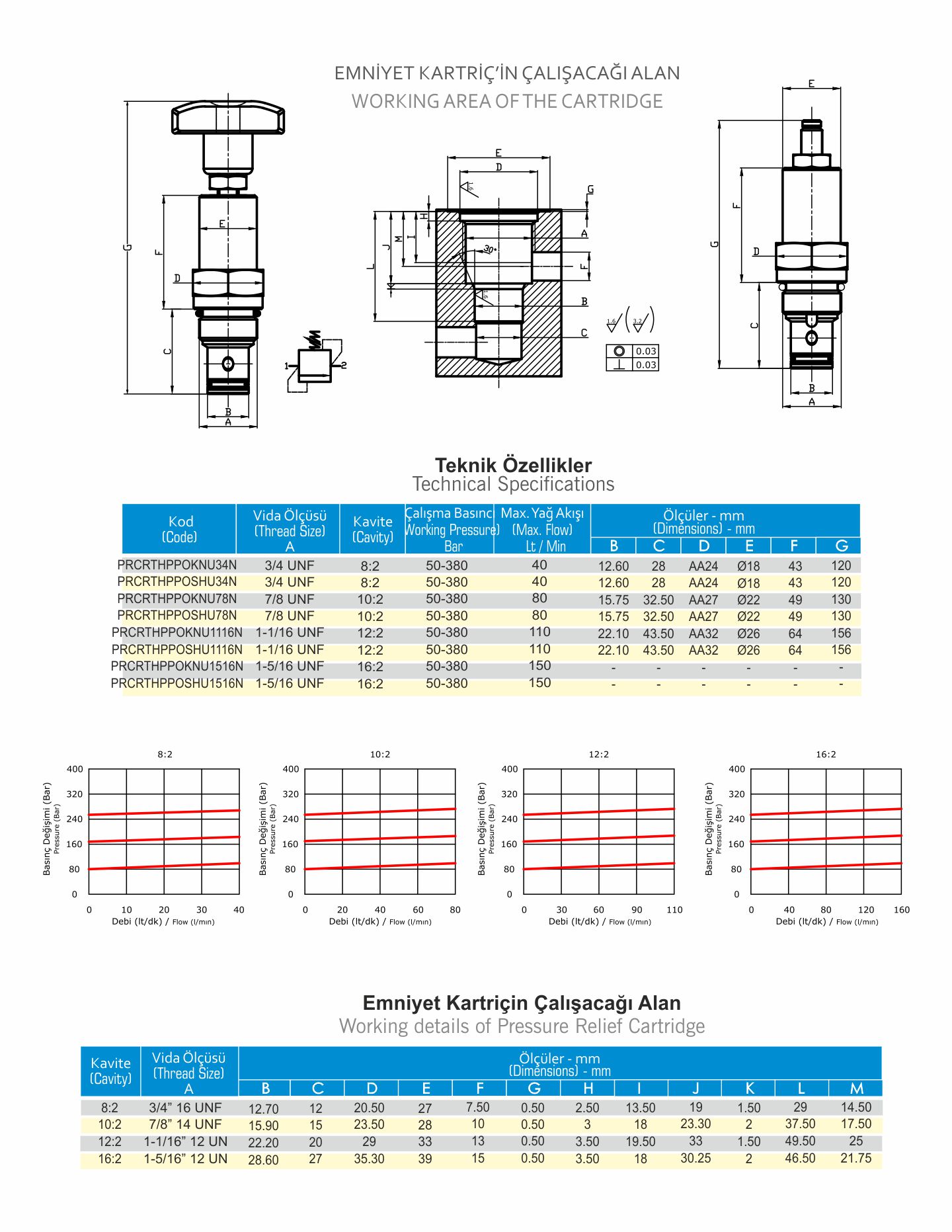

TECHNICAL DATA

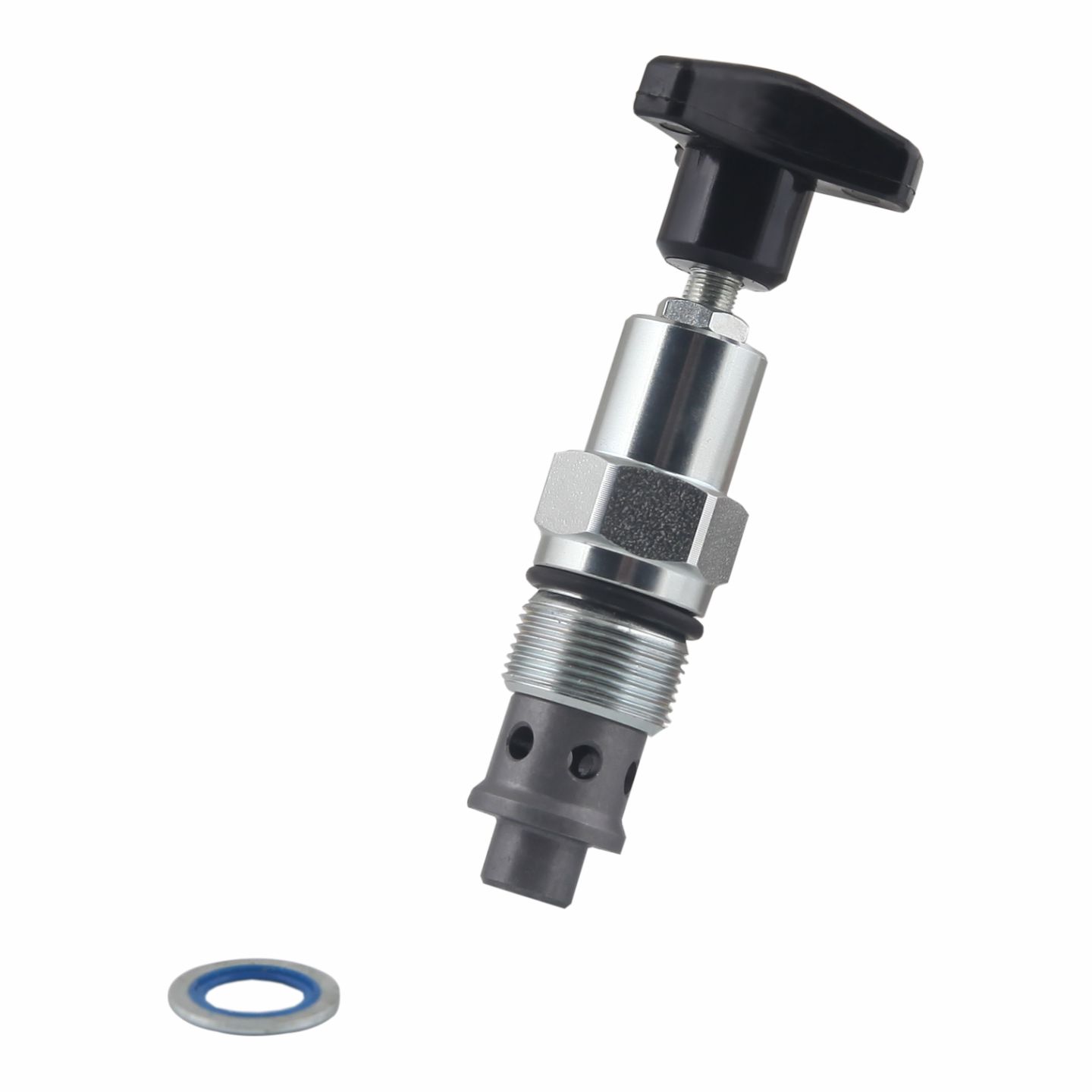

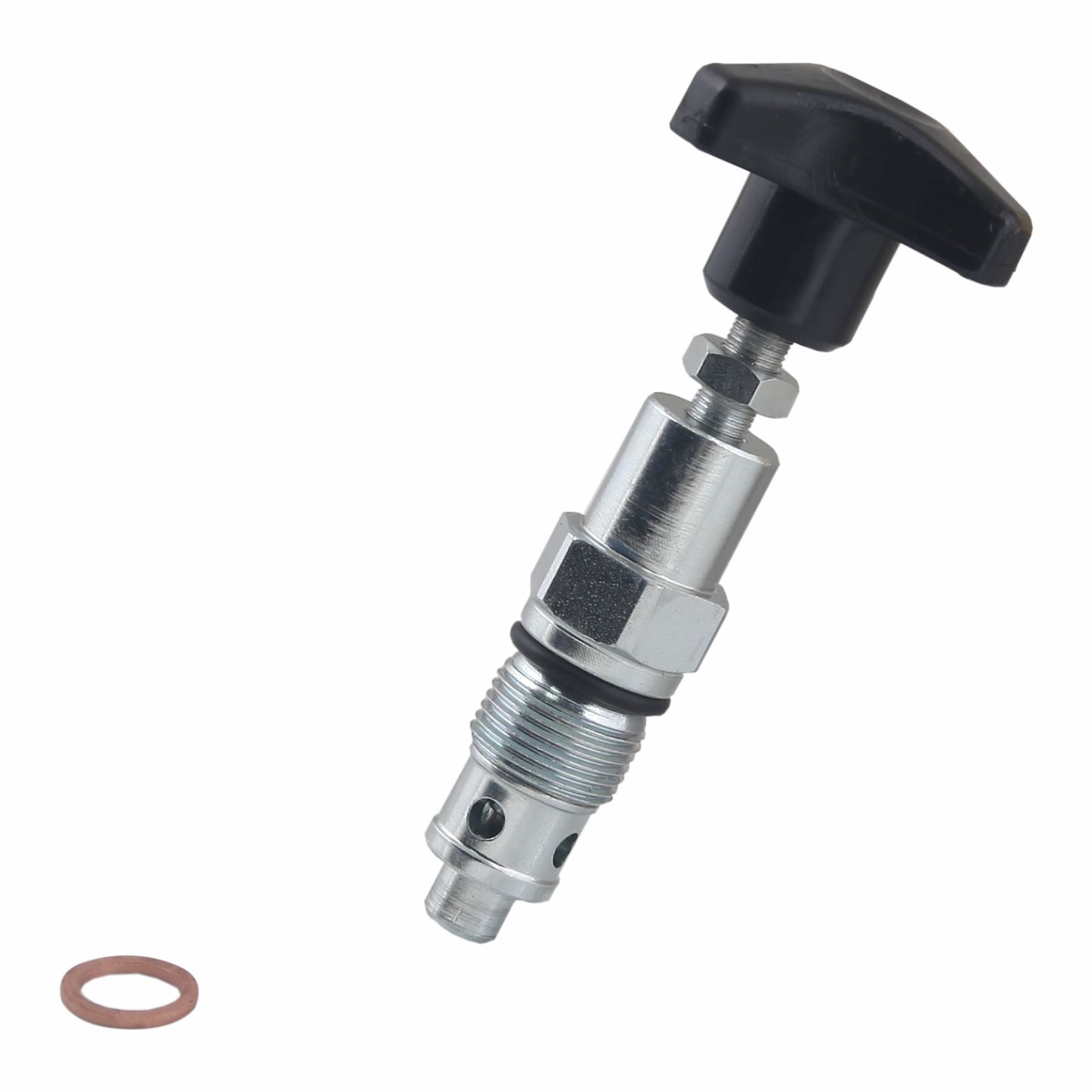

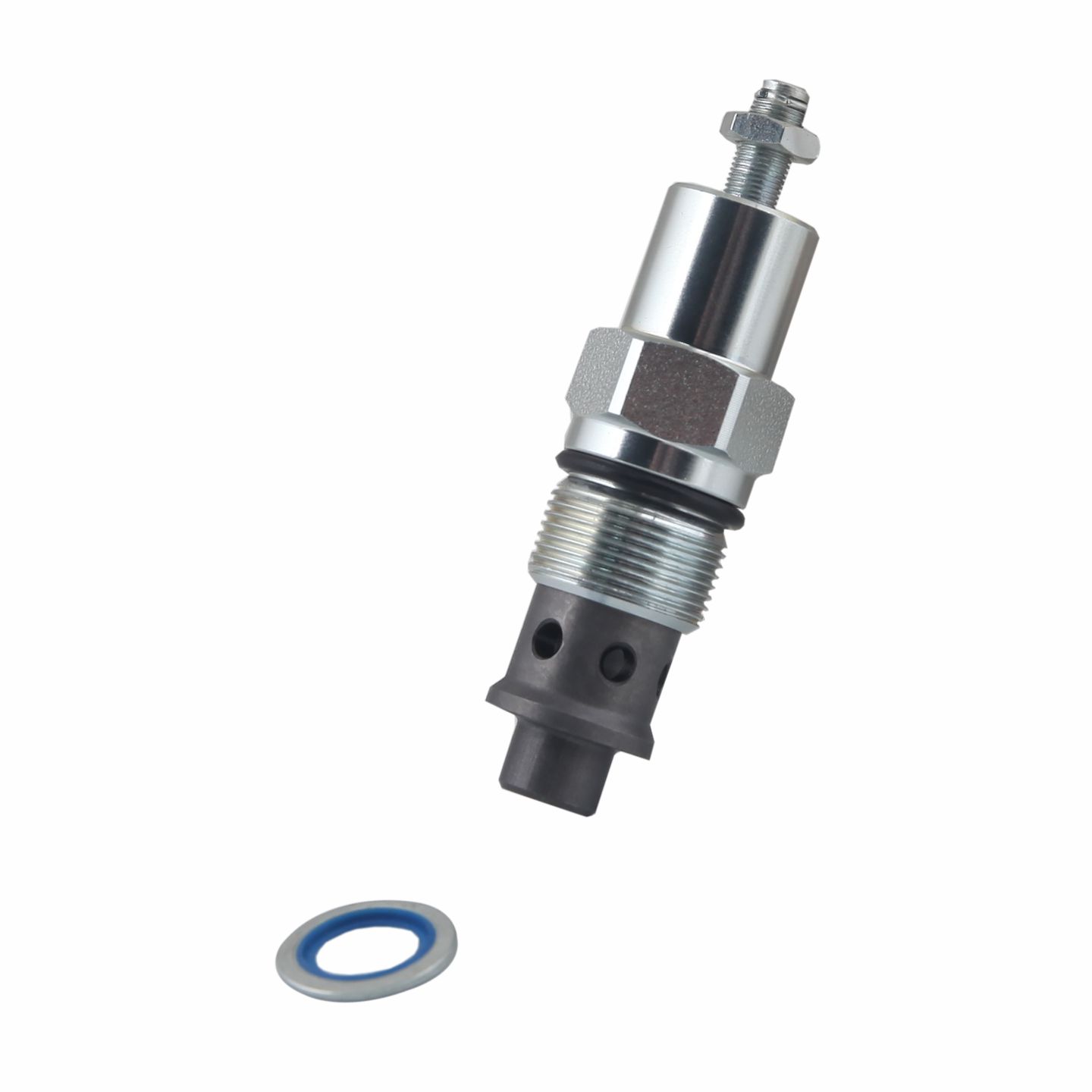

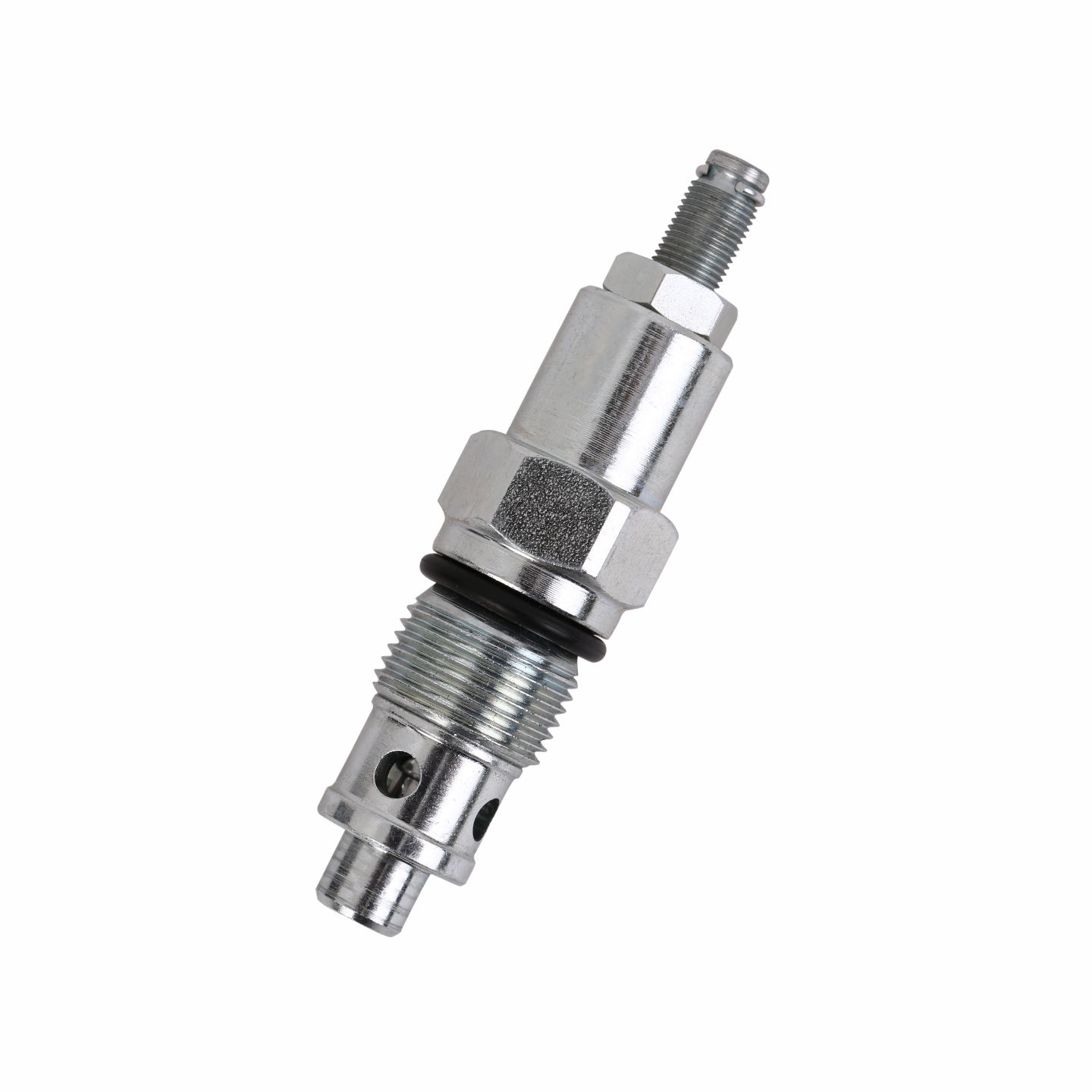

PHOTOS
