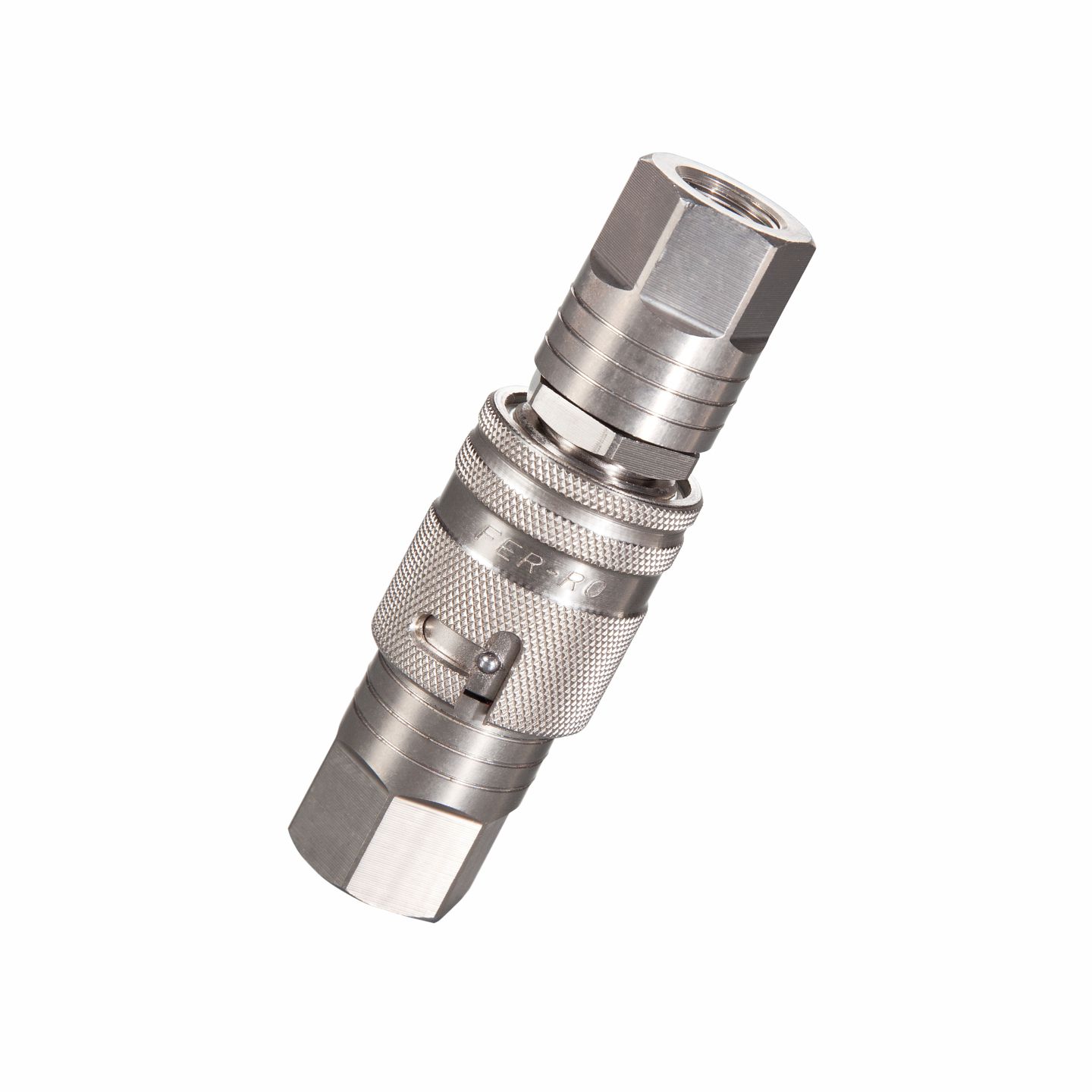

HP3000 Series Hydraulic 3000 Bar Ultra High Pressure Quick Couplings are specailly designed for extreme high pressure applications.

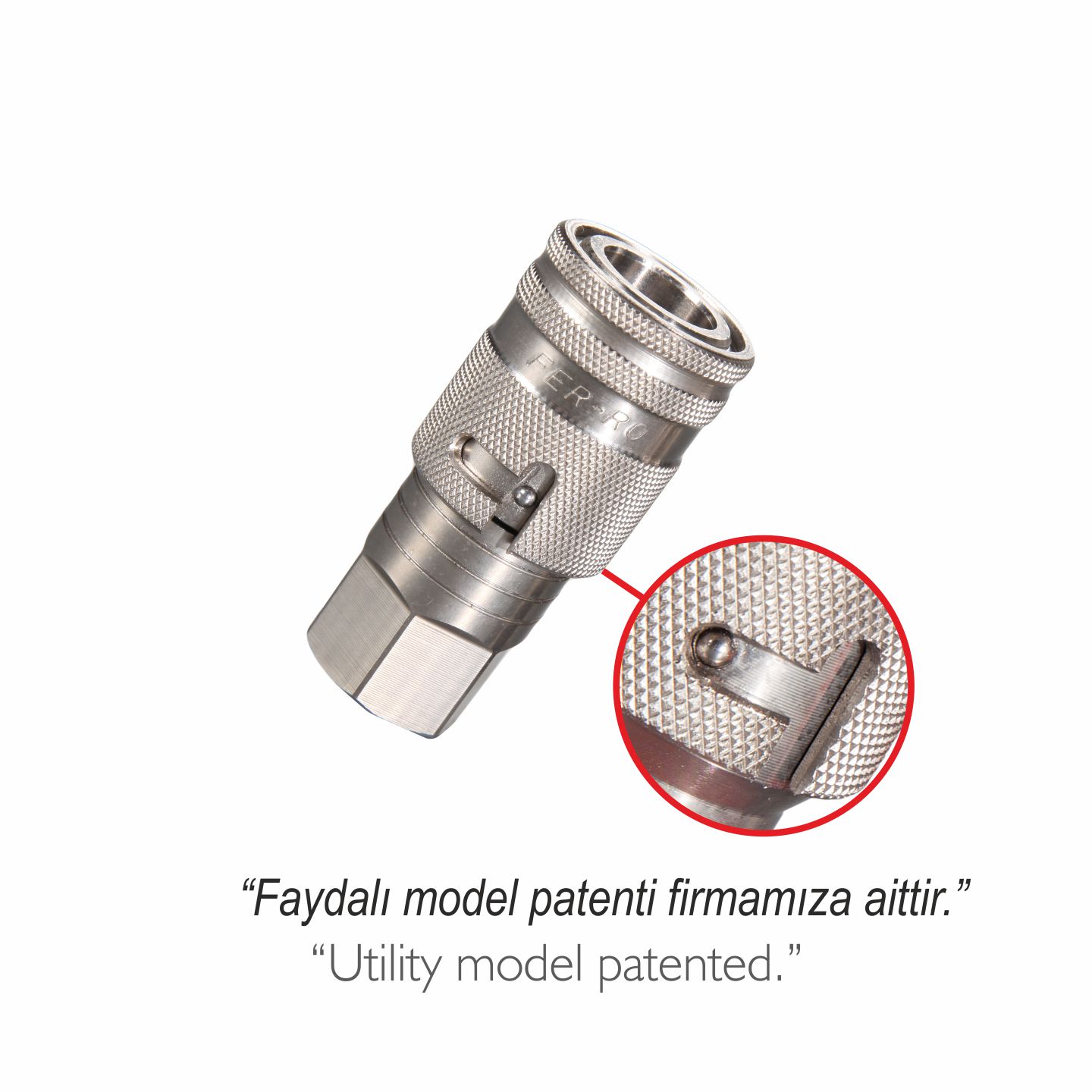

HP3000 Series of Couplings have a patented locking system on the sleve to prevent accidental disconnection.
| Shut-off System | Poppet Valve |
| Material | High grade carbon steel |
| Thread Size | Metric |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Heat Treatment | Through Hardening |
| Connection System | Pulling back the sleeve & Screw-on system |
| Disconnection System | Pulling back the sleeve & Screw-on system |
| Connection Under Pressure | Not Allowed |
| Disconnection Under Pressure | Not Allowed |
| Upon Request | VITON & High temperature resistant special spring (-30 °C & +225 °C) |
| Applications | Hydraulic high pressure pumps and cylinders, resque equipments, |
| cable cutters, bolt tensioning and torque tools, clamping tools. |

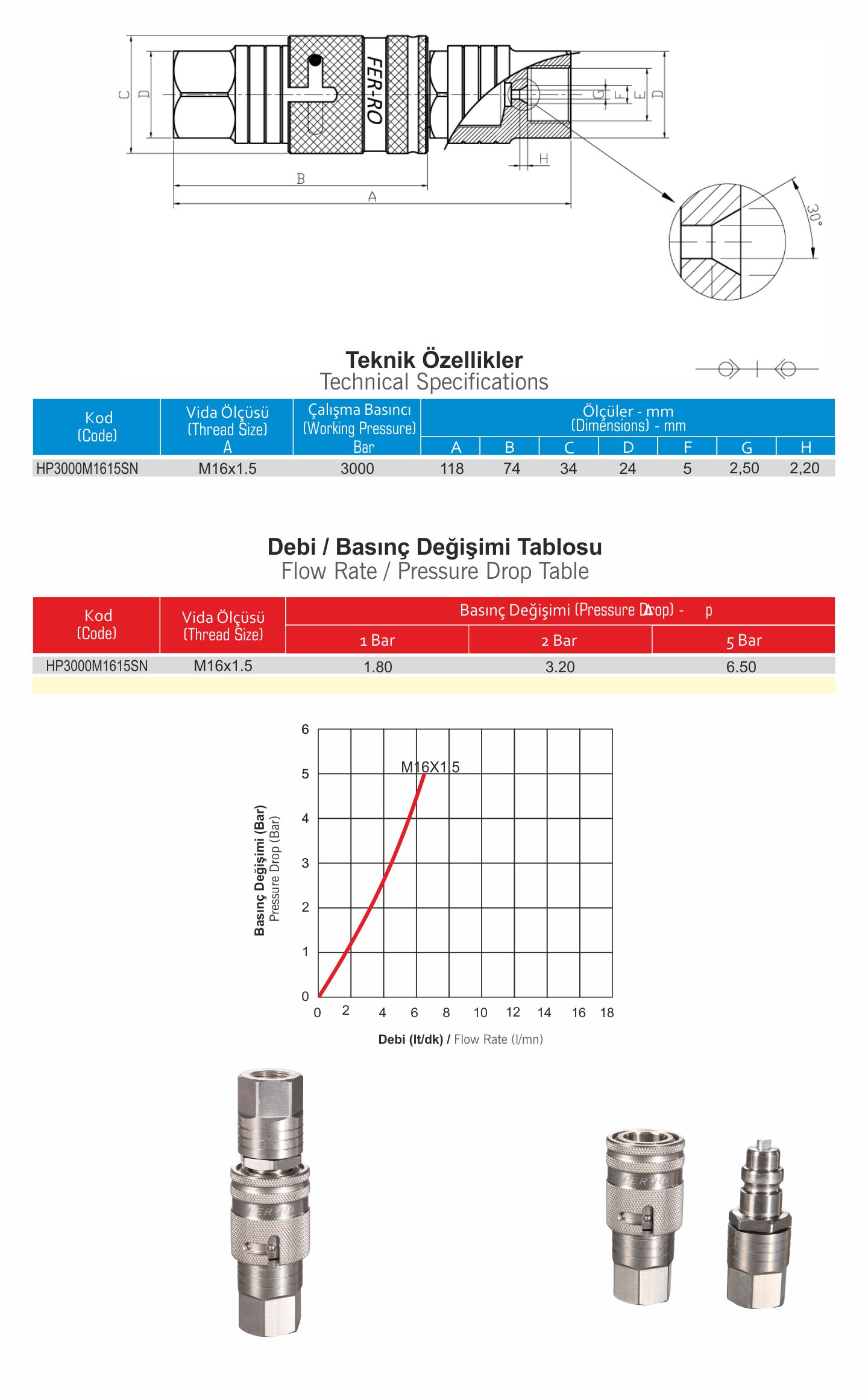

TECHNICAL DATA

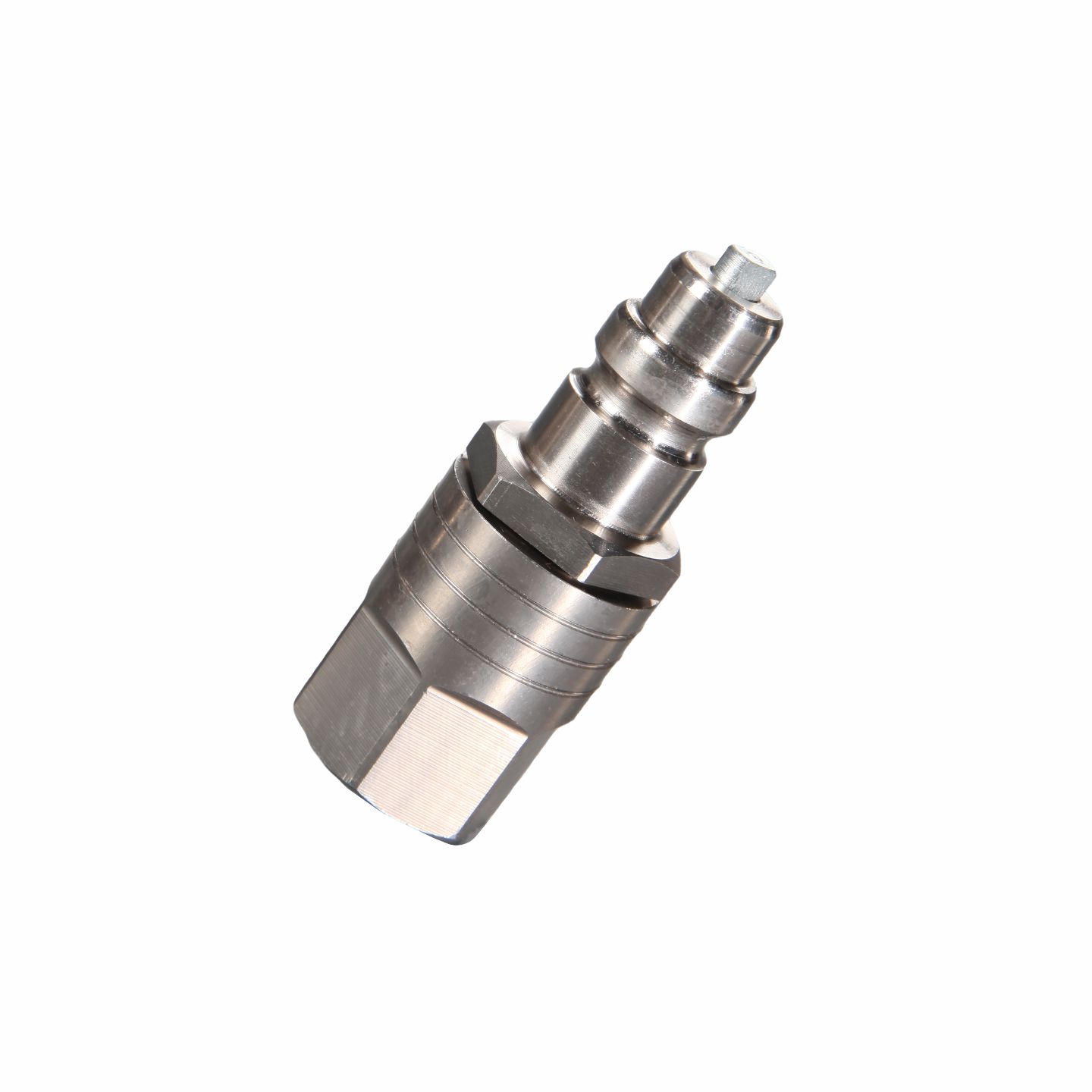

PHOTOS
