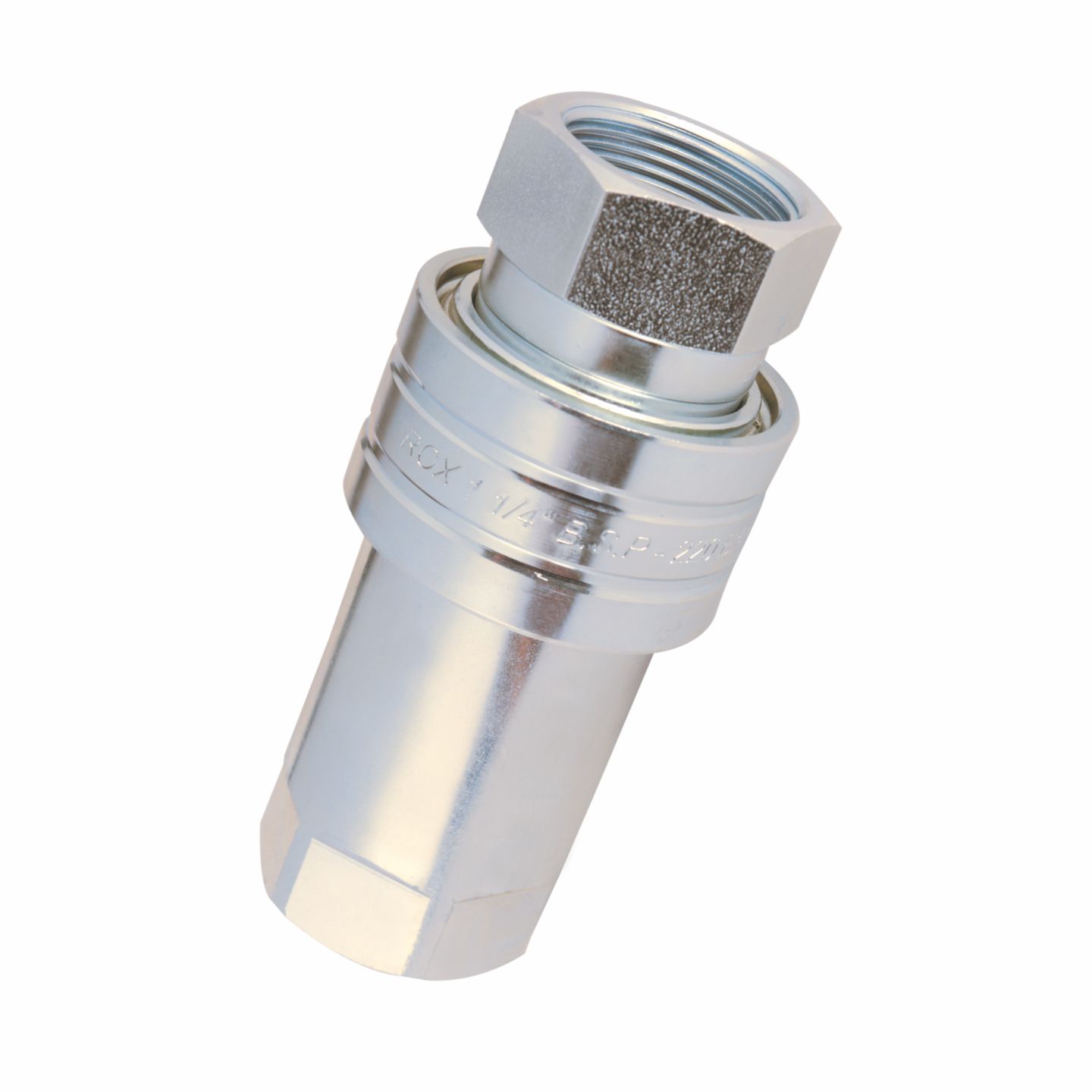

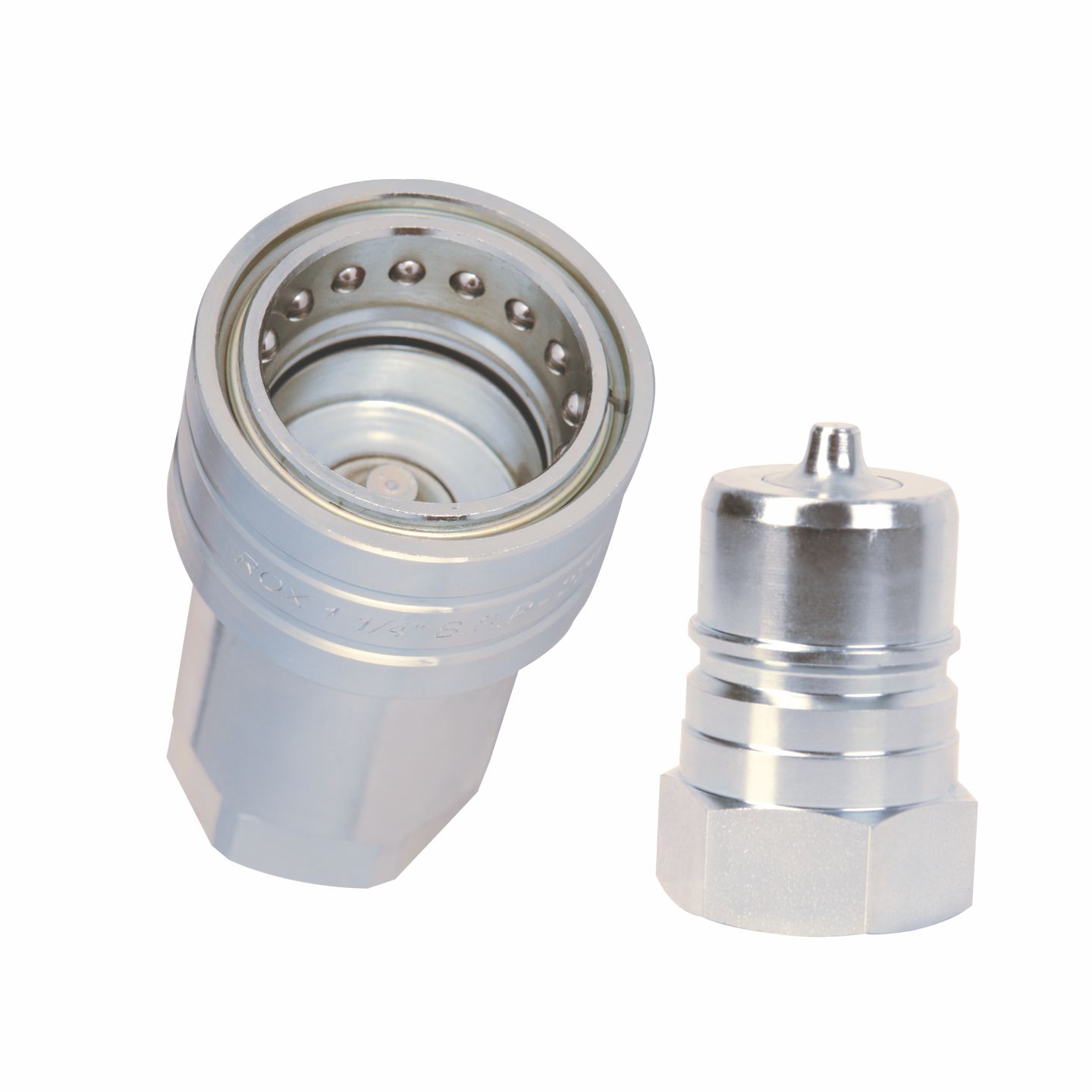

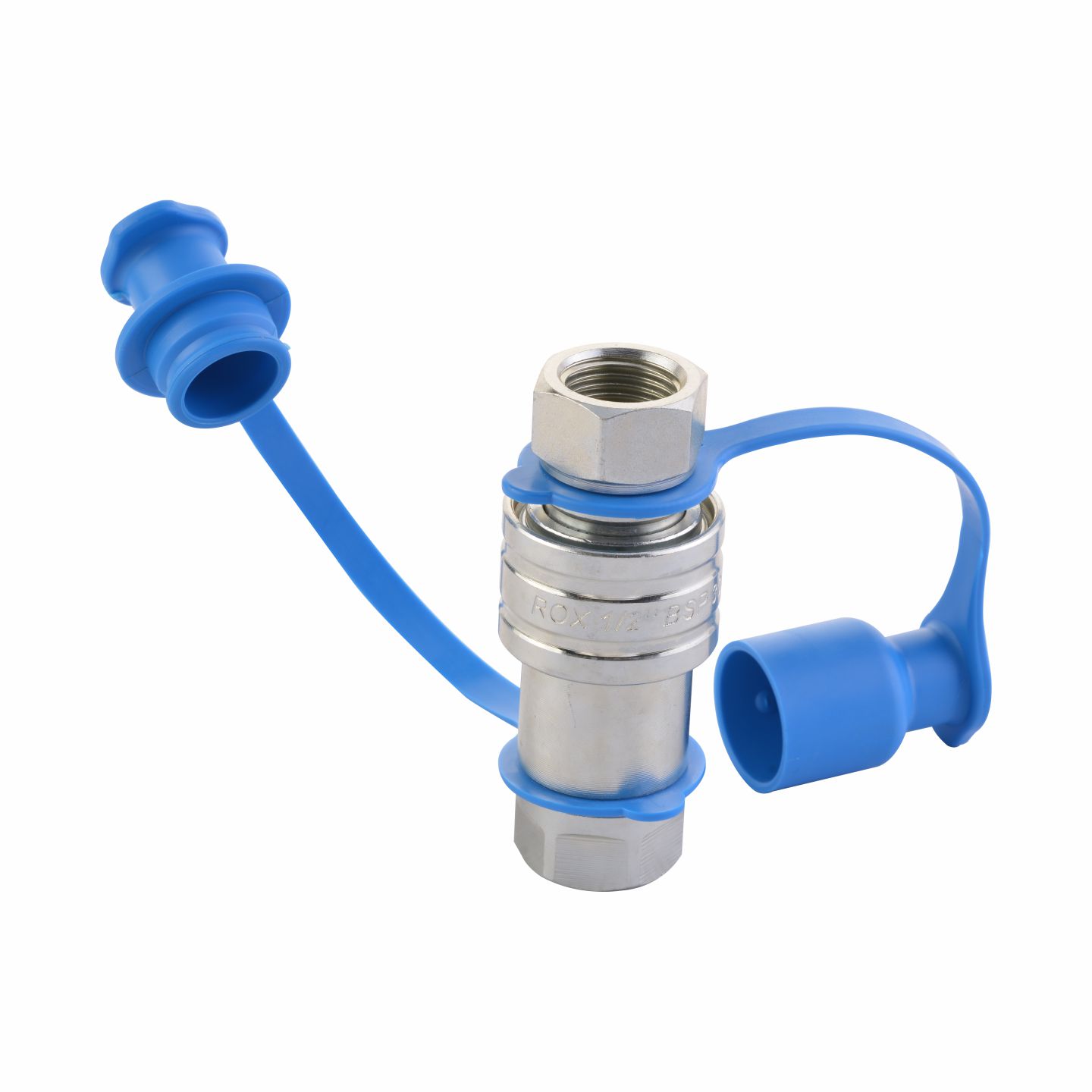

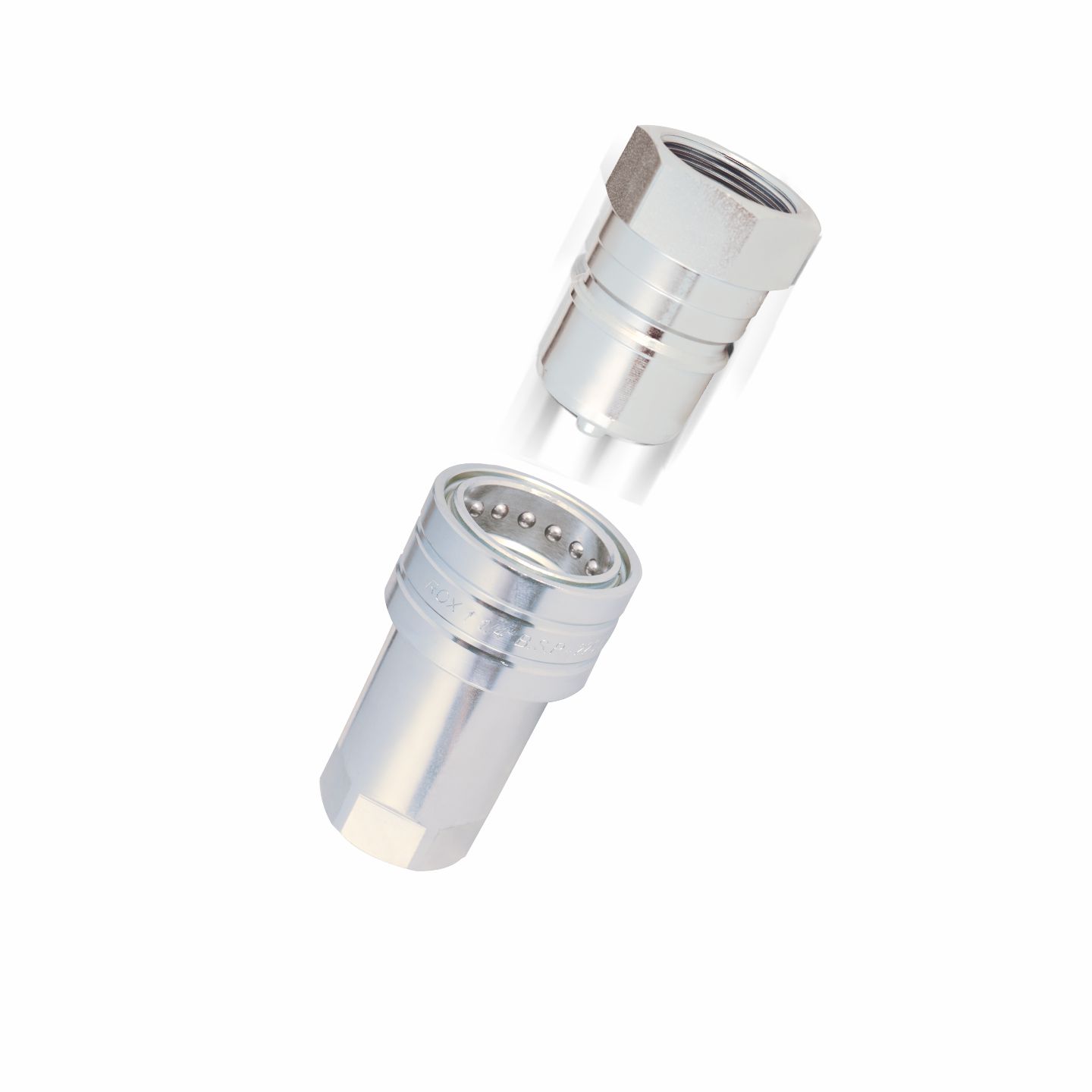

RX Series Quick Couplings are used in many agricultural fields.
Male nipples of RX Series are hardened by heat treatment.
| Interchangeability | ISO 7241-A |
| Shut-off System | Poppet Valve |
| Material | Carbon Steel |
| Thread Size | BSP |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Heat Treatment | Male nipple |
| Connection System | Pulling back the sleeve |
| Disconnection System | Pulling back the sleeve |
| Connection Under Pressure | Not Allowed |
| Disconnection Under Pressure | Not Allowed |
| Applications | Tractors, Agricultural machines and semi-trailers |

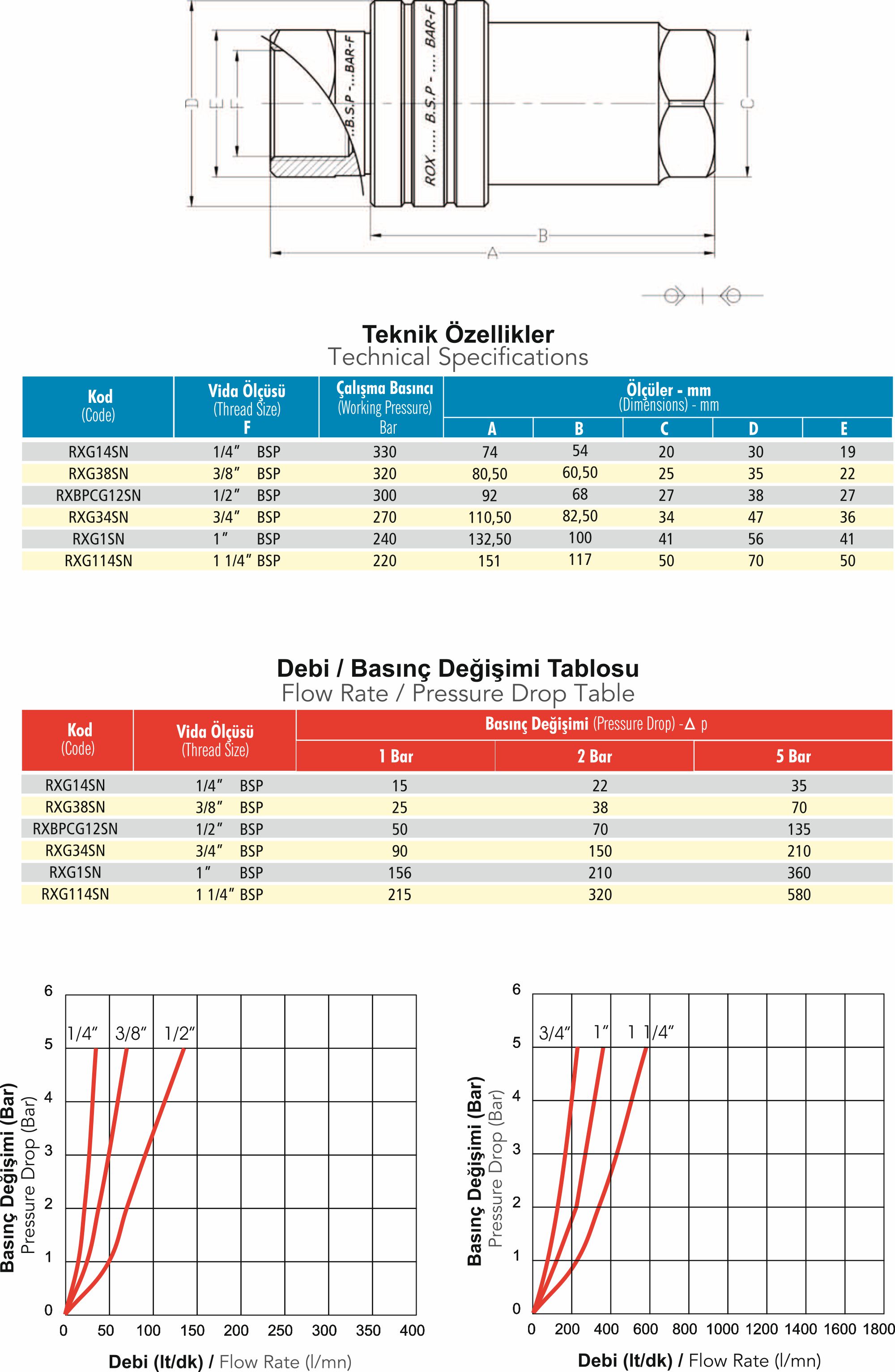

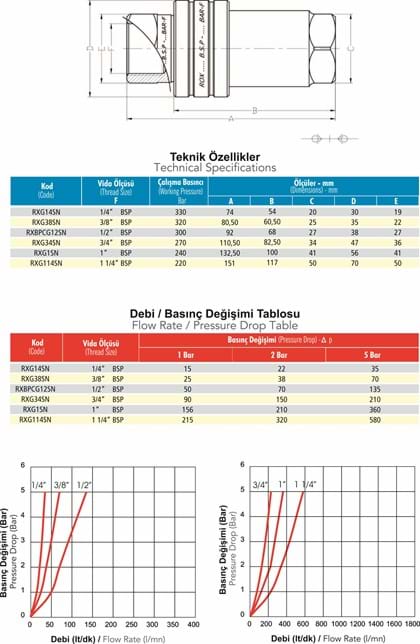

TECHNICAL DATA
PHOTOS
