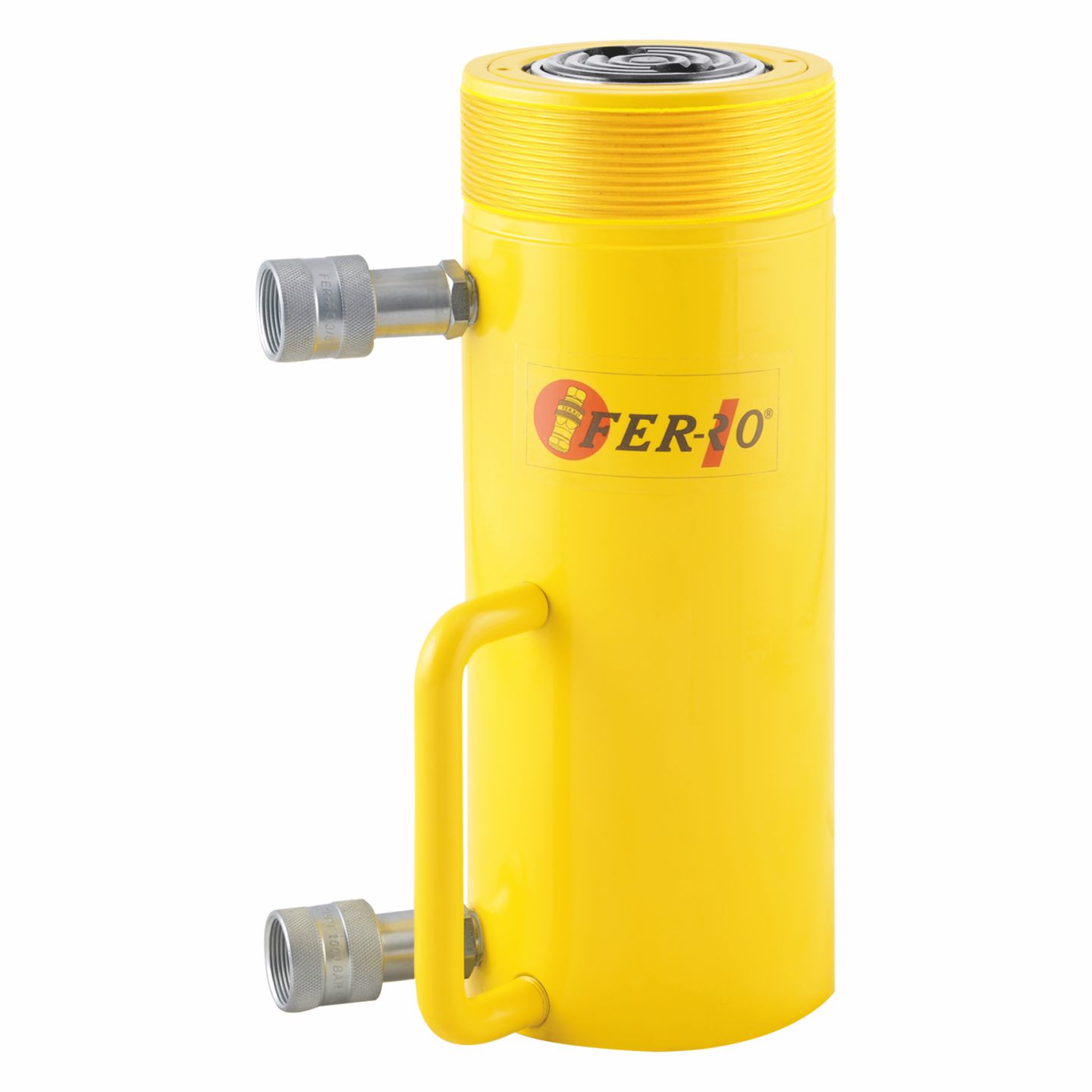

- CRSSD Series double acting cylinders are specailly designed for high cycle industrial use
- Double acting operation for fast return
- The exclusive Guide Ring design absorbs eccentric loading and reduces wear.
- Collar threads, piston threads and base mounting holes enable easy fixturing (on most models)
- Hardened steel cylinder and piston
- Corrosion resistant & durable painting
- Double-acting
- Hardened removable grooved saddle
- Piston wiper reduces contamination and extends cylinder life
- HP700N38FN (3/8" NPTF 700 Bar) high pressure coupler and dust cap included on all models

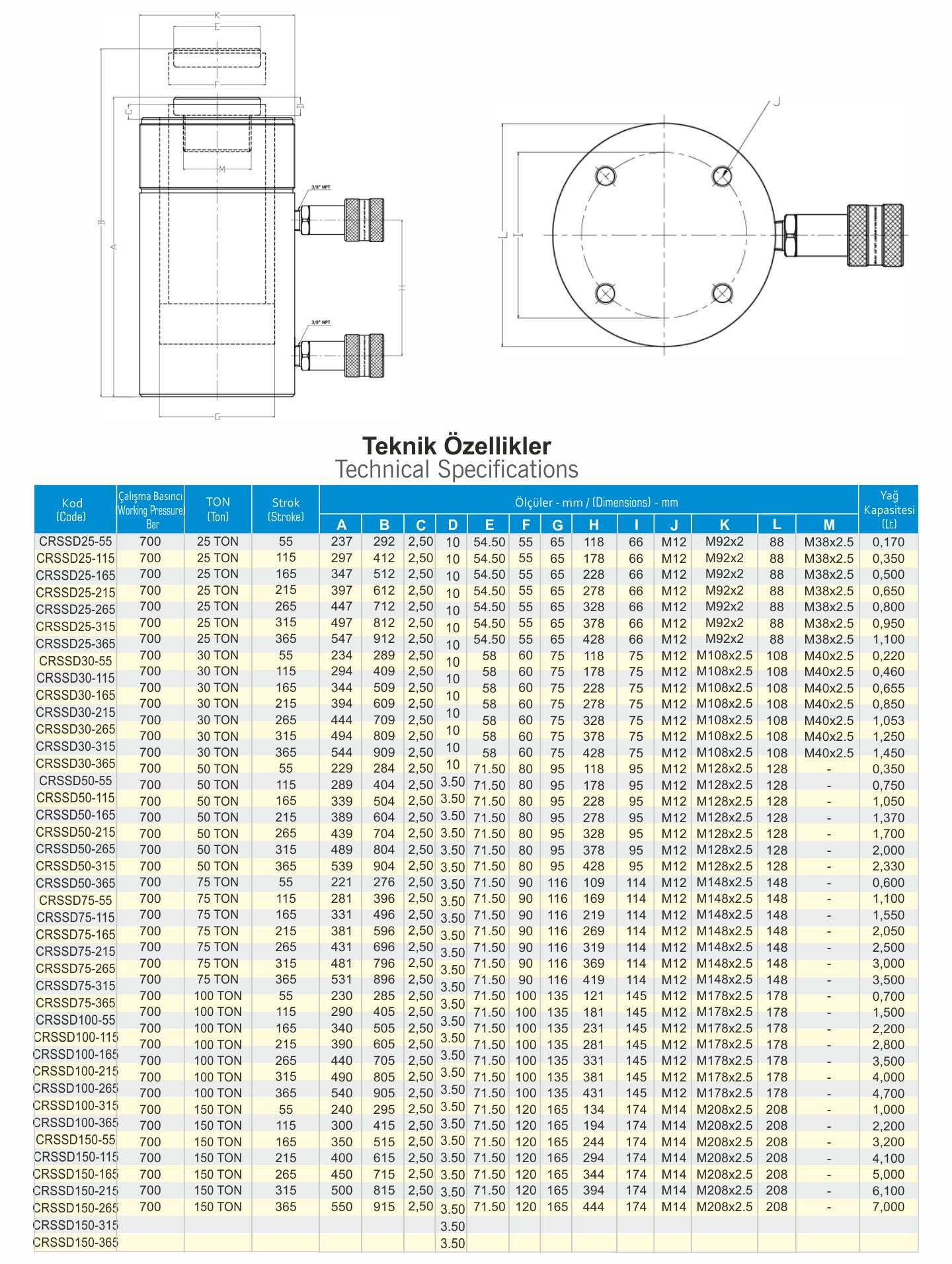

TECHNICAL DATA
PHOTOS
